Ford Truck
>>
2012
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

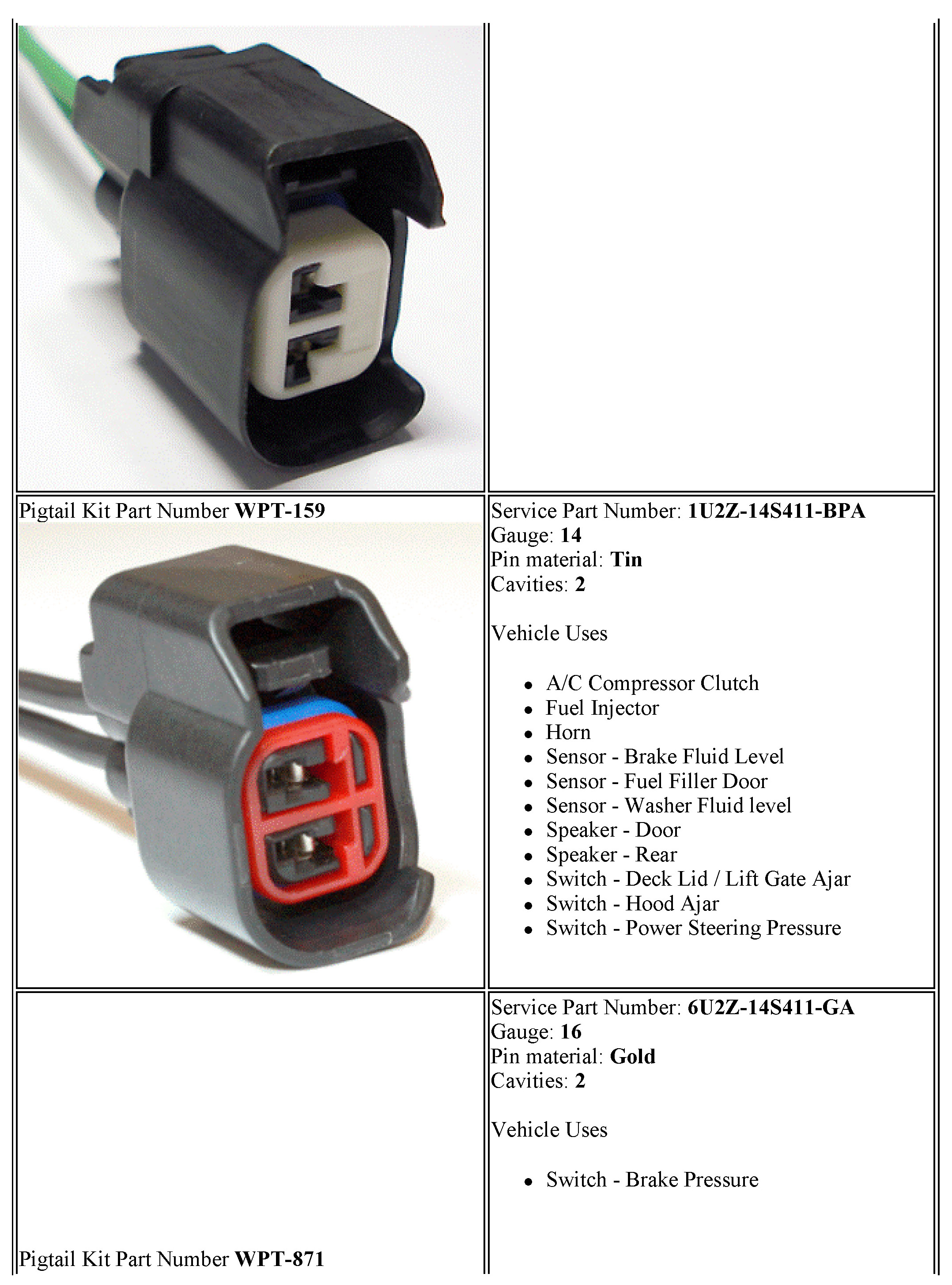

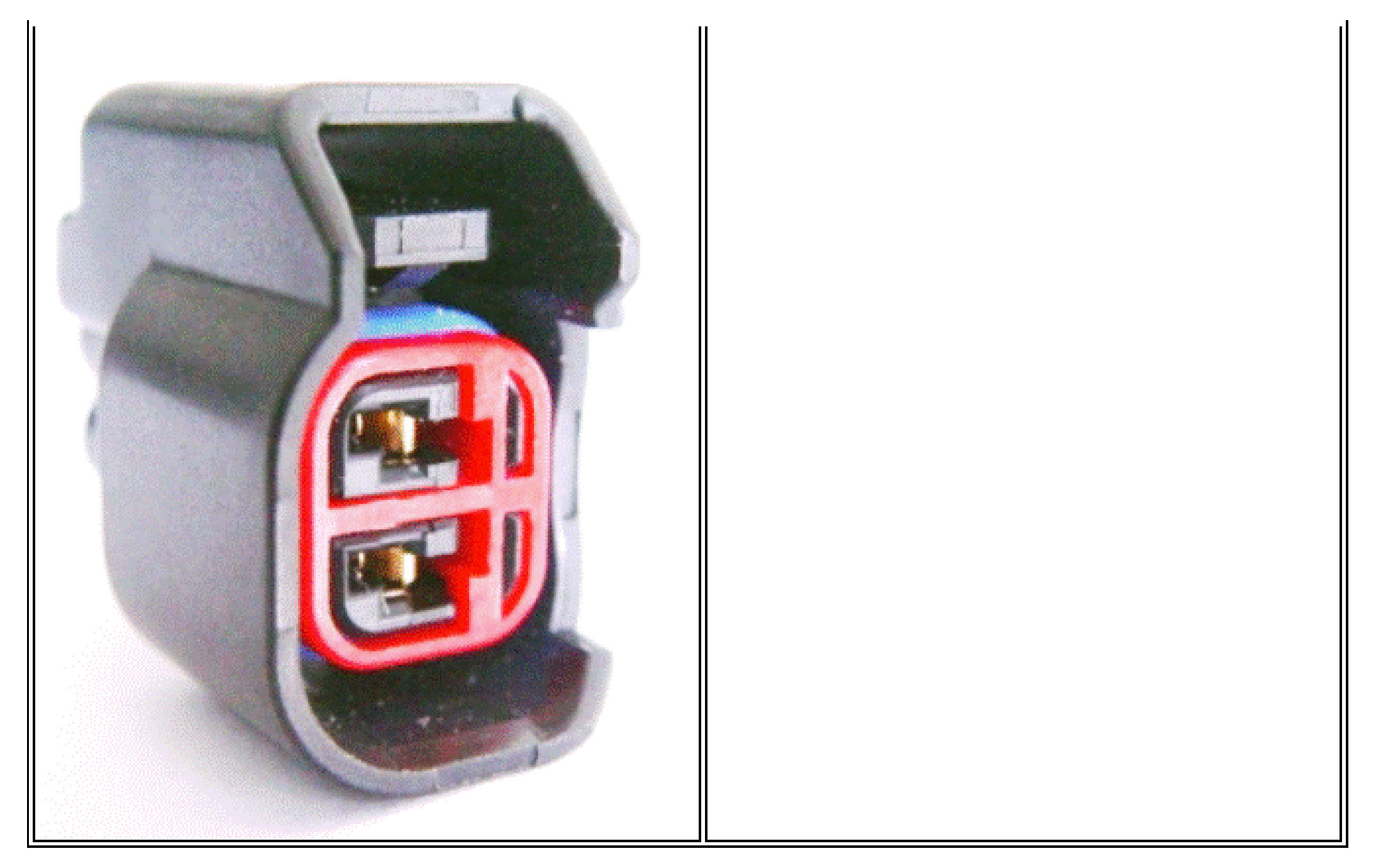

Fuel Injector
>>

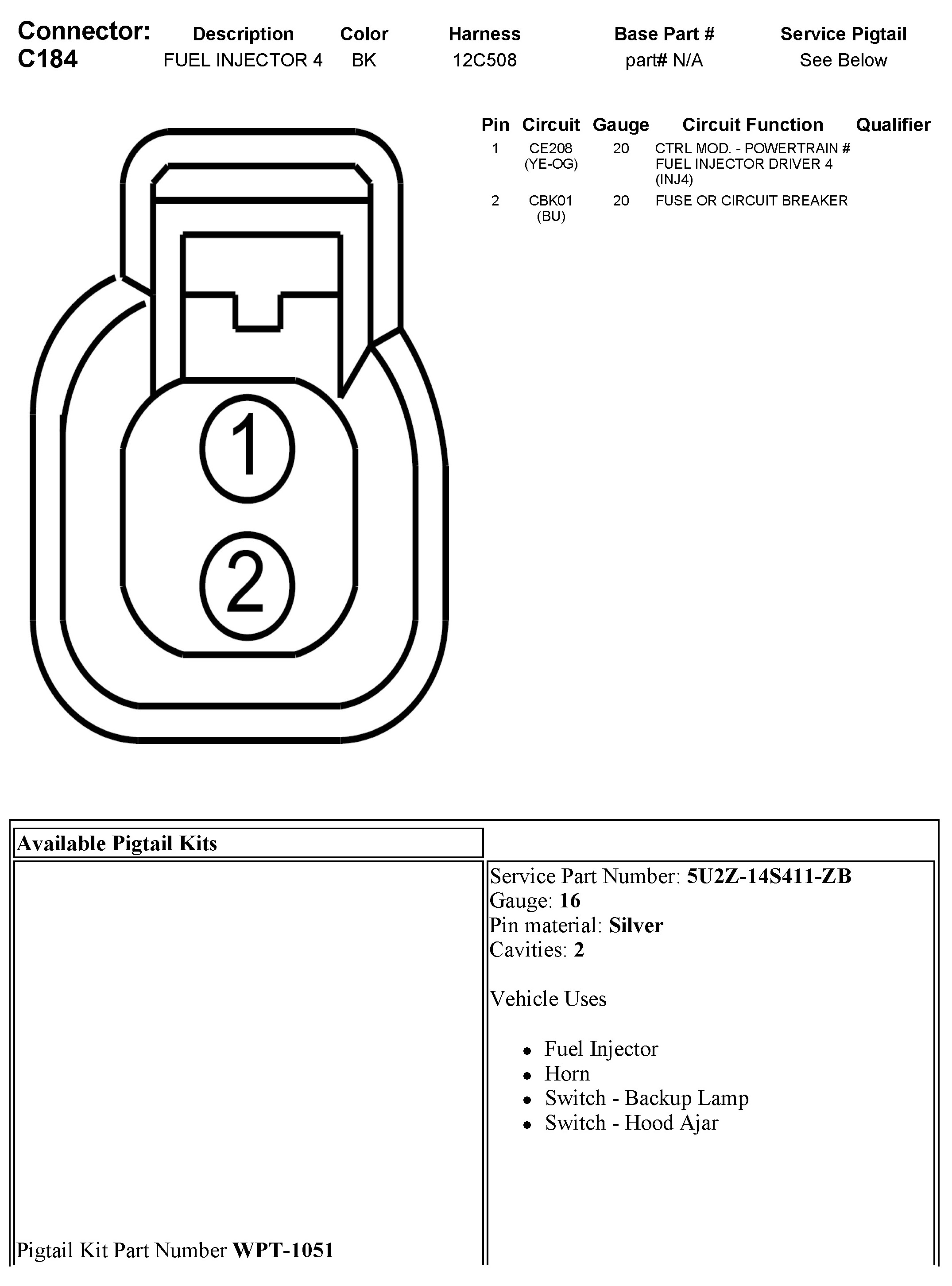

C184 Fuel Injector 4
C184 Fuel Injector 4
