Home
>>
Ford Truck
>>
2012
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Injector
>>

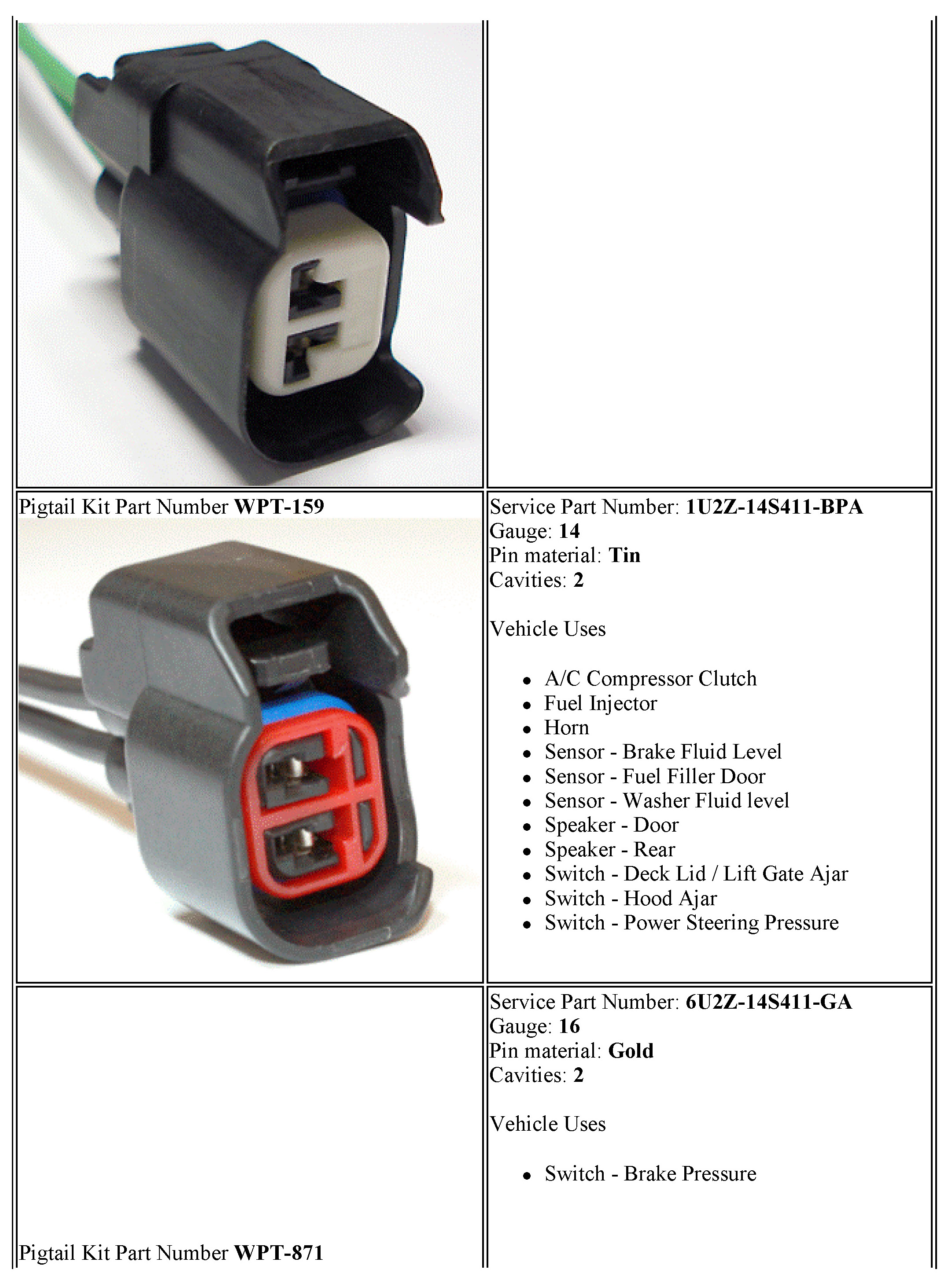

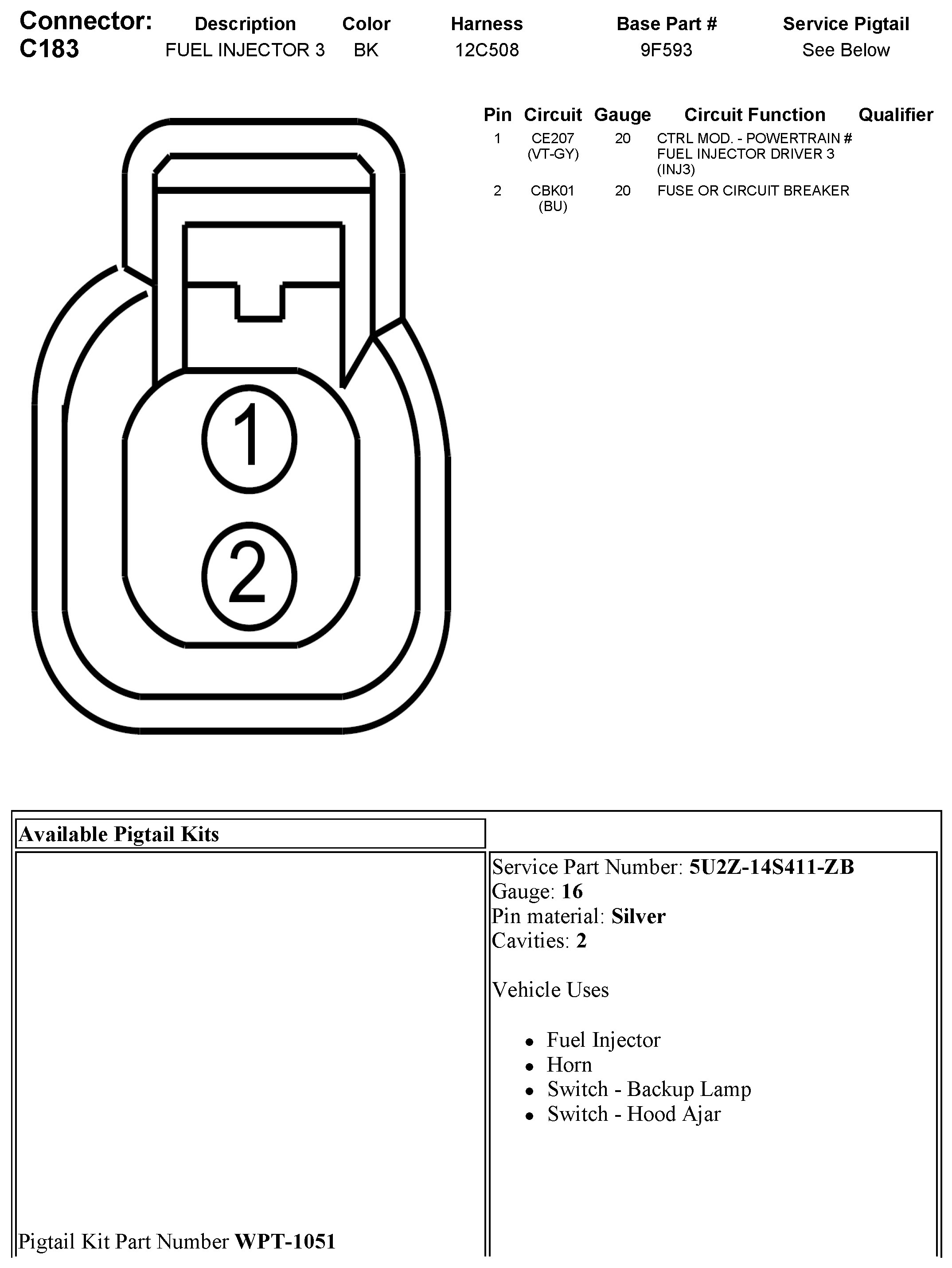

C183 Fuel Injector 3
C183 Fuel Injector 3
