Rear Door Latch - Upper, LH

Rear Door Latch - Upper, LH










1. Remove the left rear door trim panel.

2. Open the clip and disconnect the left rear door upper latch cable from the remote control.

3. NOTE: The draw cord is used to aid the installation of the latch. It is used to pull the latch back up into the door.
Attach a draw cord to the upper door latch.

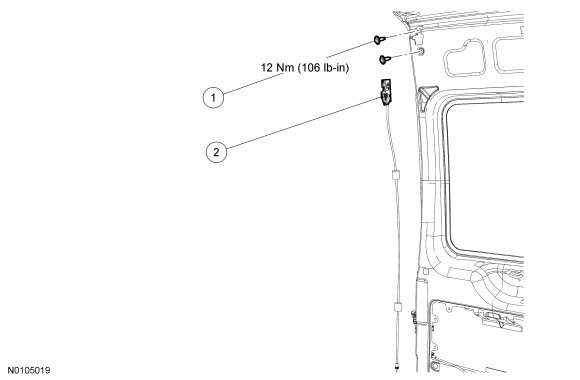

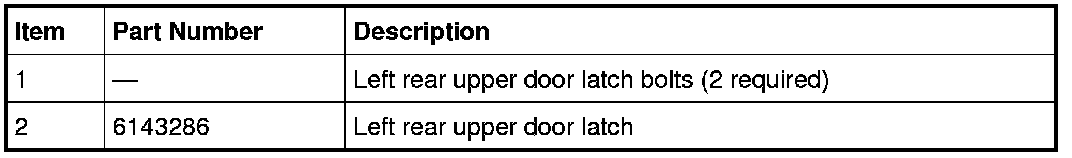

4. Remove the 2 left rear door upper latch bolts.
- To install, tighten to 12 Nm (106 lb-in).


5. Lower the left rear door upper latch into the door and remove.

6. To install, reverse the removal procedure.
