Home
>>
Ford Truck
>>
2012
>>
Flex AWD V6-3.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Electronic Throttle Actuator
>>
Diagrams
>>

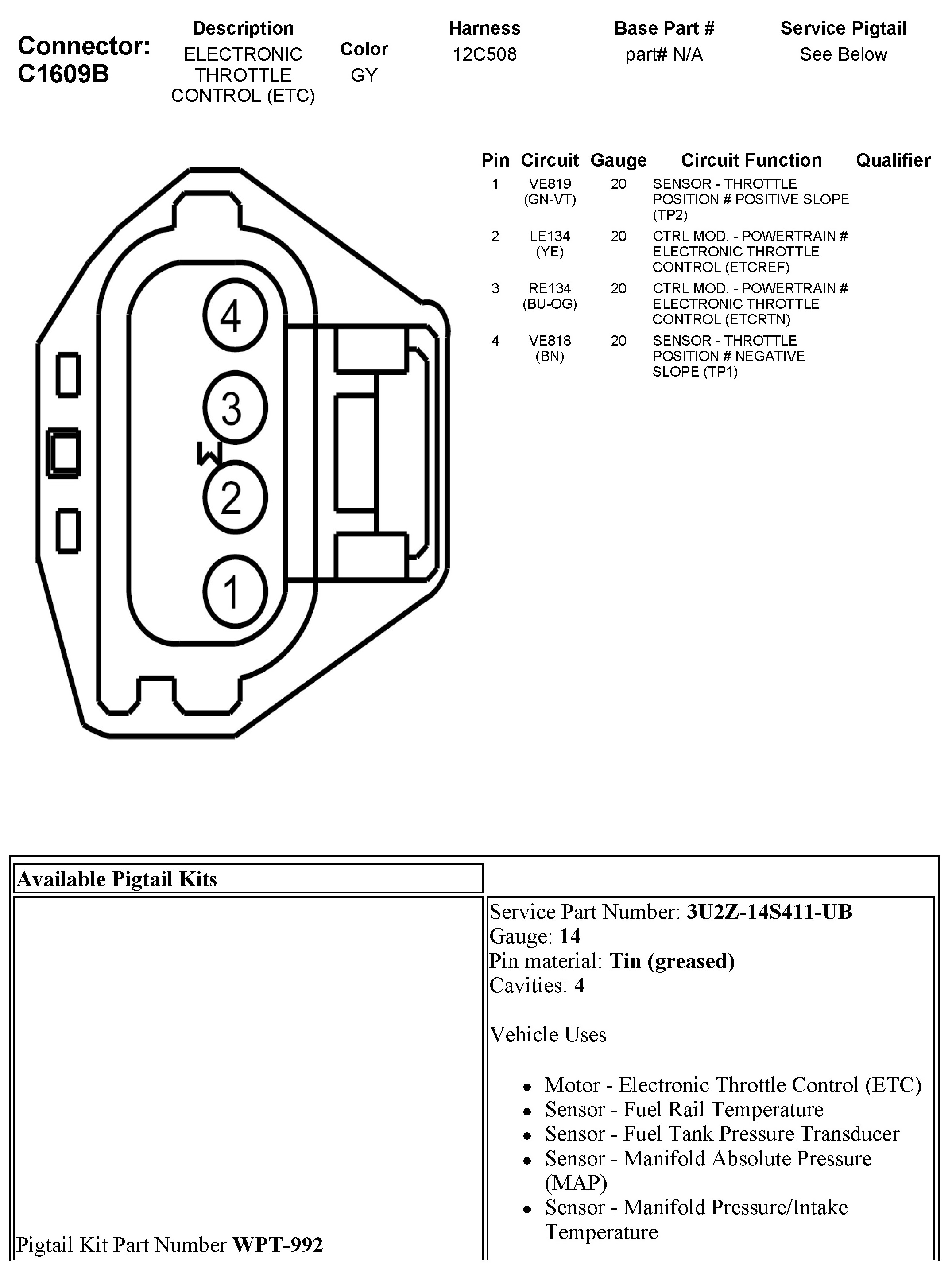

C1609B Electronic Throttle Control (ETC)
C1609B Electronic Throttle Control (ETC)
