Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
Flex AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Hazard Sensor
>>

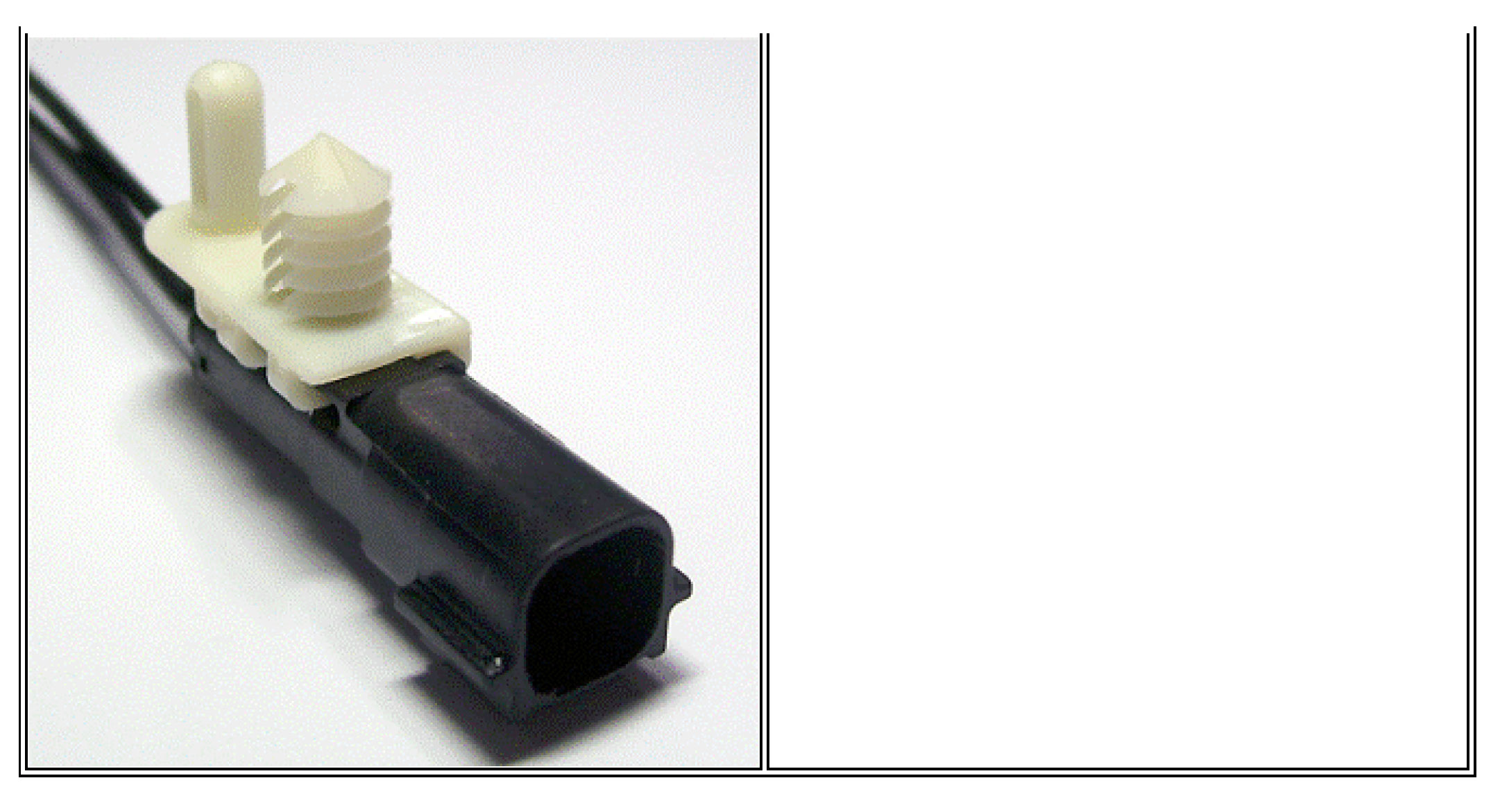

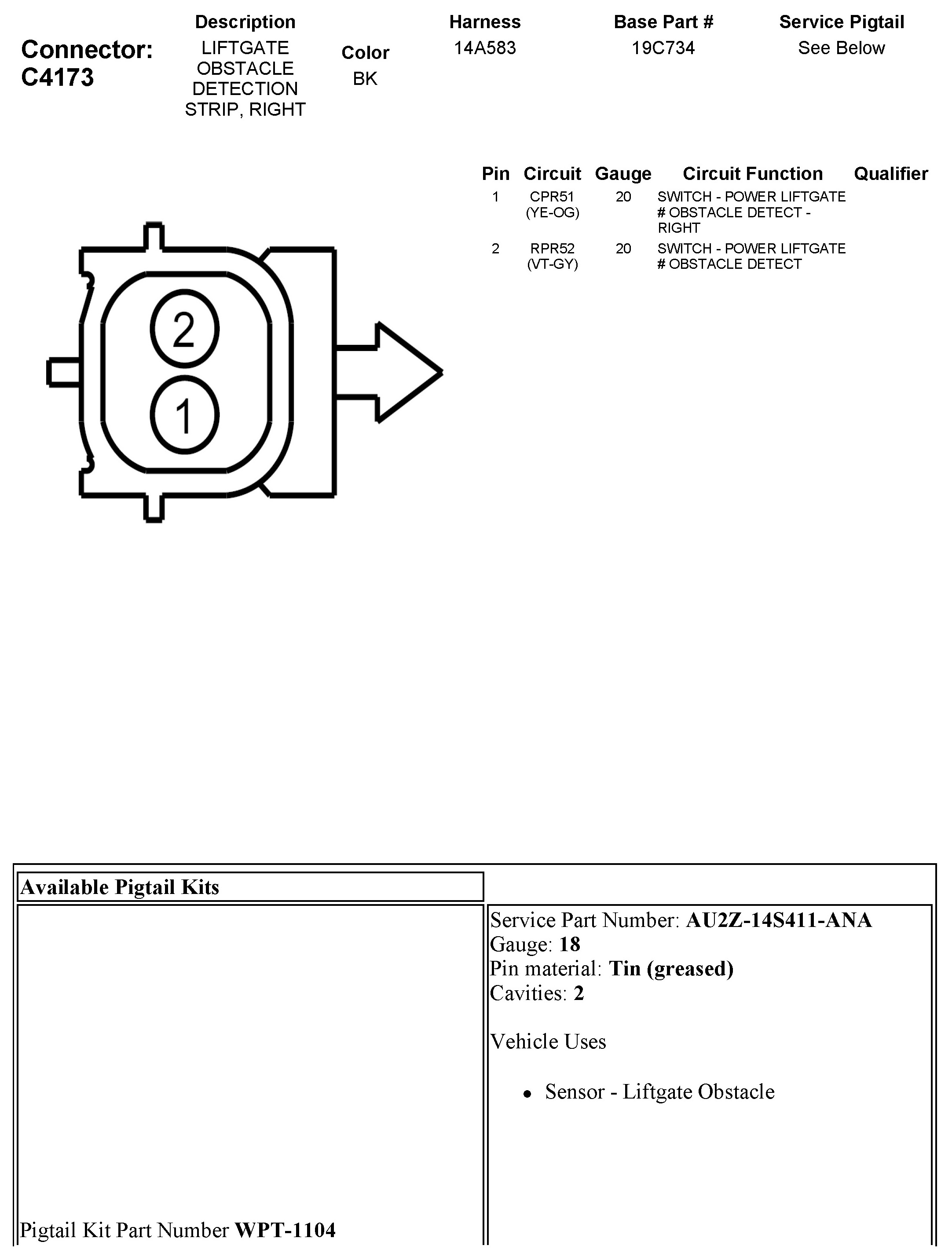

C4173 Liftgate Obstacle Detection Strip, Right
C4173 Liftgate Obstacle Detection Strip, Right
