Ford Truck
>>
2012
>>
Flex AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Hazard Sensor
>>

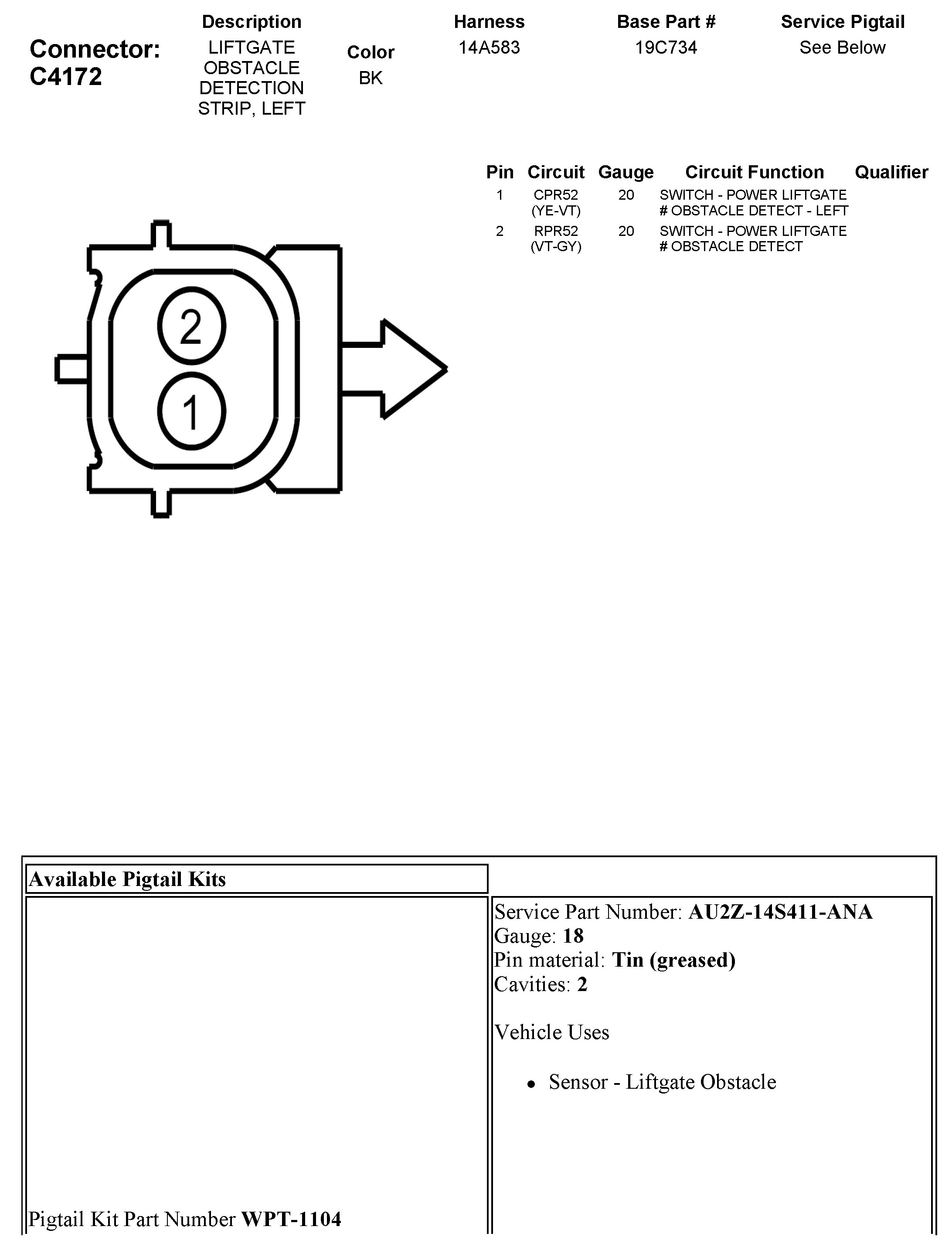

C4172 Liftgate Obstacle Detection Strip, Left
C4172 Liftgate Obstacle Detection Strip, Left
