Home
>>
Ford Truck
>>
2012
>>
Flex AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cabin Temperature Sensor / Switch
>>

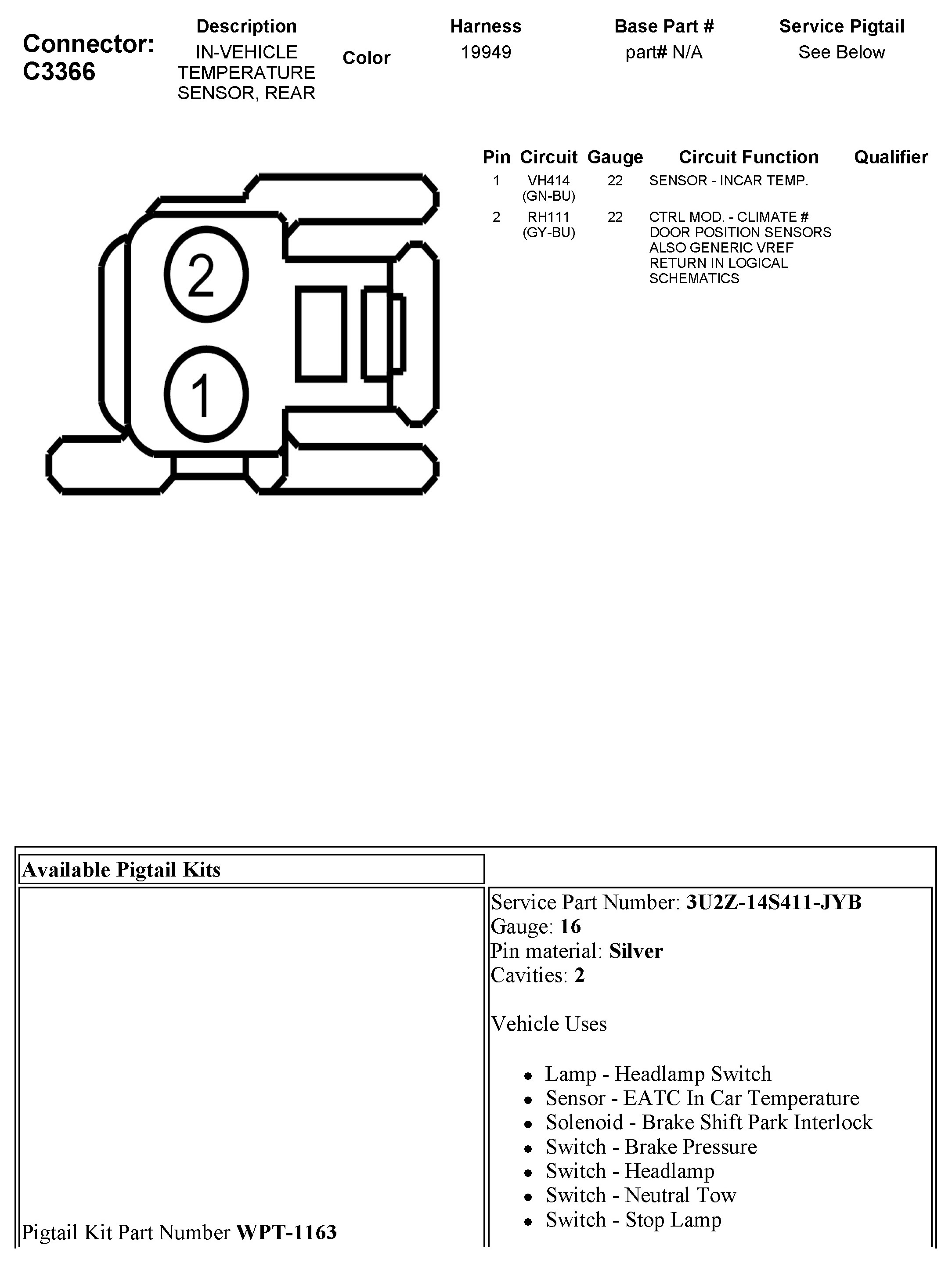

C3366 In-Vehicle Temperature Sensor, Rear
C3366 In-Vehicle Temperature Sensor, Rear
