Entertainment System Control Panel: Service and Repair

Rear Entertainment Module (RETM)

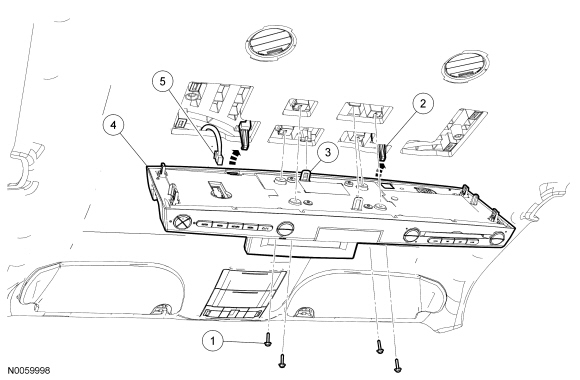

Removal

NOTE: Module configuration is required when a new Rear Entertainment Module (RETM) is being installed.

1. Upload the RETM (Rear Entertainment Module) configuration to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Information Bus. Programming and Relearning

2. NOTE: Open the RETM (Rear Entertainment Module) display.
Remove the 4 screws.

3. Remove the RETM (Rear Entertainment Module).
- Pull down on the sides of the RETM (Rear Entertainment Module) to disengage the clips from the bracket.

- Using a suitable tool, push the rear most U-hook forward and release the U-hooks.

- Hang the RETM (Rear Entertainment Module) on the J-hooks and disconnect the electrical connector.

- Remove the RETM (Rear Entertainment Module) from the J-hooks.


Installation

1. Hang the RETM (Rear Entertainment Module) on the J-hooks.

2. Connect the electrical connector.

3. Remove the RETM (Rear Entertainment Module) from the J-hooks.

4. NOTE: Tilt the RETM (Rear Entertainment Module), as necessary, to align it correctly.
Align the left side guide pin with the left side locating hole.

5. Lift up the right side of the RETM (Rear Entertainment Module) and engage the U-hooks.

6. Install the 4 screws.

7. Push on the left and right sides of the RETM (Rear Entertainment Module) to engage the clips.

8. Download the RETM (Rear Entertainment Module) configuration from the scan tool. For additional information, refer to PMI (Programmable Module Installation) in Information Bus. Programming and Relearning
