Blower Motor: Service and Repair

Blower Motor









Removal and Installation

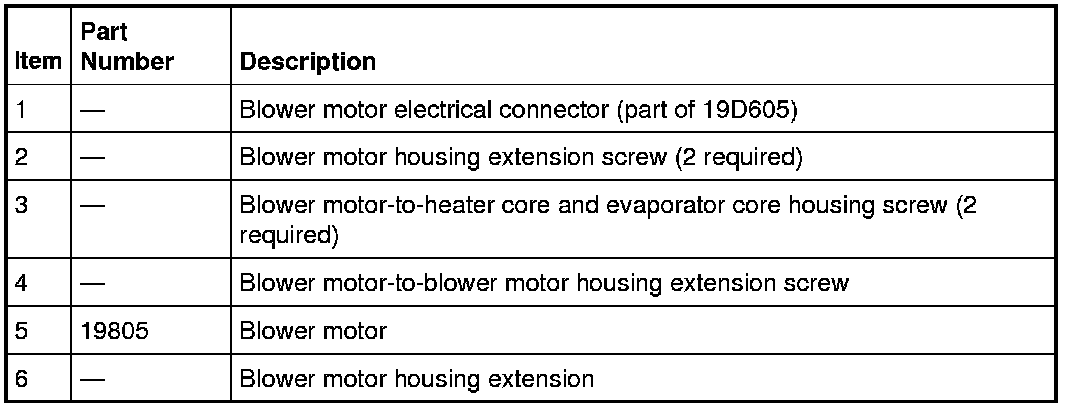

1. Remove the Body Control Module (BCM).

2. Disconnect the blower motor electrical connector.

3. Remove the blower motor-to-blower motor housing extension screw.

4. Remove the 2 blower motor-to-heater core and evaporator core housing screws.

5. Remove the 2 blower motor housing extension screws.

6. Remove the blower motor and blower motor housing extension.

7. To install, reverse the removal procedure.
