Ford Truck
>>
2012
>>
F 450 2WD Super Duty V10-6.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
EGR Temperature Sensor
>>

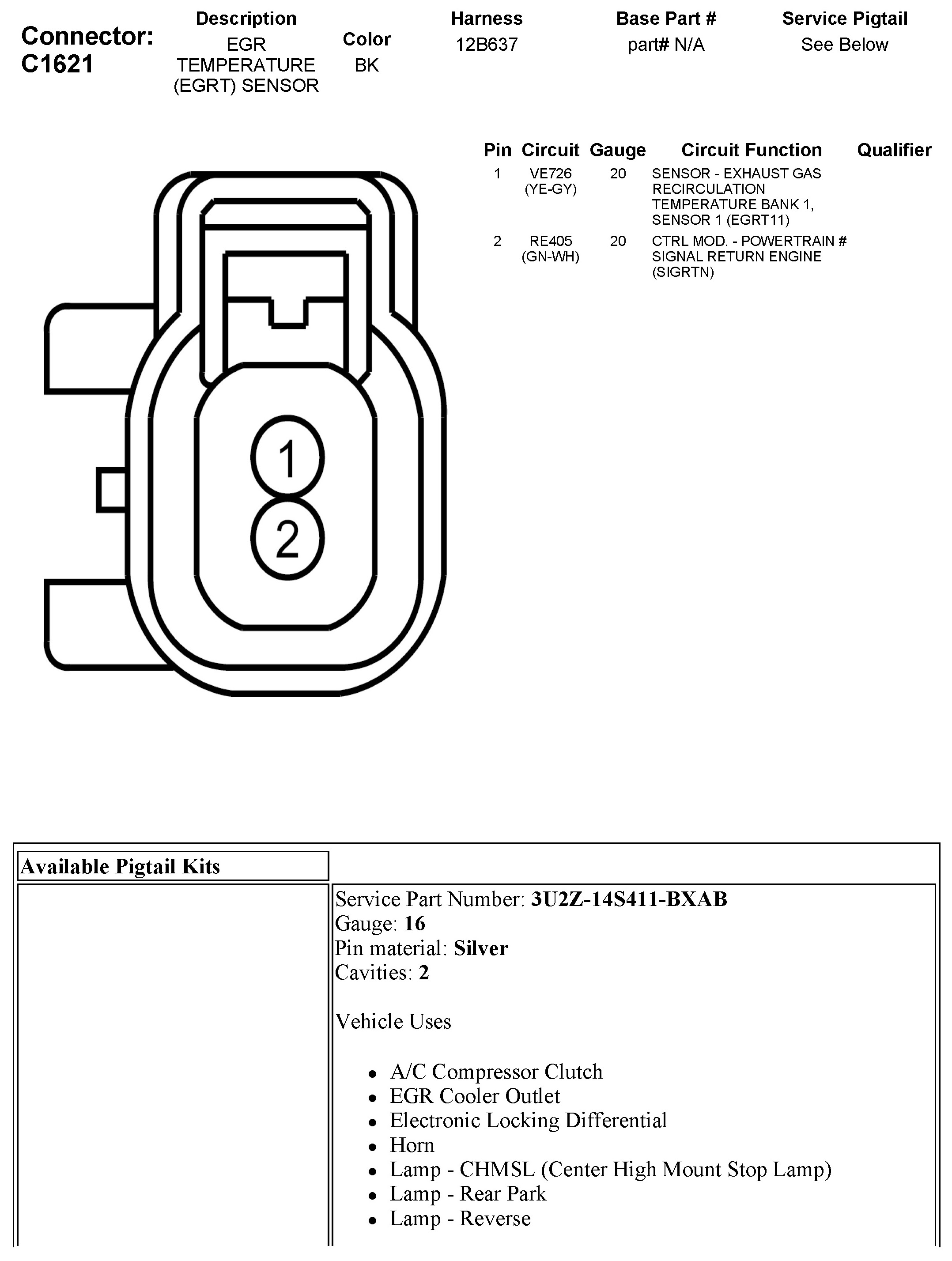

C1621 EGR Temperature (EGRT) Sensor
C1621 EGR Temperature (EGRT) Sensor
