Condenser to Evaporator Line

Condenser to Evaporator Line





Removal and Installation

All vehicles

1. Recover the refrigerant.

6.7L diesel vehicles

2. Remove the radiator grille.

3. Remove the RH fender splash shield.

All vehicles

4. NOTE: For gasoline vehicles, the condenser outlet fitting can be accessed through the RH front tow hook opening.
Remove the condenser outlet fitting nut and disconnect the fitting.

- Discard the O-ring seal and gasket seal.

- To install, tighten to 15 Nm (133 lb-in).

5. Remove the evaporator-to-compressor suction line fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.

- To install, tighten to 15 Nm (133 lb-in).

6. Remove the Thermostatic Expansion Valve (TXV) fitting nut and disconnect the fitting.
- Discard the gasket seals.

- To install, tighten to 15 Nm (133 lb-in).

7. Detach the condenser-to-evaporator line from the condenser-to-evaporator line clip.

8. Remove the condenser-to-evaporator line.

9. To install, reverse the removal procedure.
- Install new O-ring seals and gasket seals.

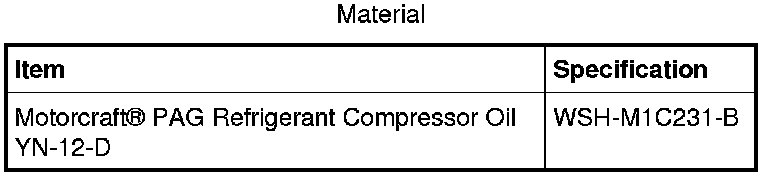

- Add the correct amount of clean PAG oil to the refrigerant system.


10. Evacuate, leak test and charge the refrigerant system.
