Ford Truck
>>
2012
>>
F 350 4WD Super Duty V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Variable Induction Control Actuator
>>

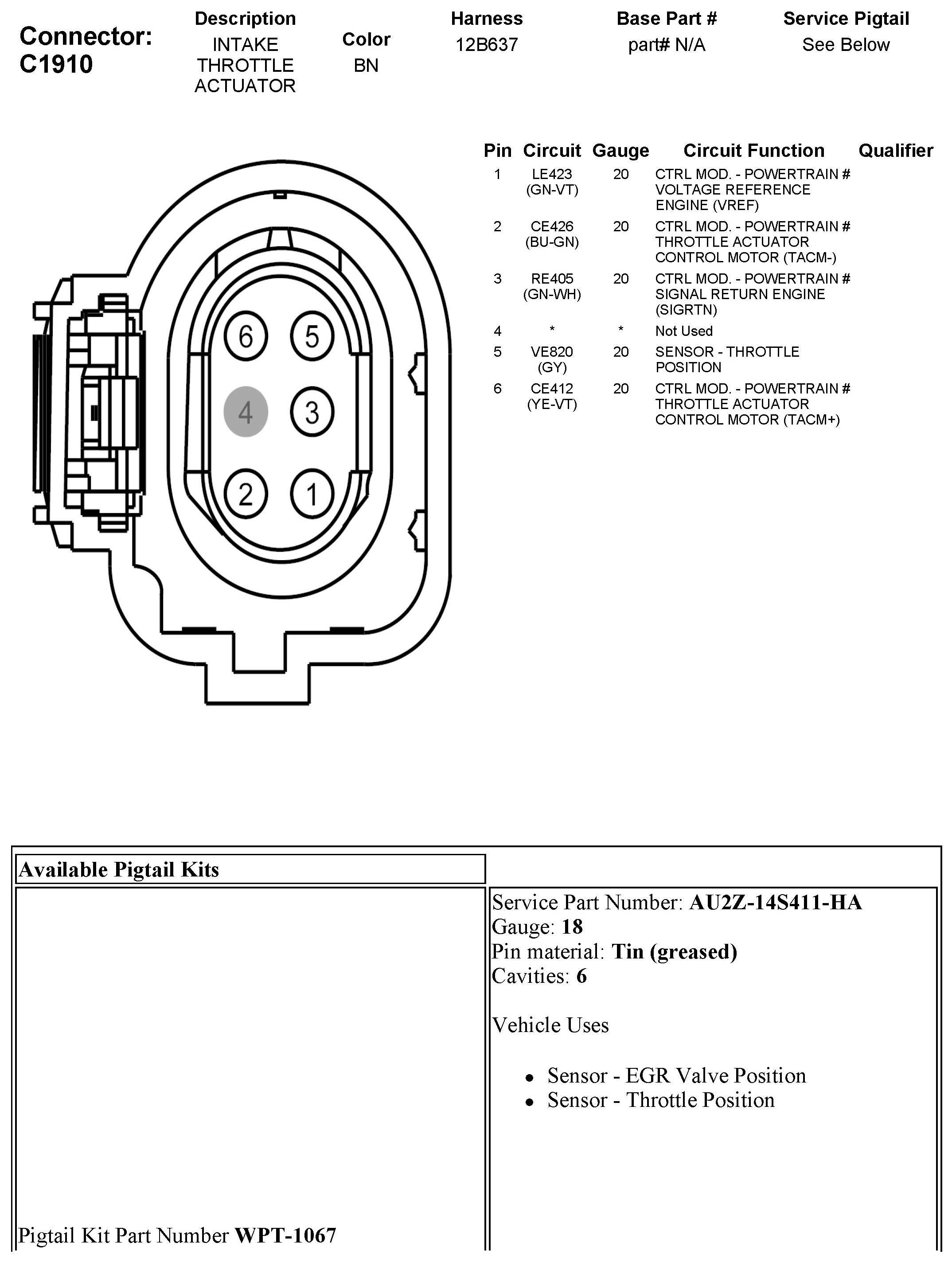

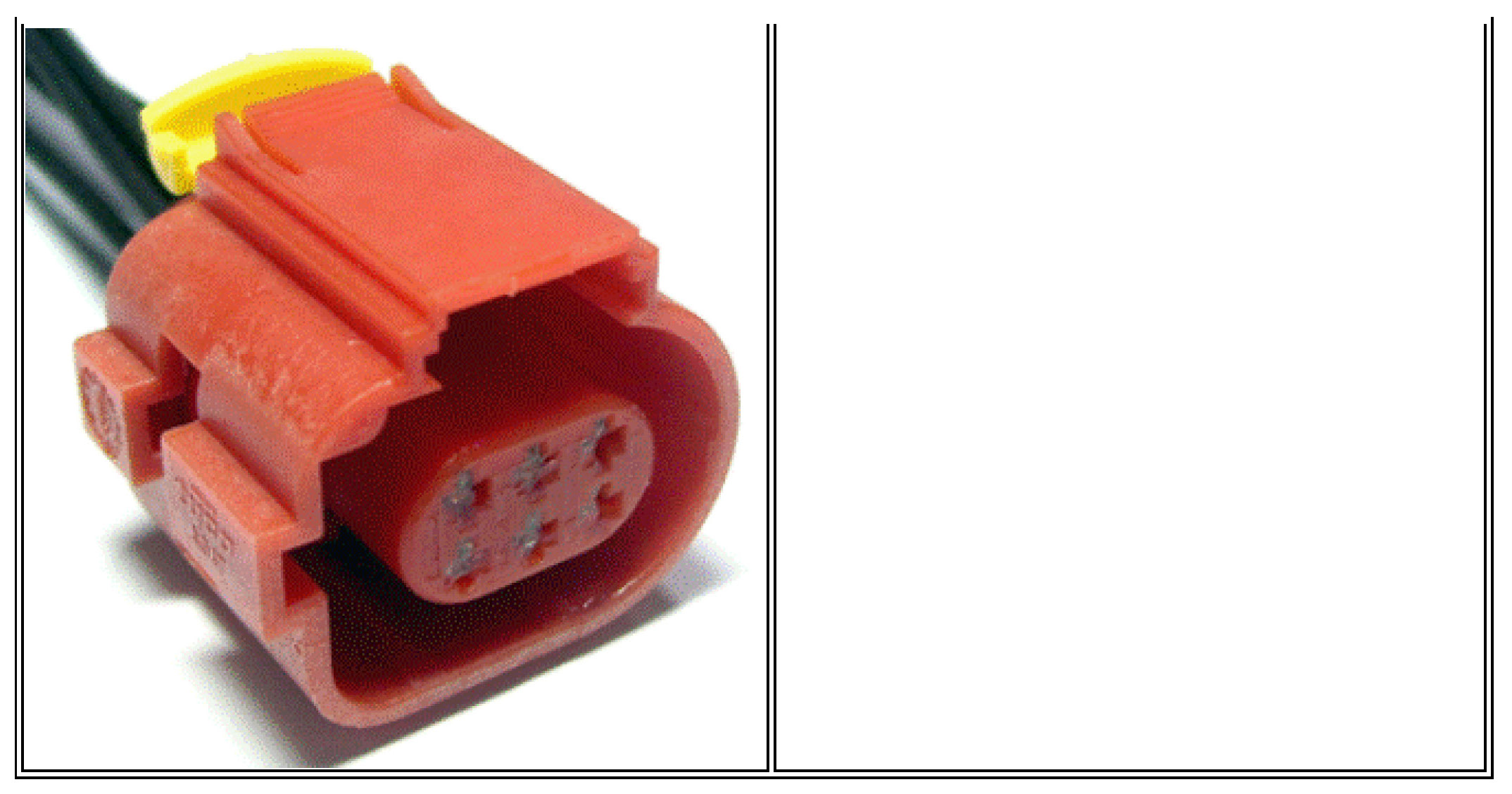

C1910 Intake Throttle Actuator
C1910 Intake Throttle Actuator
