Home
>>
Ford Truck
>>
2012
>>
F 350 4WD Super Duty V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

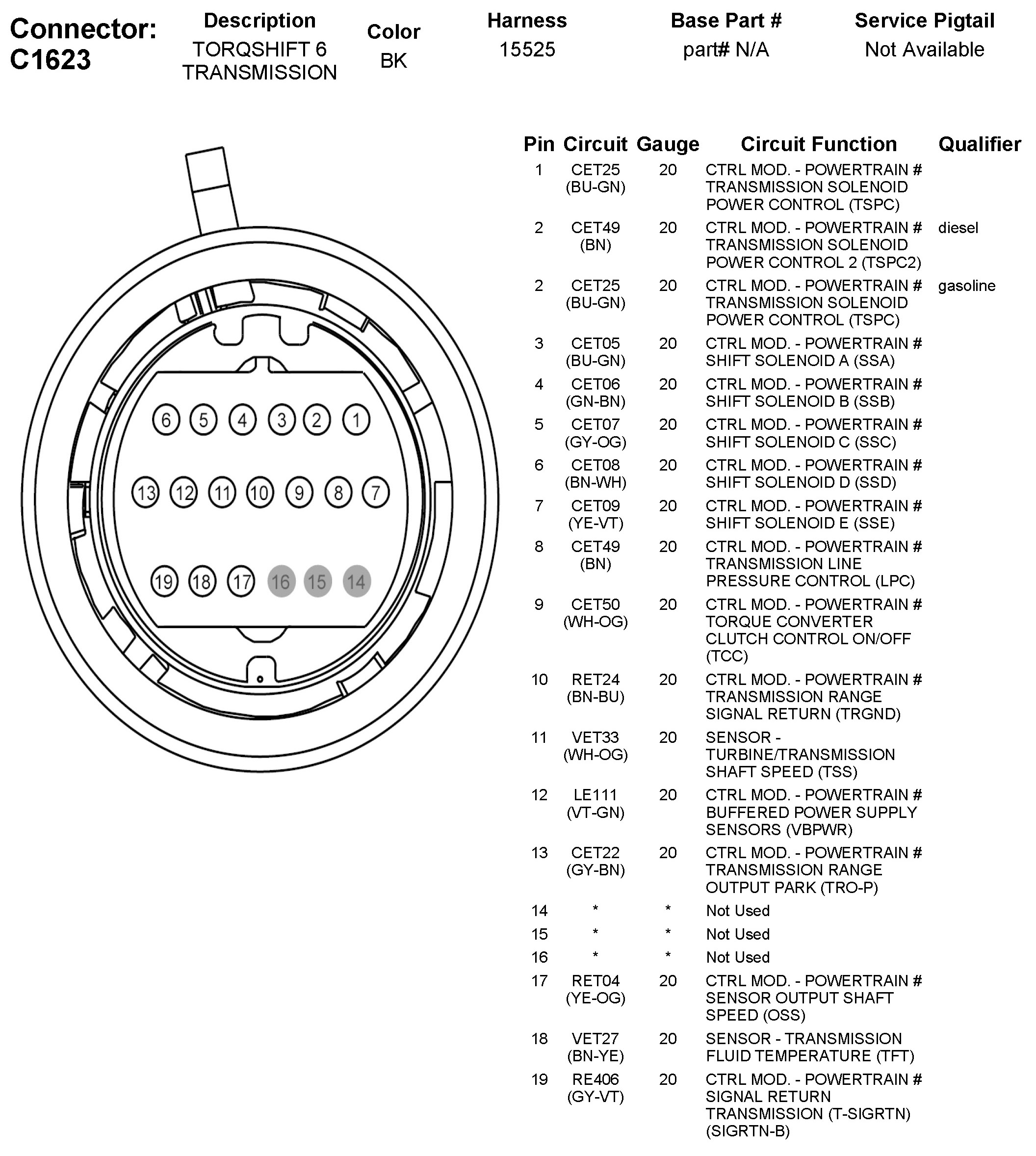

C1623 Torqshift 6 Transmission
C1623 Torqshift 6 Transmission
