Seals and Gaskets: Service and Repair

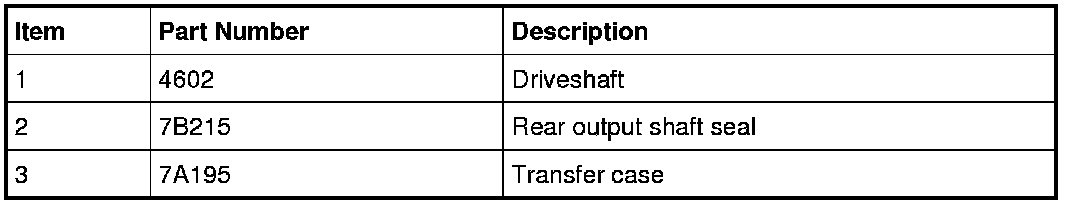

Transfer Case Rear Output Shaft Seal













Removal

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the rear driveshaft.

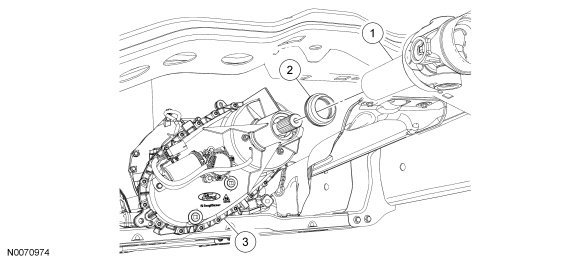

3. Using a suitable seal puller, remove the rear output shaft seal.





Installation

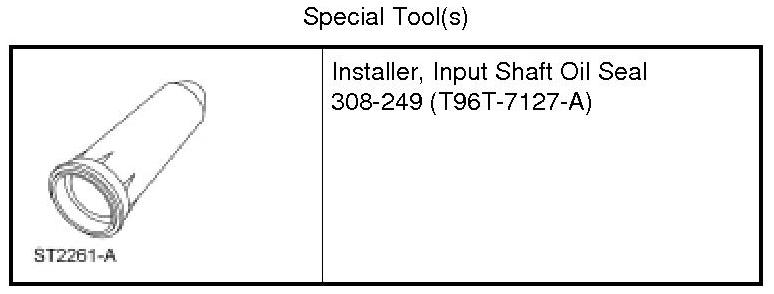

1. Using the Input Shaft Oil Seal Installer, install the rear output shaft seal.





2. Install the rear driveshaft.
