Throttle Body: Service and Repair

Throttle Body

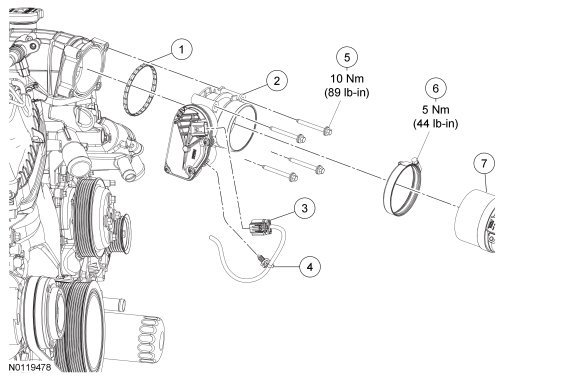

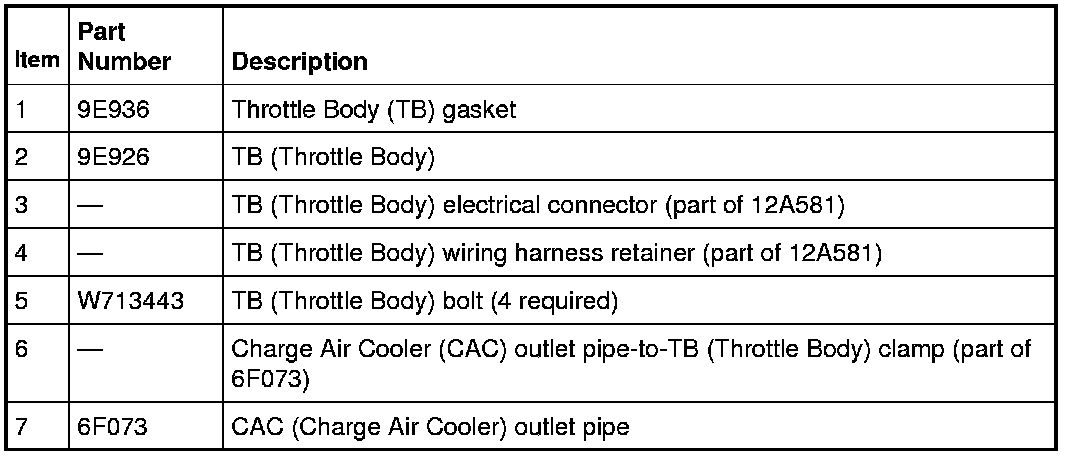

Removal and Installation

1. Remove the Air Cleaner (ACL) outlet pipe.

2. Disconnect the Throttle Body (TB) electrical connector.

3. Loosen the clamp and disconnect the Charge Air Cooler (CAC) outlet pipe-to-TB (Throttle Body).
- To install, tighten to 5 Nm (44 lb-in).


4. Remove the 4 bolts and the TB (Throttle Body).
- Discard the TB (Throttle Body) gasket.

- To install, tighten to 10 Nm (89 lb-in).


5. NOTE: Install a new TB (Throttle Body) gasket.
To install, reverse the removal procedure.
