Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
F 150 4WD V6-3.5L Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Camshaft Position Sensor
>>
Diagrams
>>

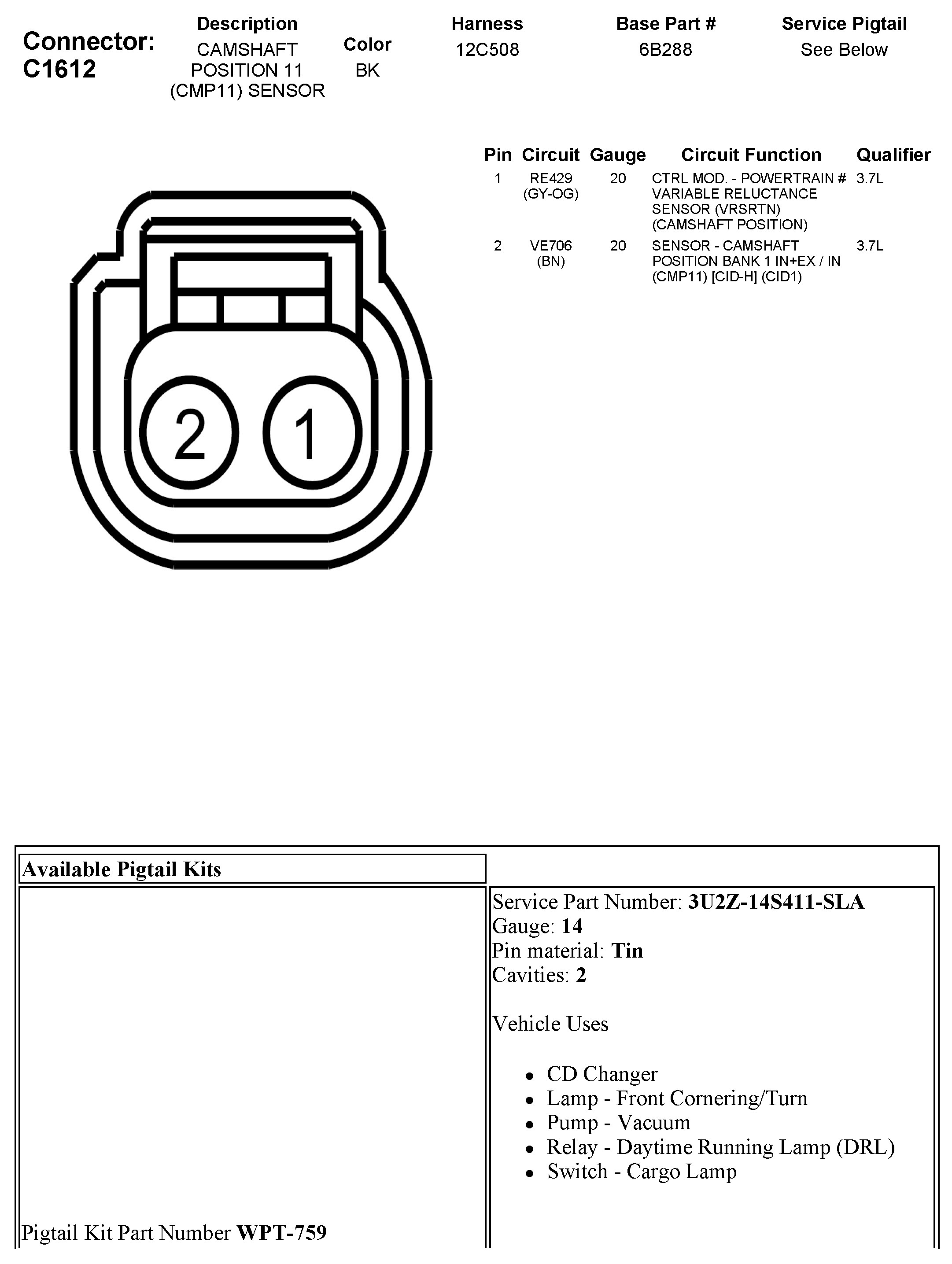

C1612 Camshaft Position 11 (CMP11) Sensor
C1612 Camshaft Position 11 (CMP11) Sensor
