Home >> Ford Truck >> 2012 >> F 150 4WD V6-3.5L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> Four Wheel Drive Selector Switch >> C284 Mode Select Switch (MSS)

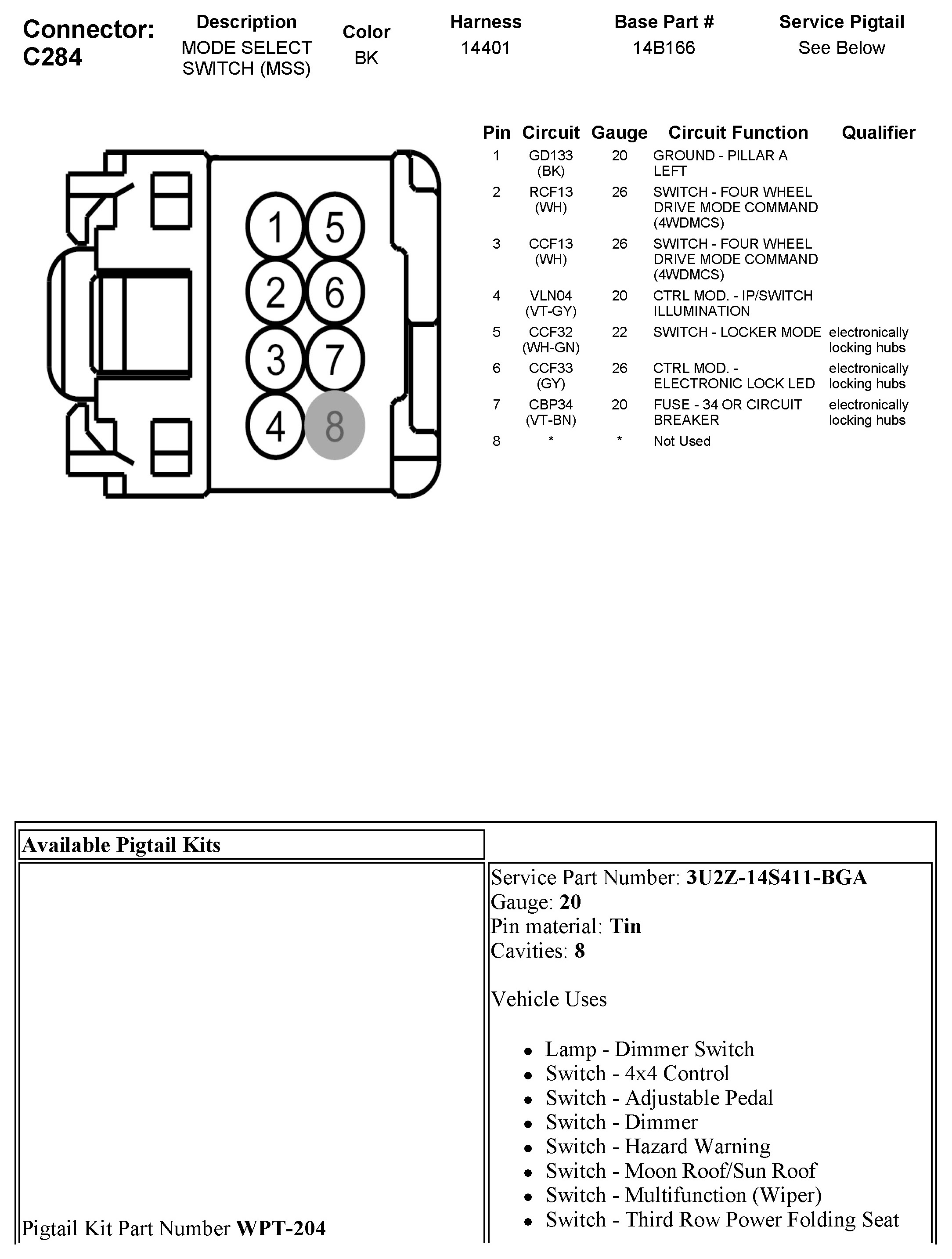

C284 Mode Select Switch (MSS)
