Home
>>
Ford Truck
>>
2012
>>
F 150 2WD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>

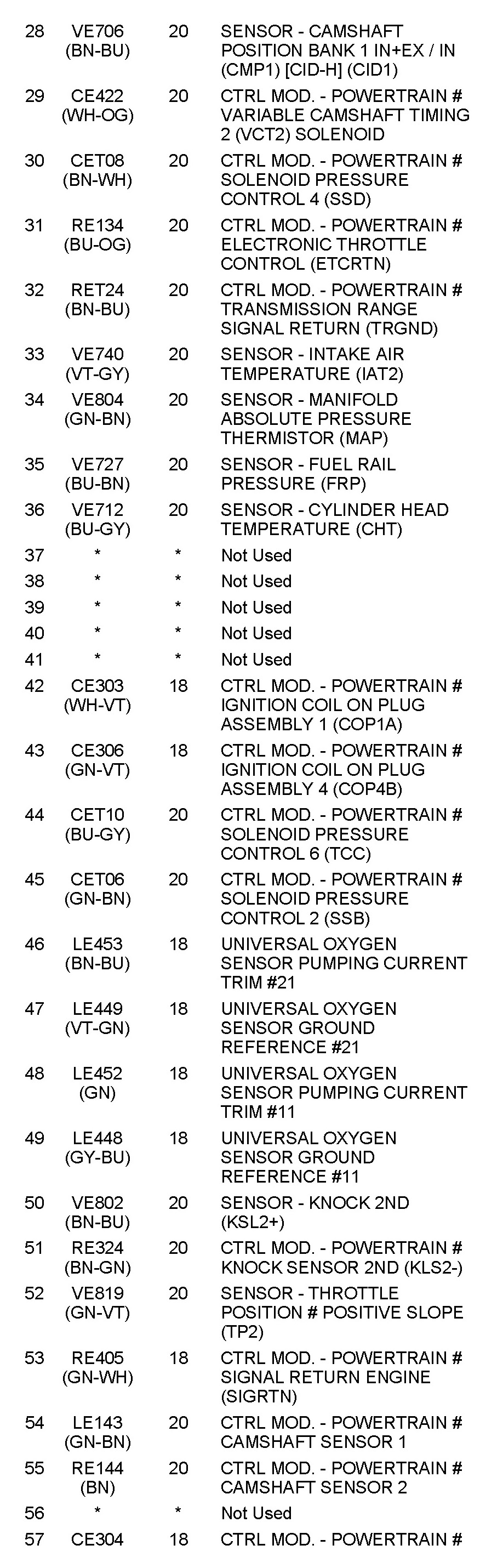

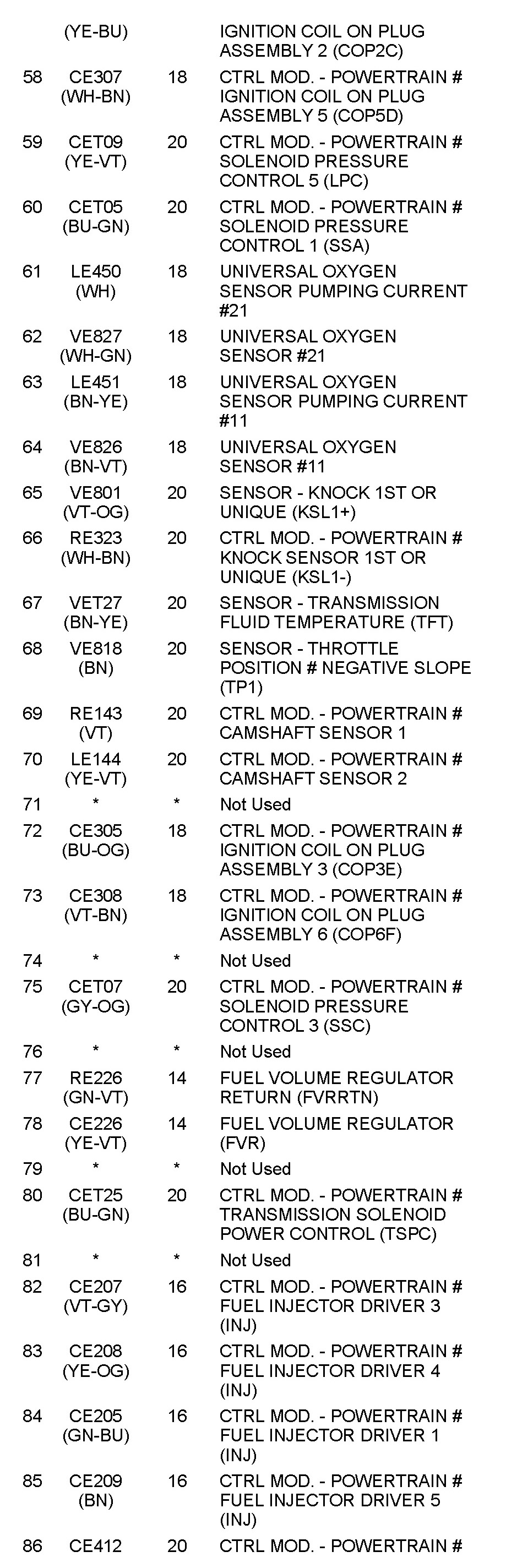

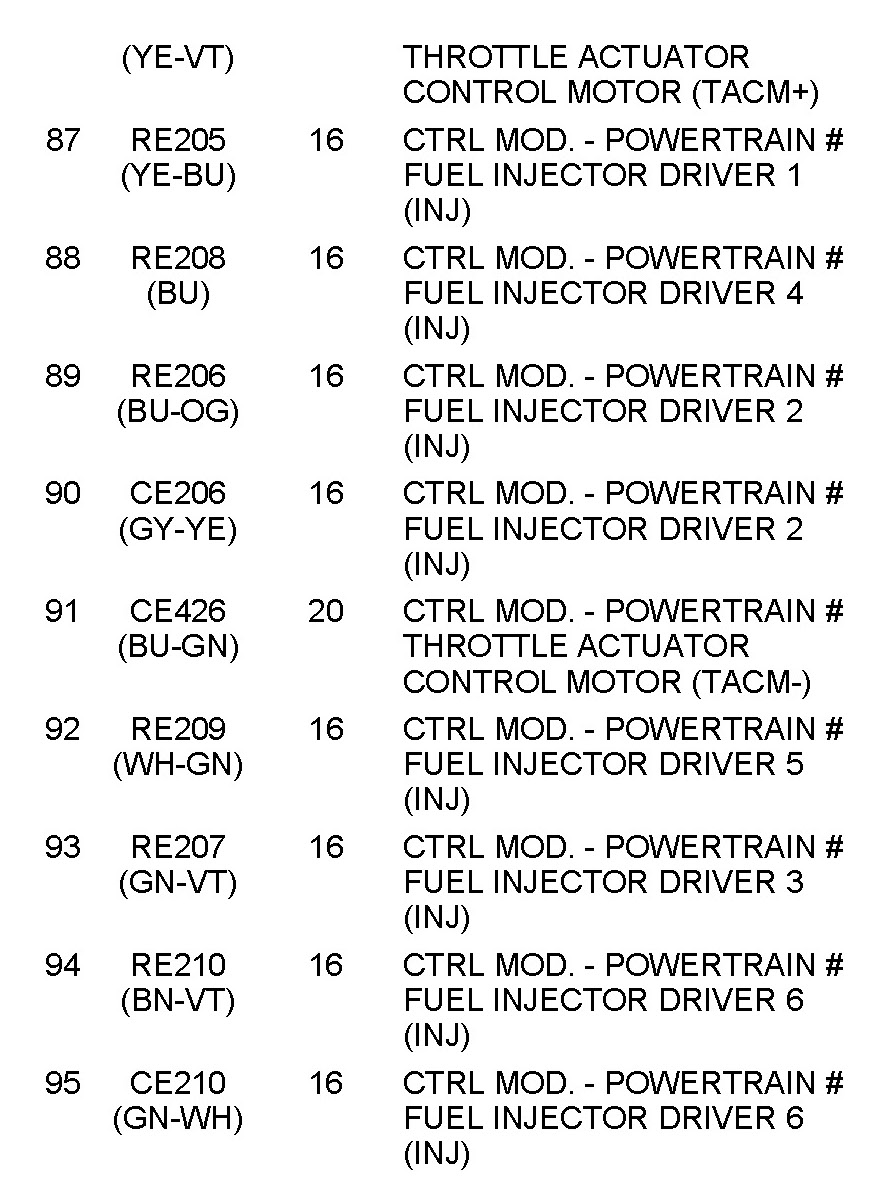

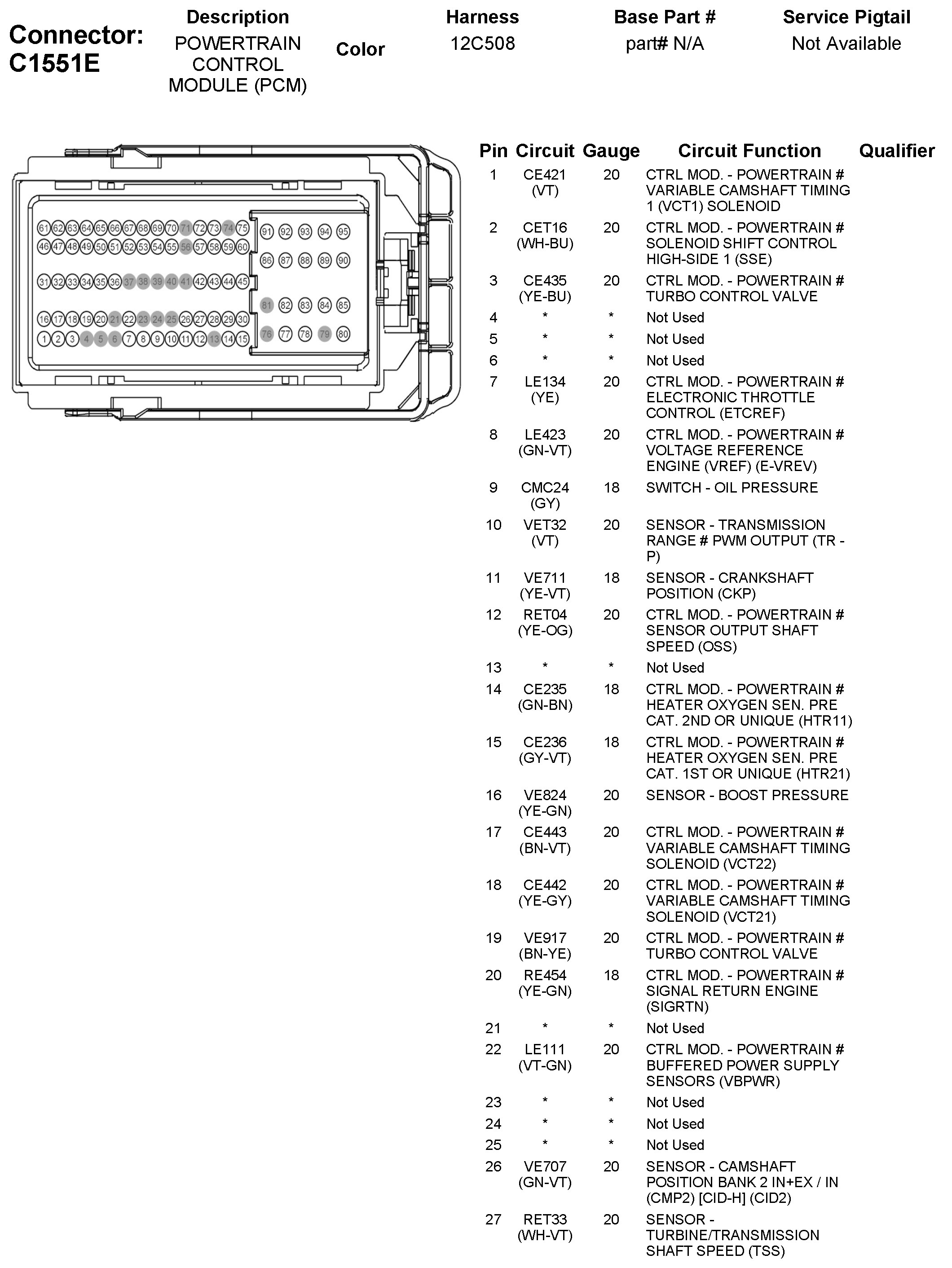

C1551E Powertrain Control Module (PCM)
C1551E Powertrain Control Module (PCM)
