Ford Truck
>>
2012
>>
F 150 2WD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module HVAC
>>

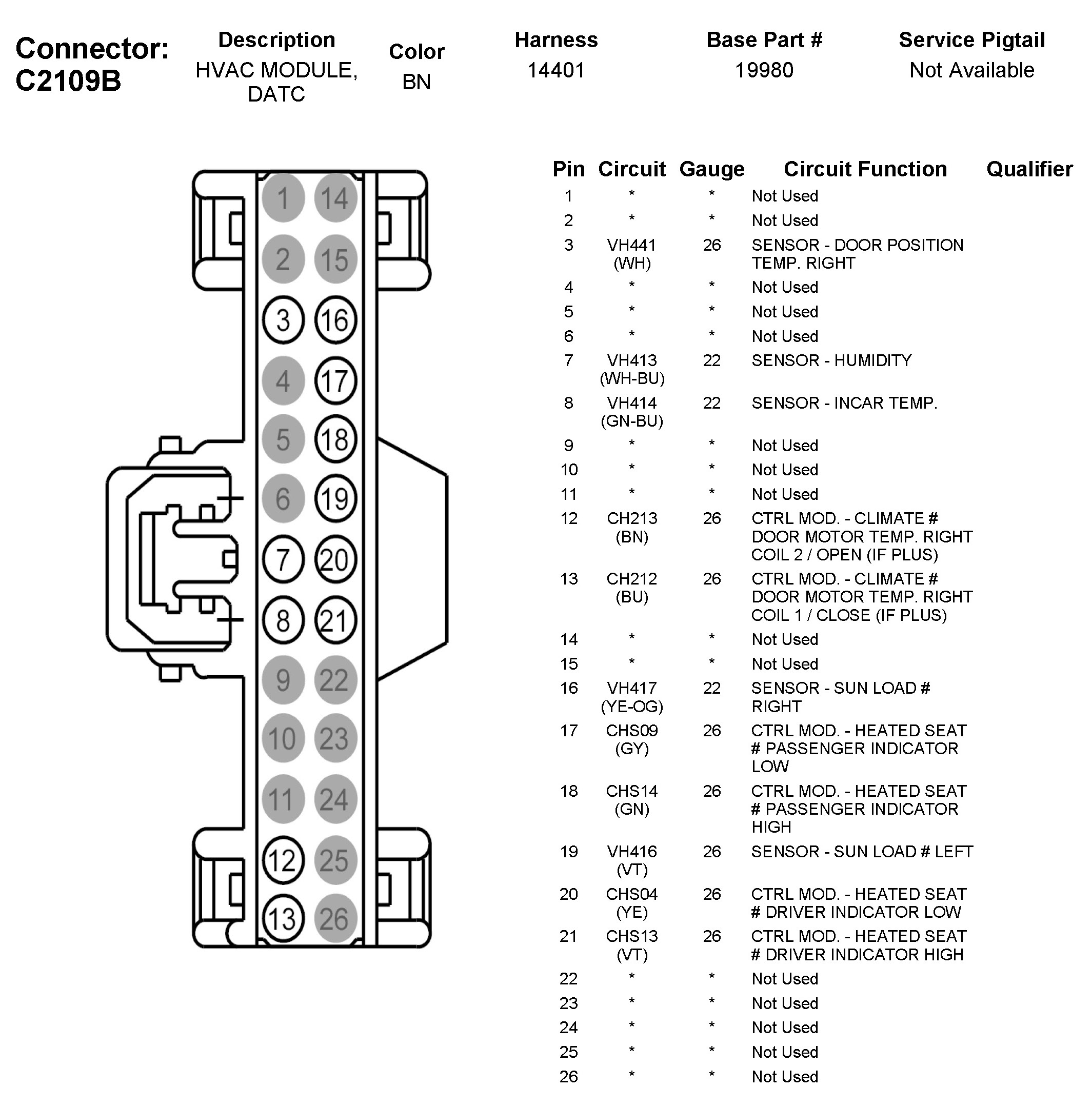

C2109B HVAC Module, DATC
C2109B HVAC Module, DATC
