Vacuum Pump: Service and Repair

Brake Vacuum Pump

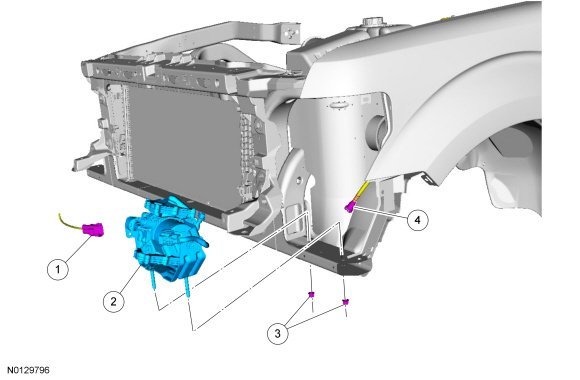

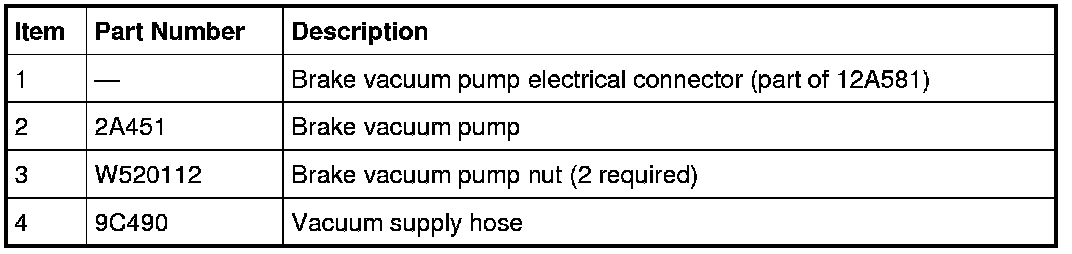

Removal and Installation

1. Remove the LH headlamp assembly.

2. Remove the LH inner fender splash shield.

3. Disconnect the vacuum pump electrical connector.

4. Disconnect the brake vacuum supply hose quick connect coupling.

5. Remove the 2 brake vacuum pump nuts.
- To install, tighten to 9 Nm (80 lb-in).


6. Remove the brake vacuum pump.

7. To install, reverse the removal procedure.
