Communications Control Module
>>
Diagrams
>>

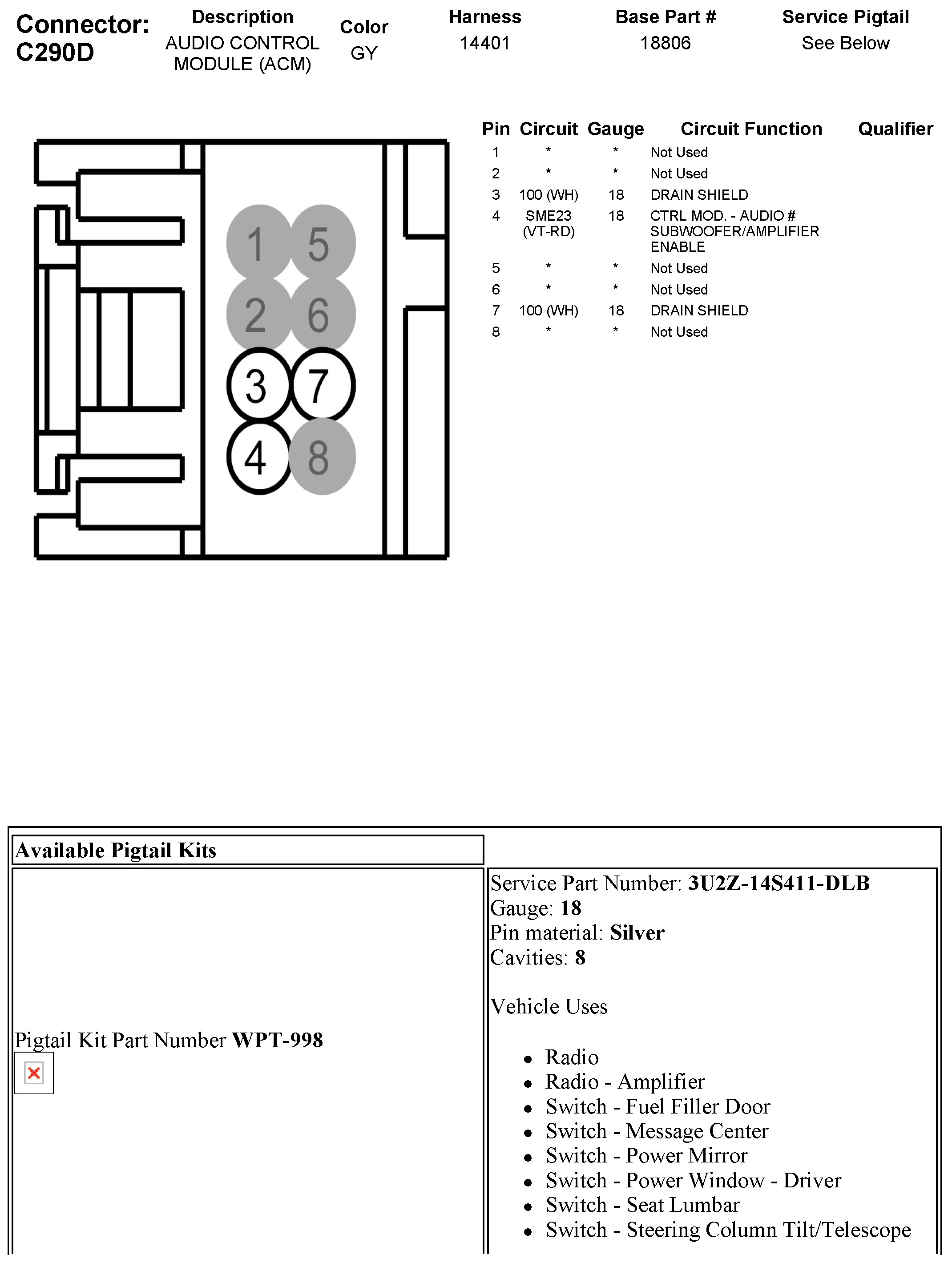

C290D Audio Control Module (ACM)
C290D Audio Control Module (ACM)
