Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
F 150 2WD V6-3.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Knock Sensor
>>
Diagrams
>>

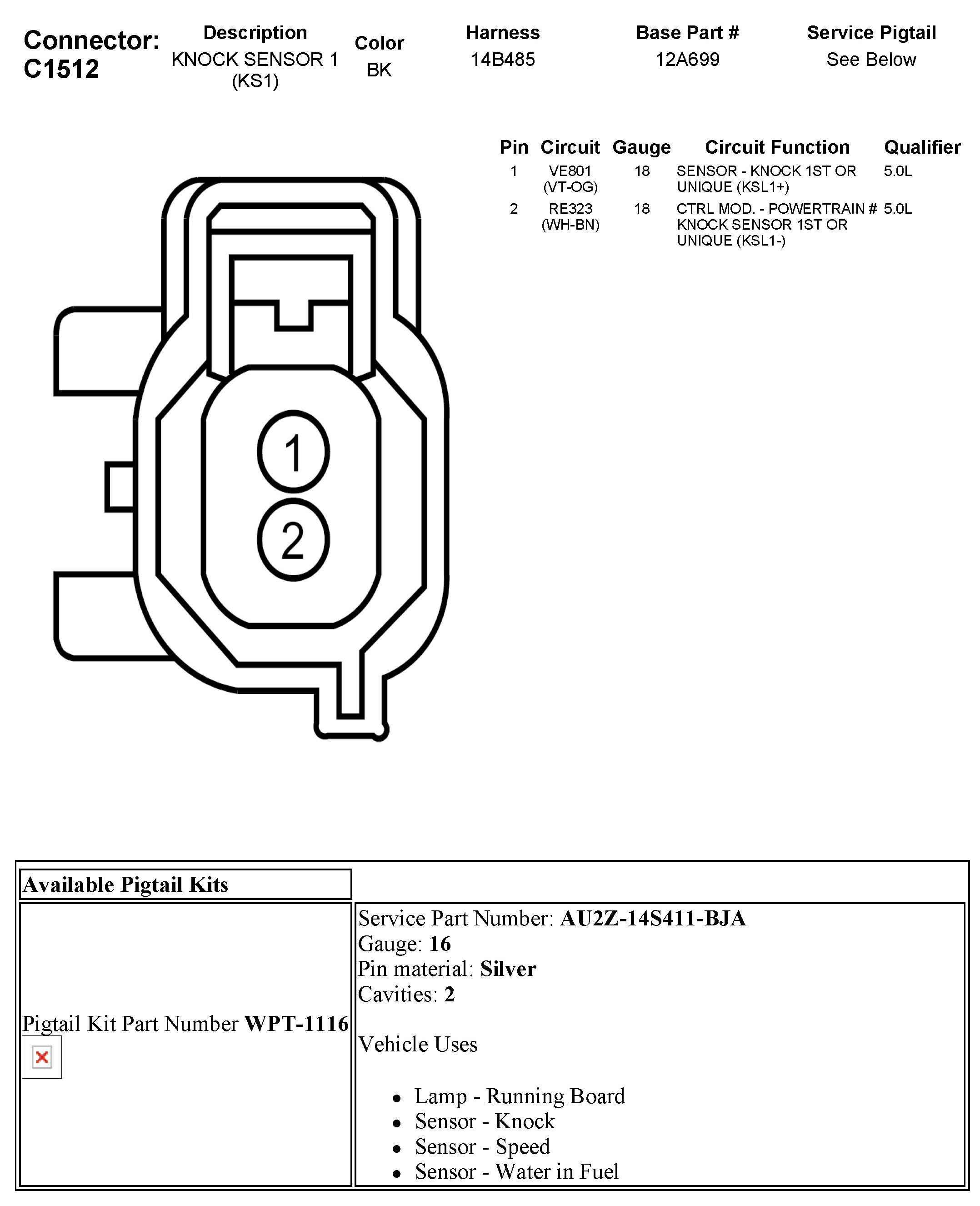

C1512 Knock Sensor 1 (KS1)
C1512 Knock Sensor 1 (KS1)
