Ford Truck
>>
2012
>>
F 150 2WD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Injector
>>

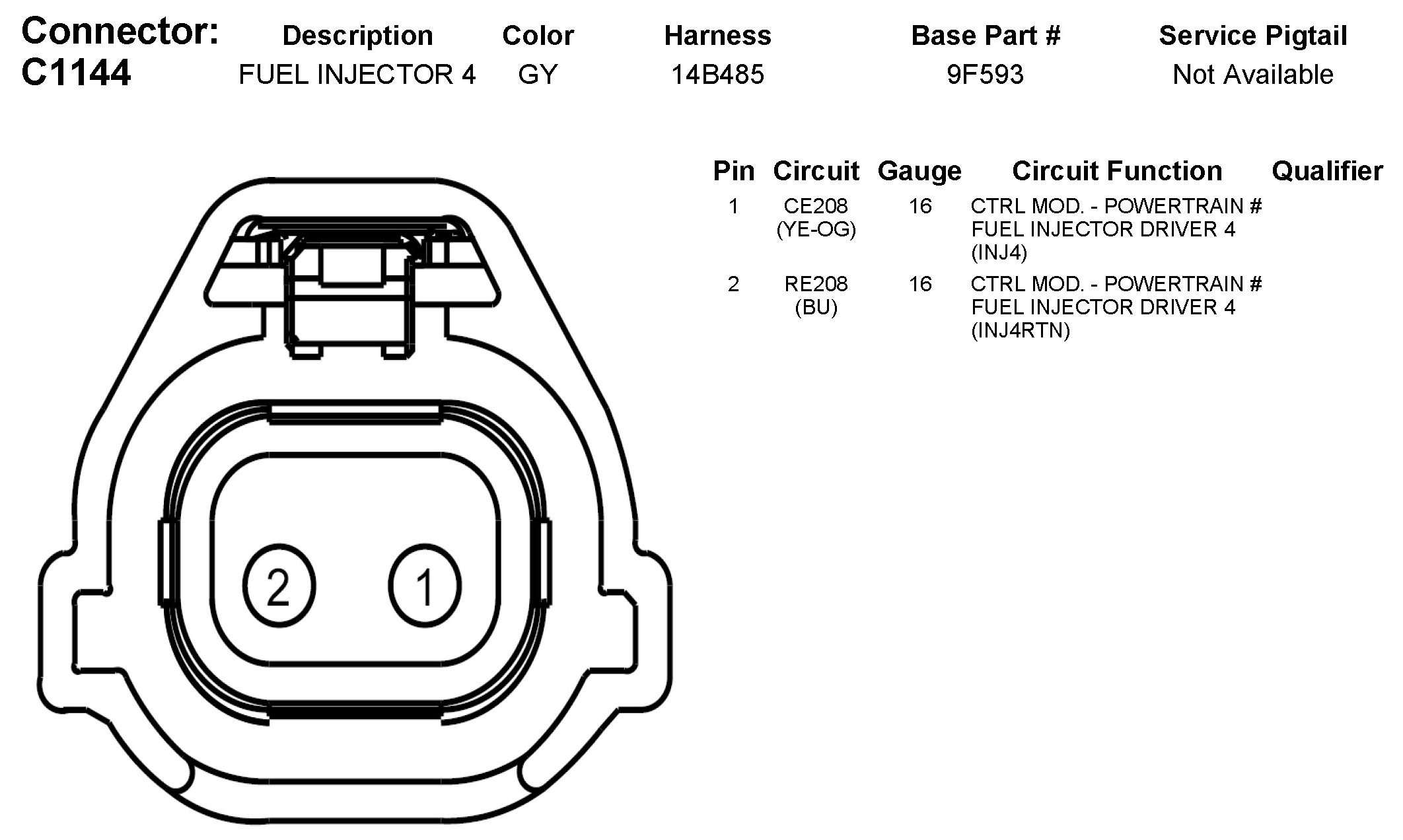

C1144 Fuel Injector 4
C1144 Fuel Injector 4
