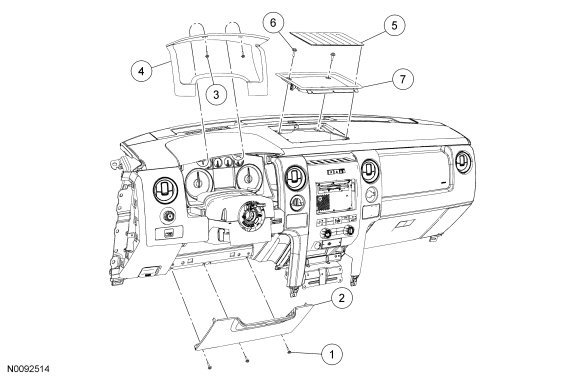

Instrument Panel - Exploded View




Instrument Panel - Exploded View

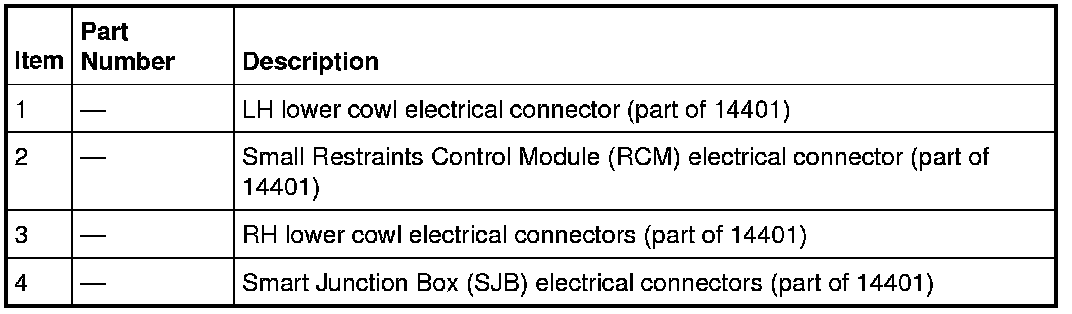

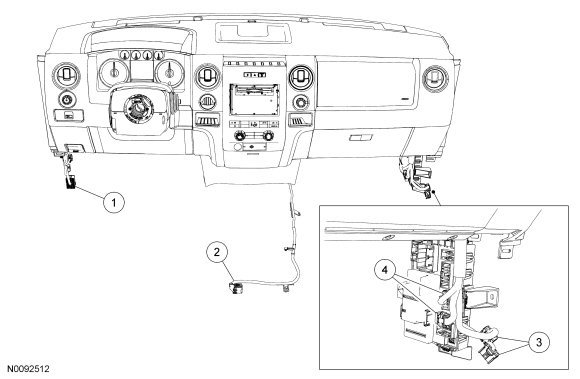

Instrument Panel Electrical Connectors

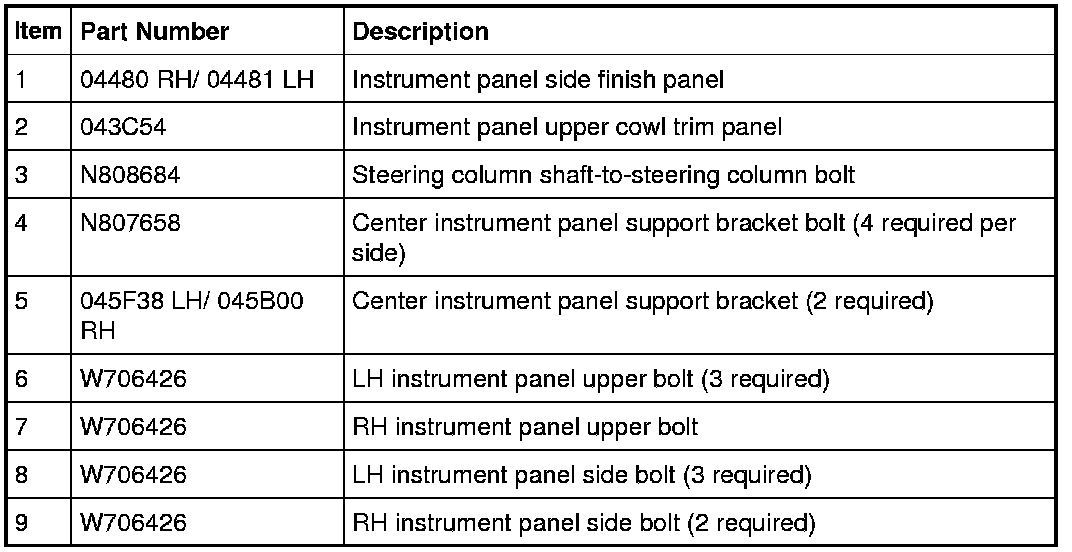

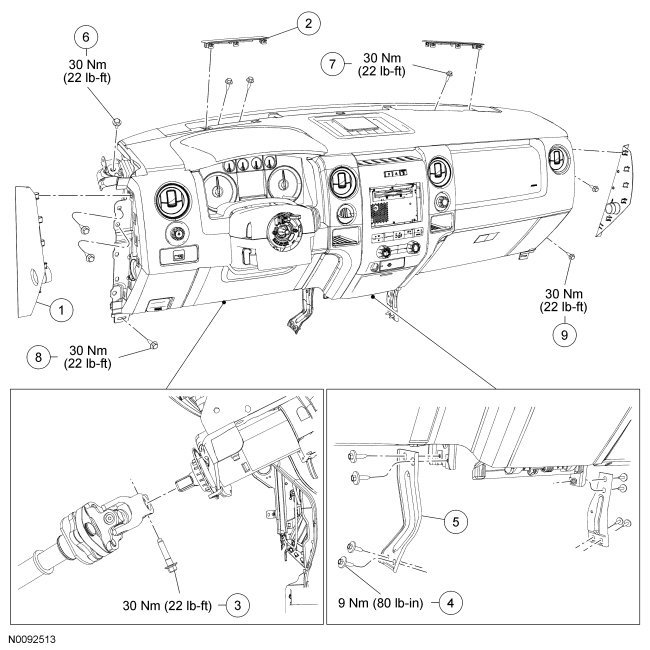

Instrument Panel Fasteners

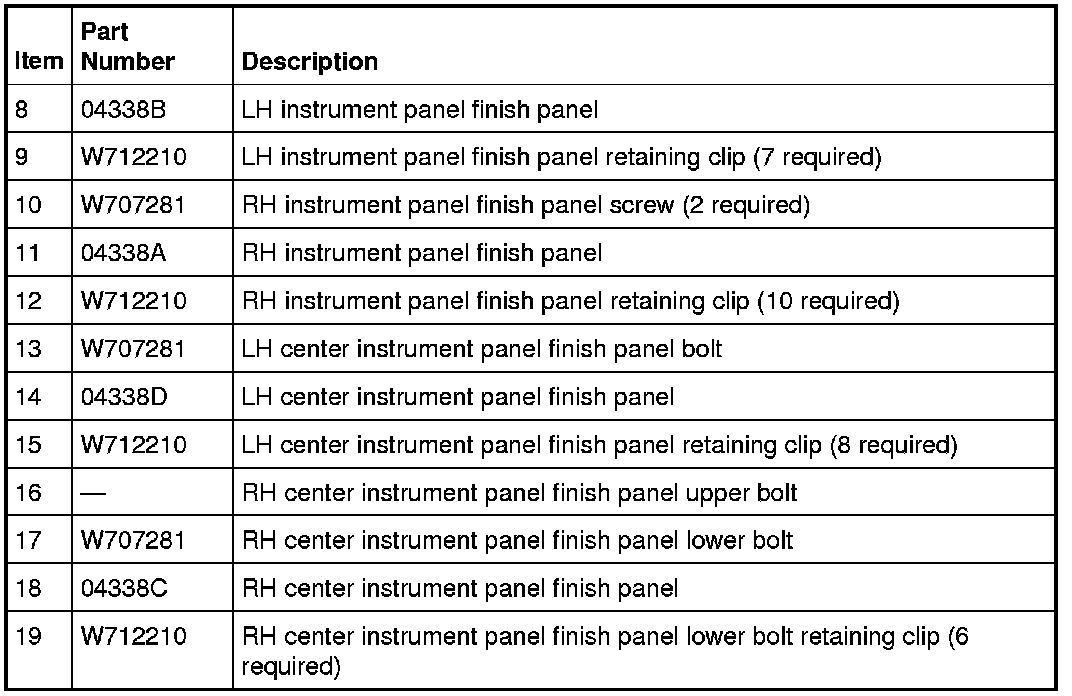

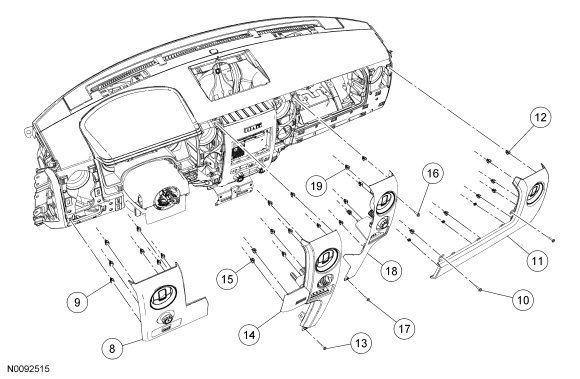

Instrument Panel Finish Panels

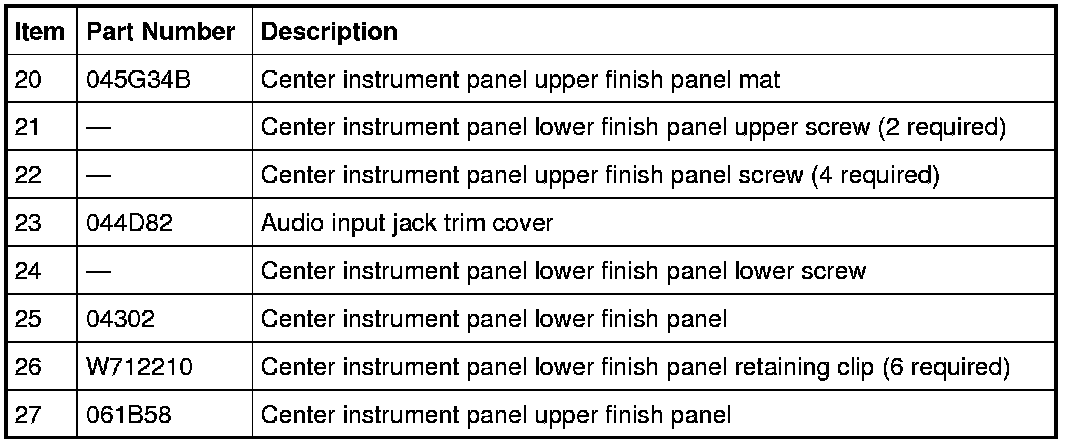

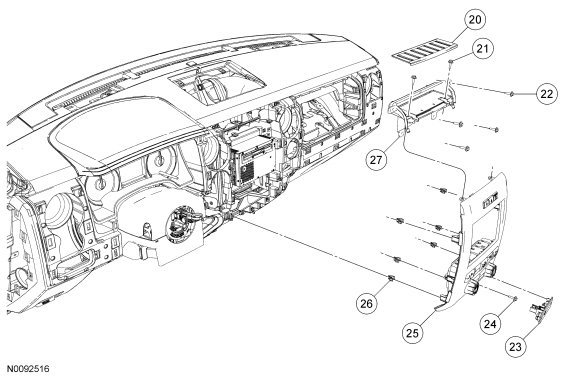

Instrument Panel Finish Panels (Continued)










Instrument Panel Finish Panels (Continued)
