Ford Truck
>>
2012
>>
Explorer FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exterior Moulding / Trim
Exterior Moulding / Trim
Exterior Trim - Exploded View
Exploded View

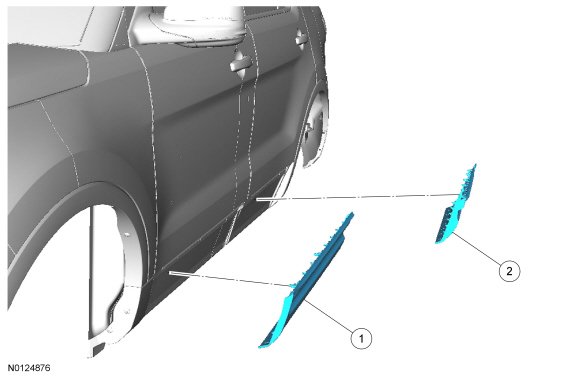

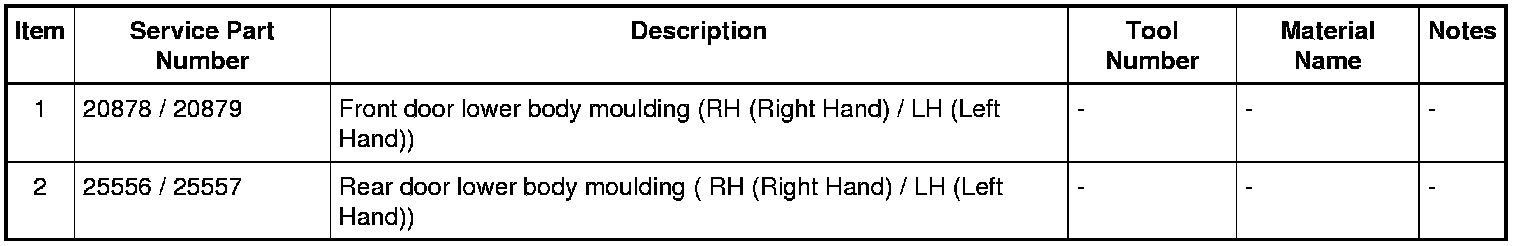

Body Side Moulding

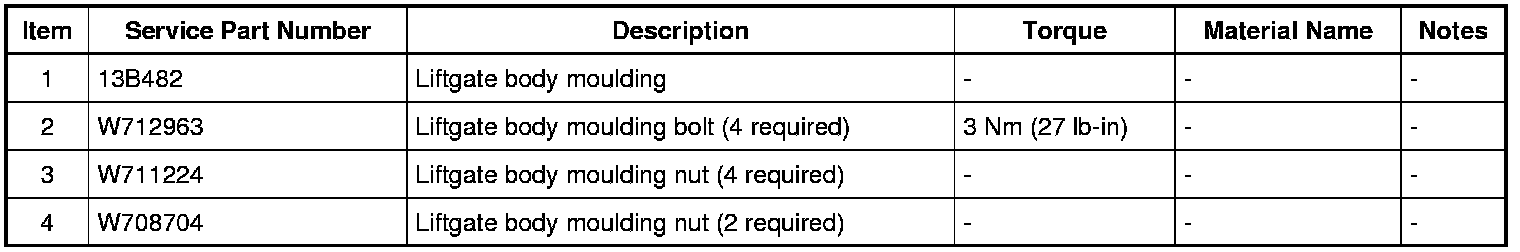

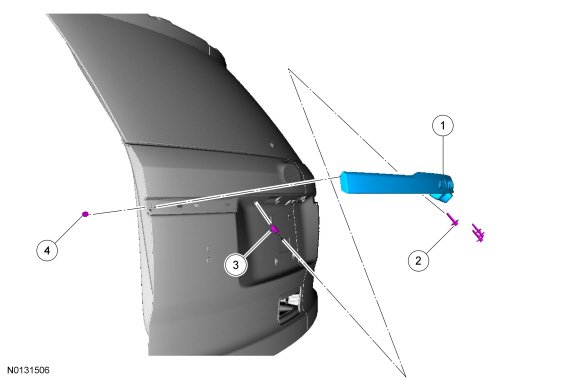

Liftgate Moulding
