Home
>>
Ford Truck
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>

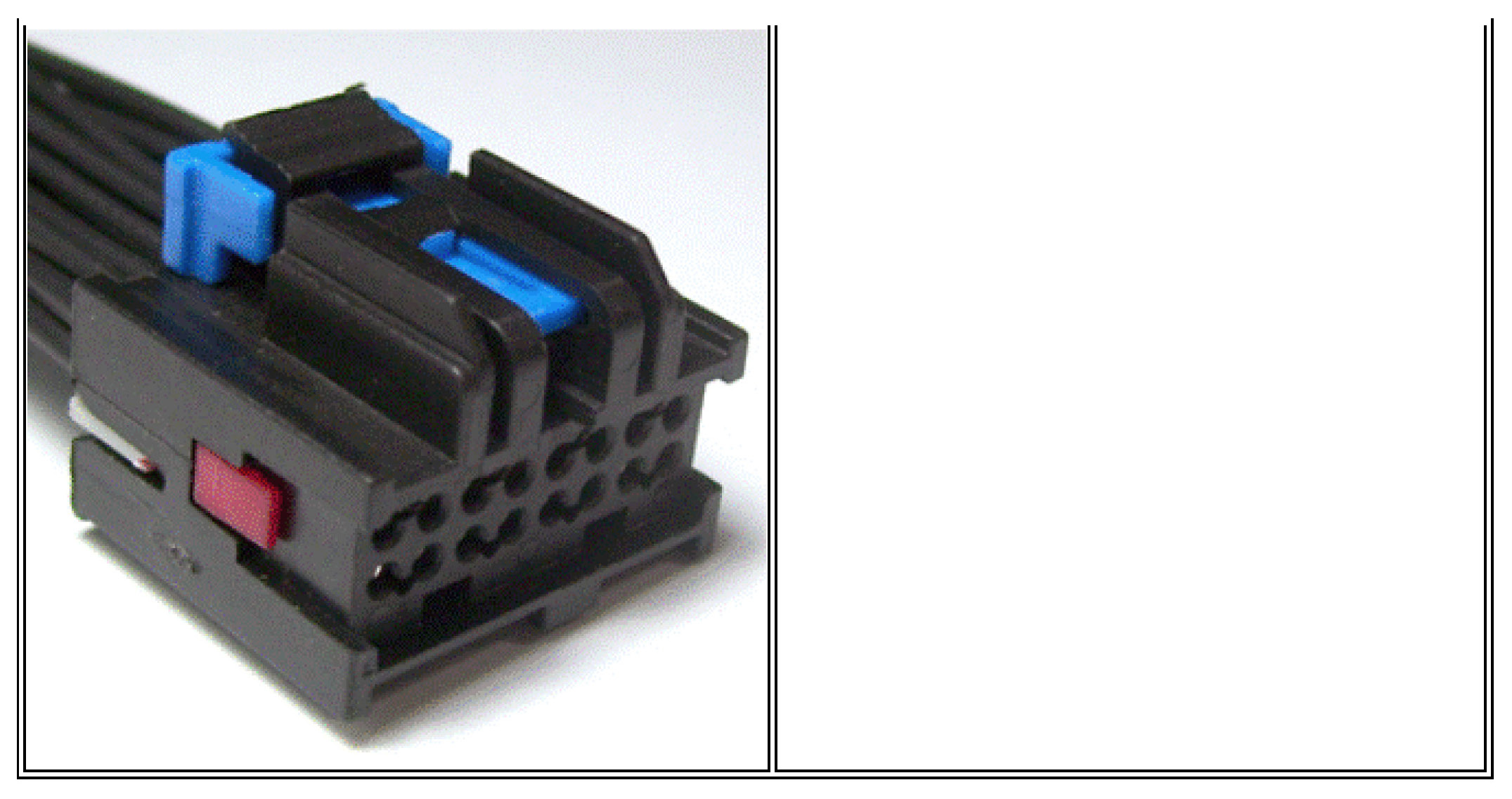

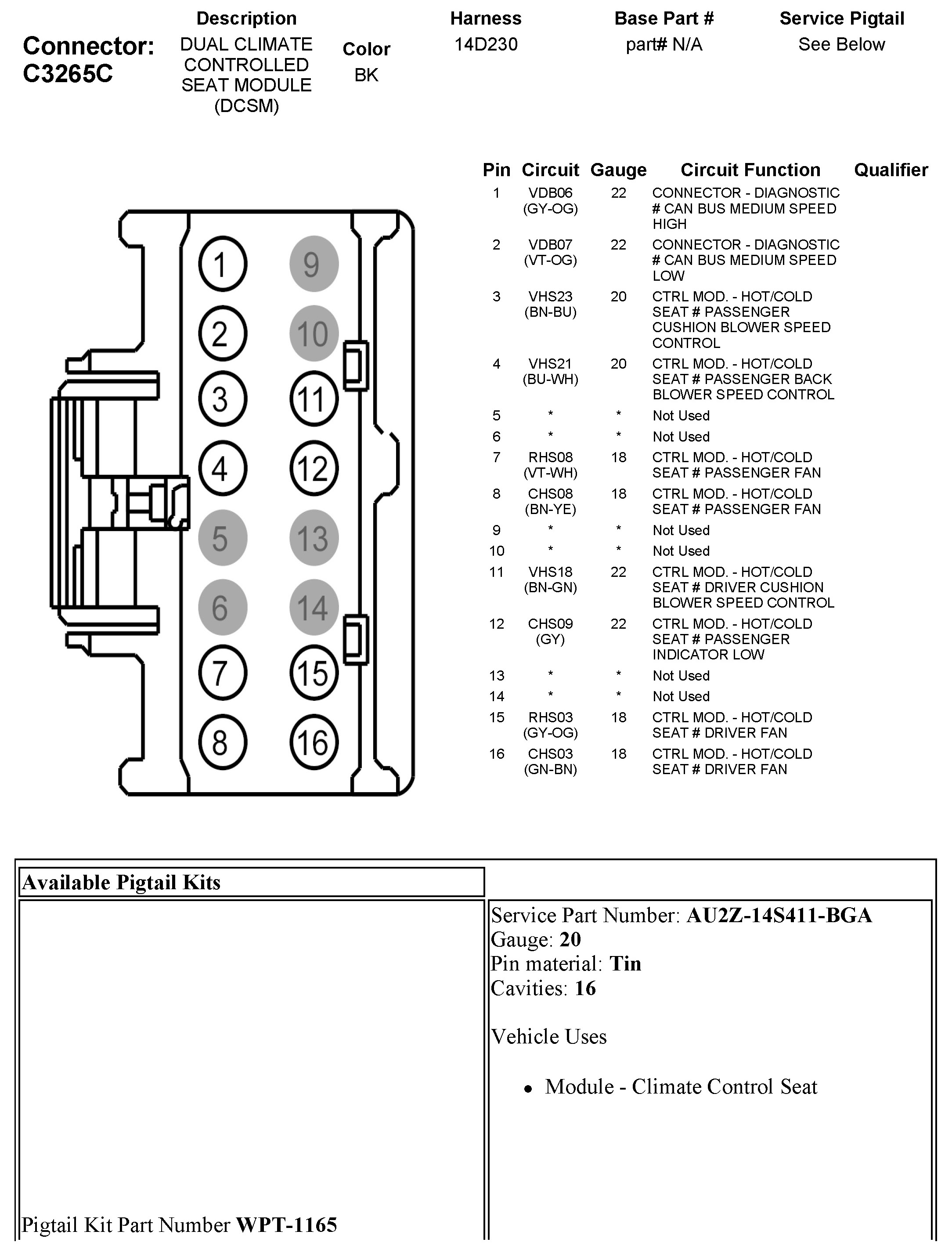

C3265C Dual Climate Controlled Seat Module (DCSM)
C3265C Dual Climate Controlled Seat Module (DCSM)
