Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
Explorer FWD L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>

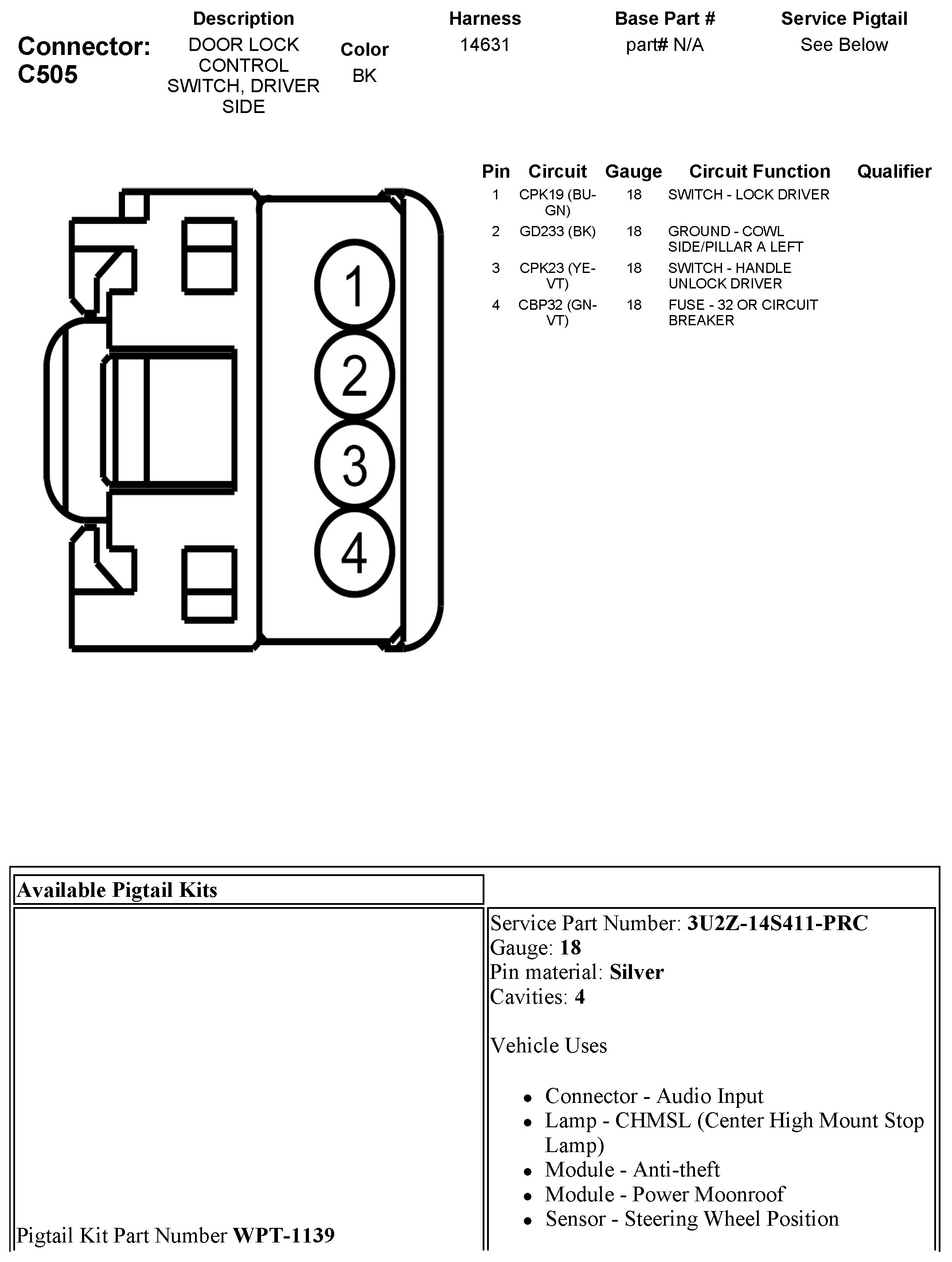

C505 Door Lock Control Switch, Driver Side
C505 Door Lock Control Switch, Driver Side
