Removal and Replacement

Engine Mount

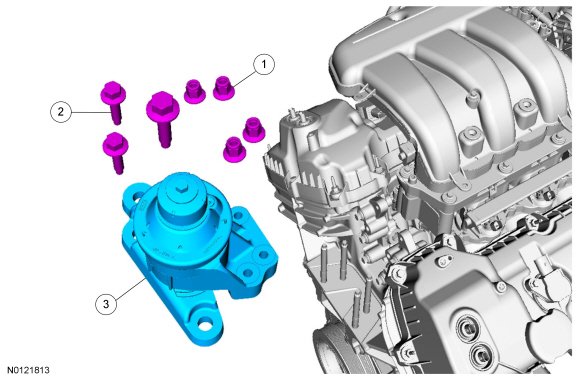

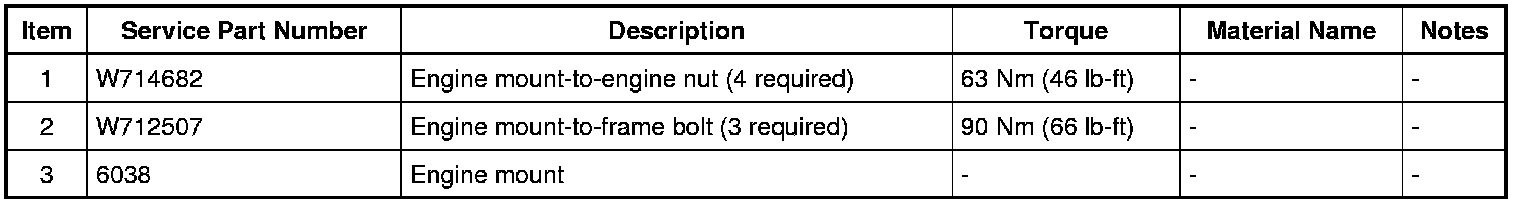

Exploded View










Removal

1. With the vehicle in NEUTRAL, position it on a hoist. REFER to Jacking and Lifting .

2. Remove degas bottle. REFER to Degas Bottle .

3. Remove the 3 twist-type retainers and remove the air duct from the subframe.





4. NOTICE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan

Position a floor jack with a block of wood under the front of the oil pan to support the engine.





5. Remove the 4 engine mount nuts, the 3 engine mount bolts and the engine mount.






Installation

1. Position the engine mount onto the engine studs and install the 4 nuts and 3 bolts hand tight.
- Tighten the 3 engine mount-to-frame bolts to 90 Nm (66 lb-ft).
- Tighten the 4 engine mount-to-engine nuts to 63 Nm (46 lb-ft).





2. Install the 3 twist-type retainers and the air duct to the subframe.





3. Install degas bottle. REFER to Degas Bottle .
