Ford Truck
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Heating and Air Conditioning
>>
Climate Control - DATC
Climate Control - DATC

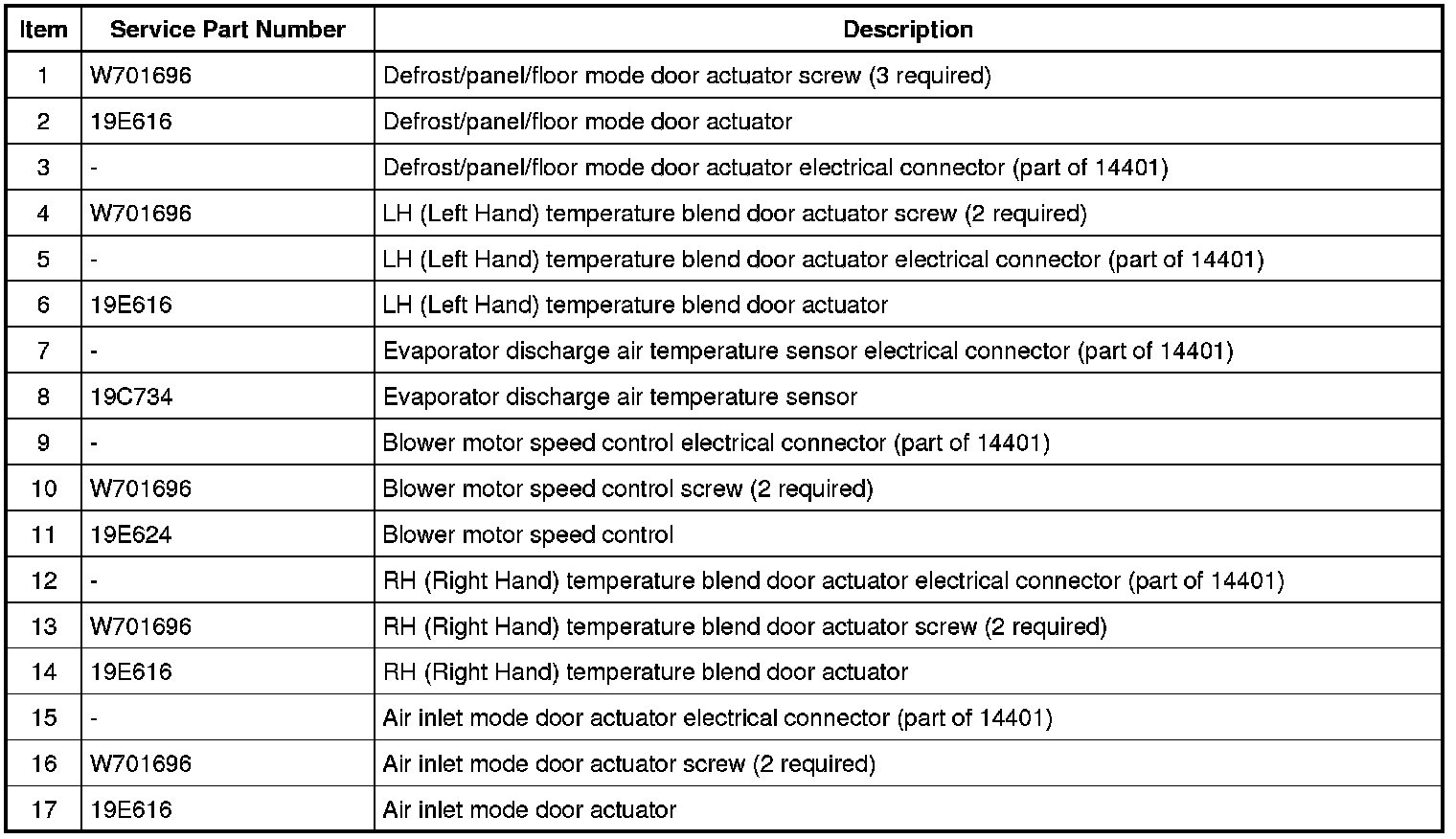

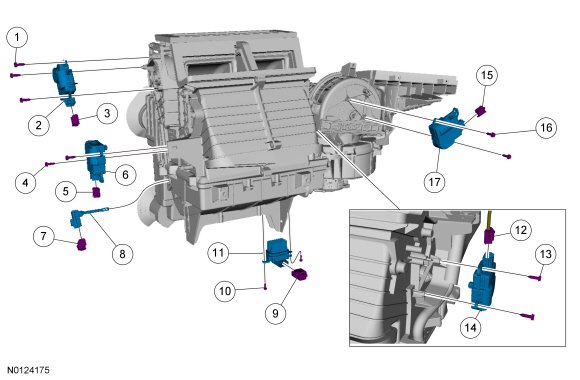

Control Components - Exploded View
Exploded View
