Home
>>
Ford Truck
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>

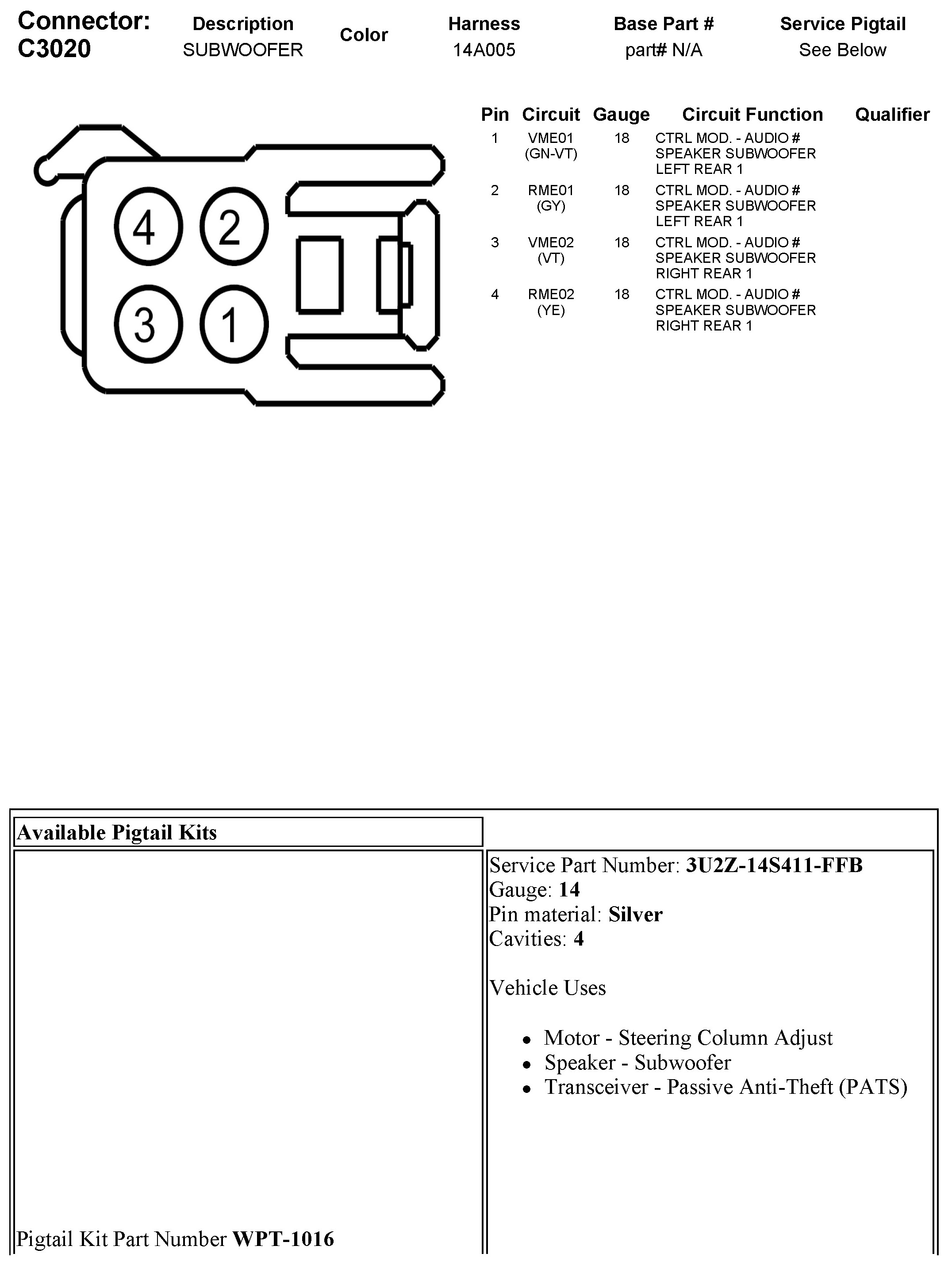

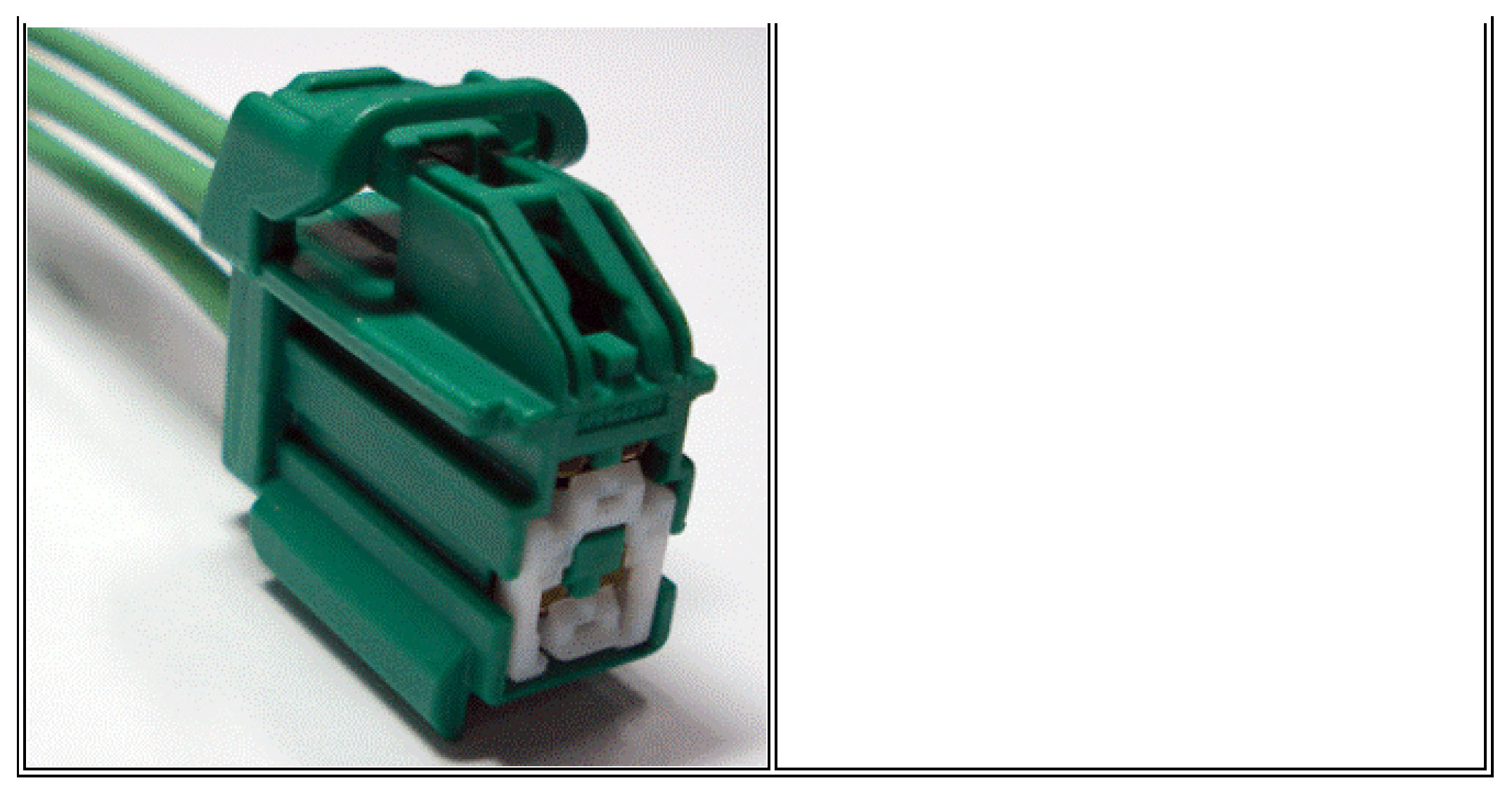

C3020 Subwoofer
C3020 Subwoofer
