Home
>>
Ford Truck
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>

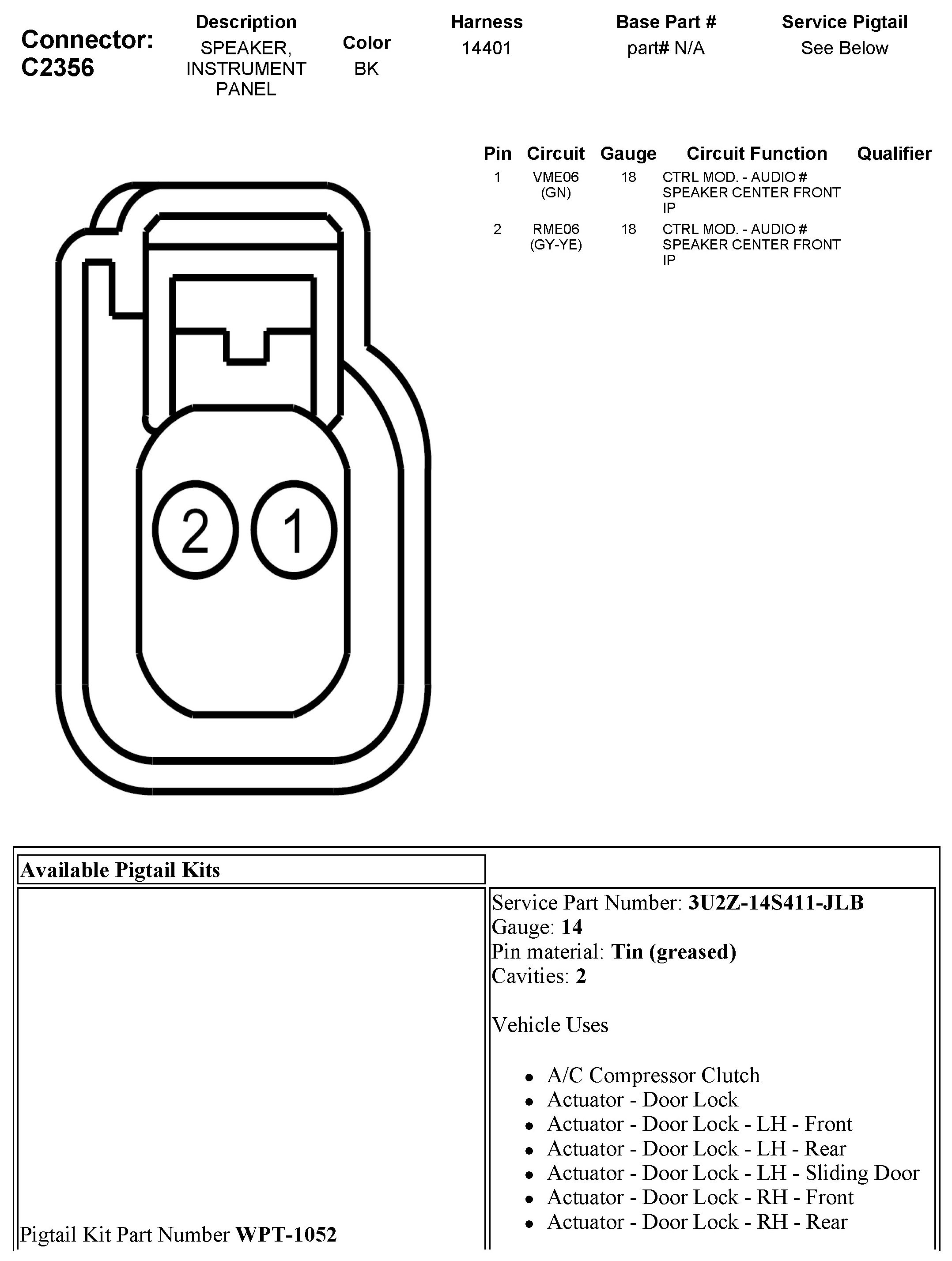

C2356 Speaker, Instrument Panel
C2356 Speaker, Instrument Panel
