Home
>>
Ford Truck
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Position Sensor
>>

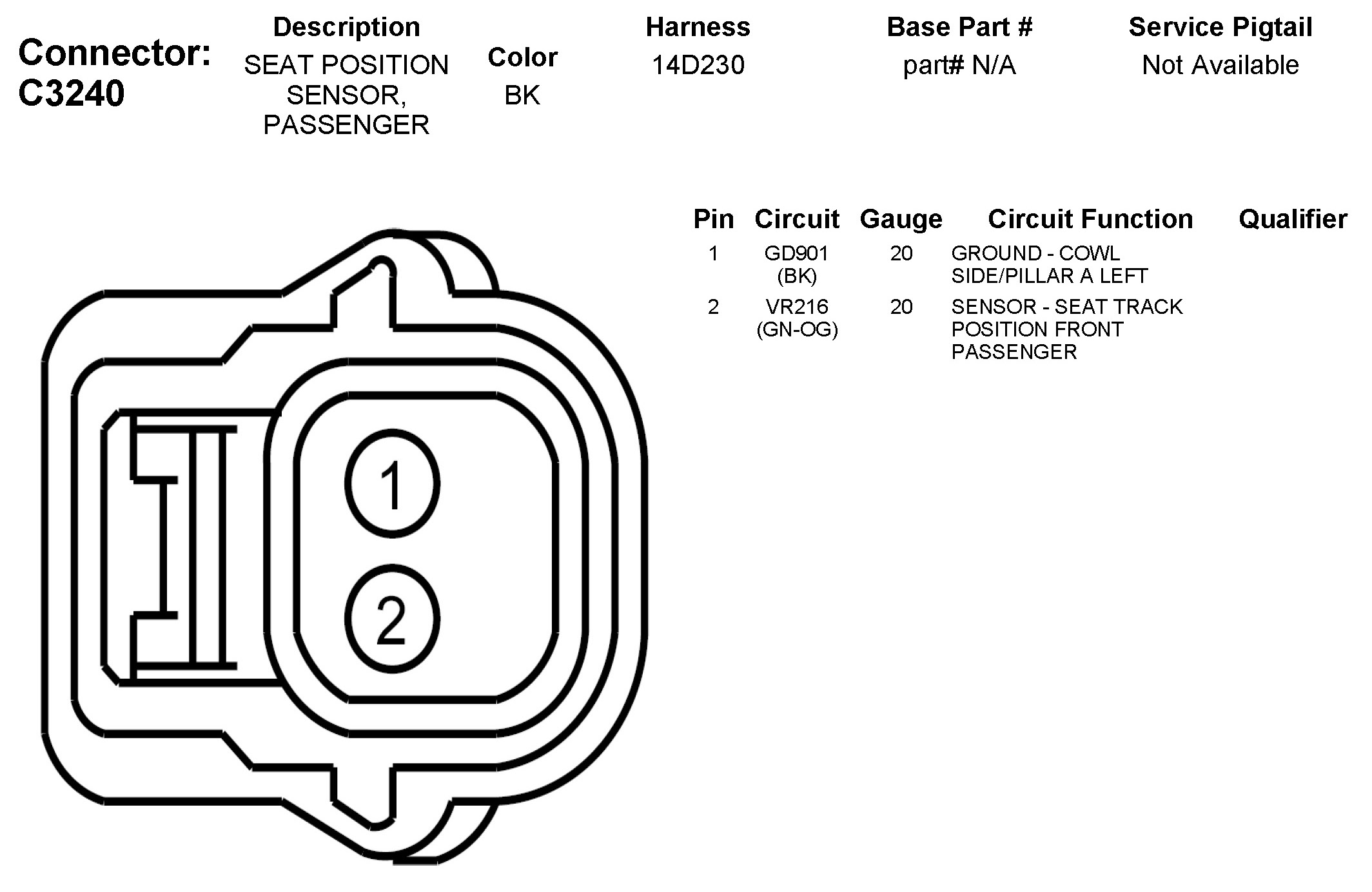

C3240 Seat Position Sensor, Passenger
C3240 Seat Position Sensor, Passenger
