Home
>>
Ford Truck
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Control Module
>>

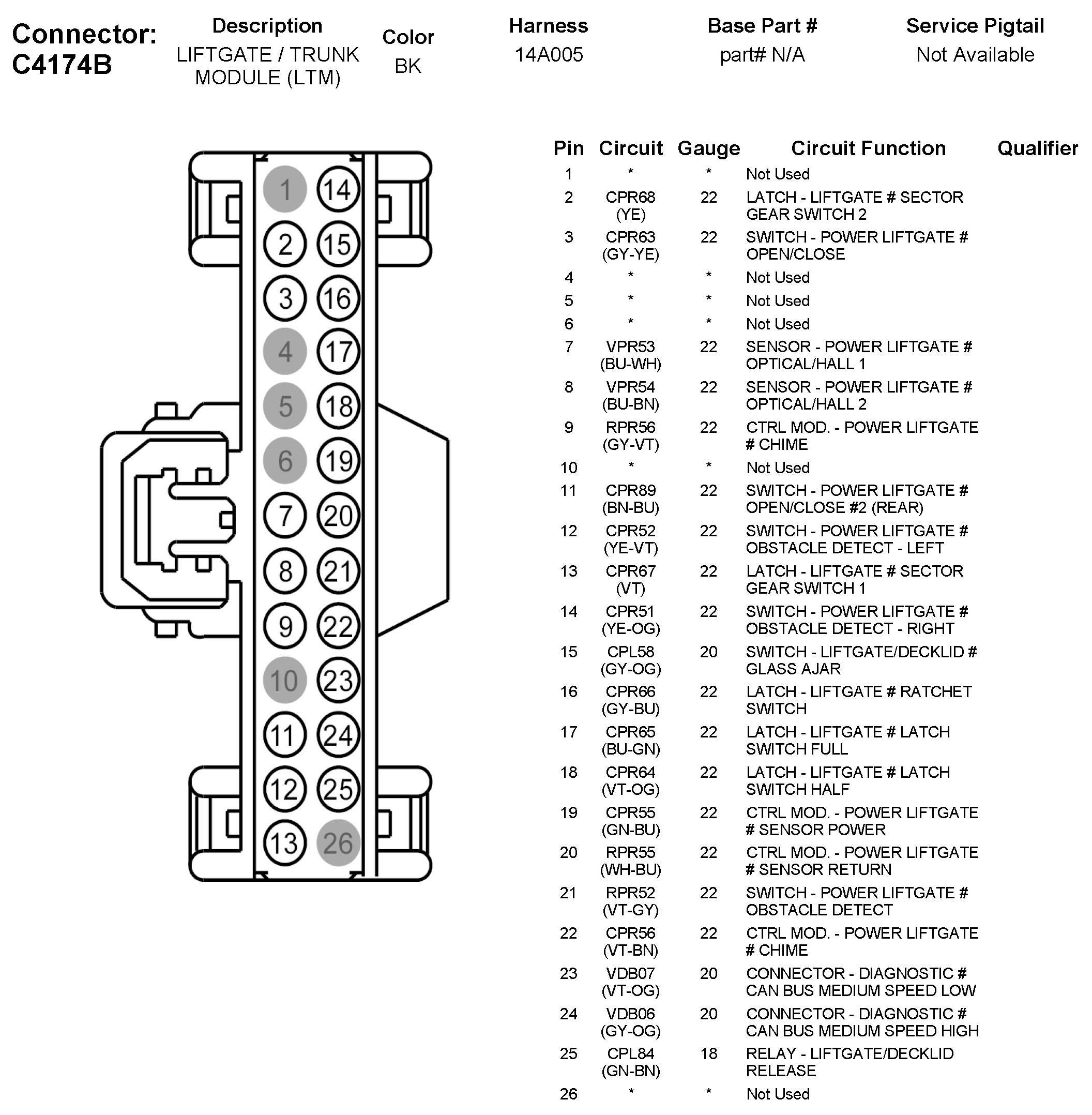

C4174B Liftgate / Trunk Module (LTM)
C4174B Liftgate / Trunk Module (LTM)
