Ford Truck
>>
2012
>>
Explorer AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Distance Sensor
>>

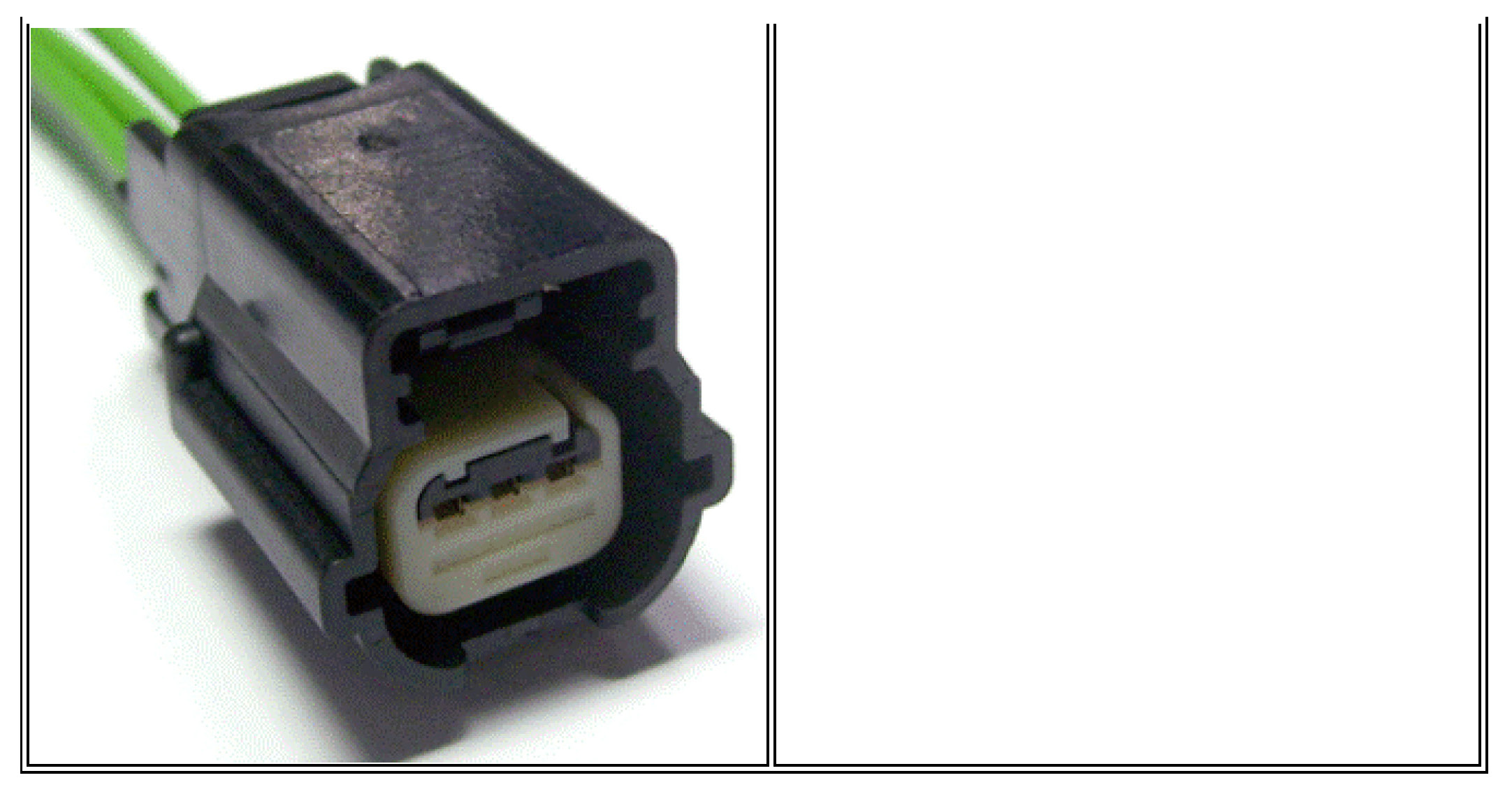

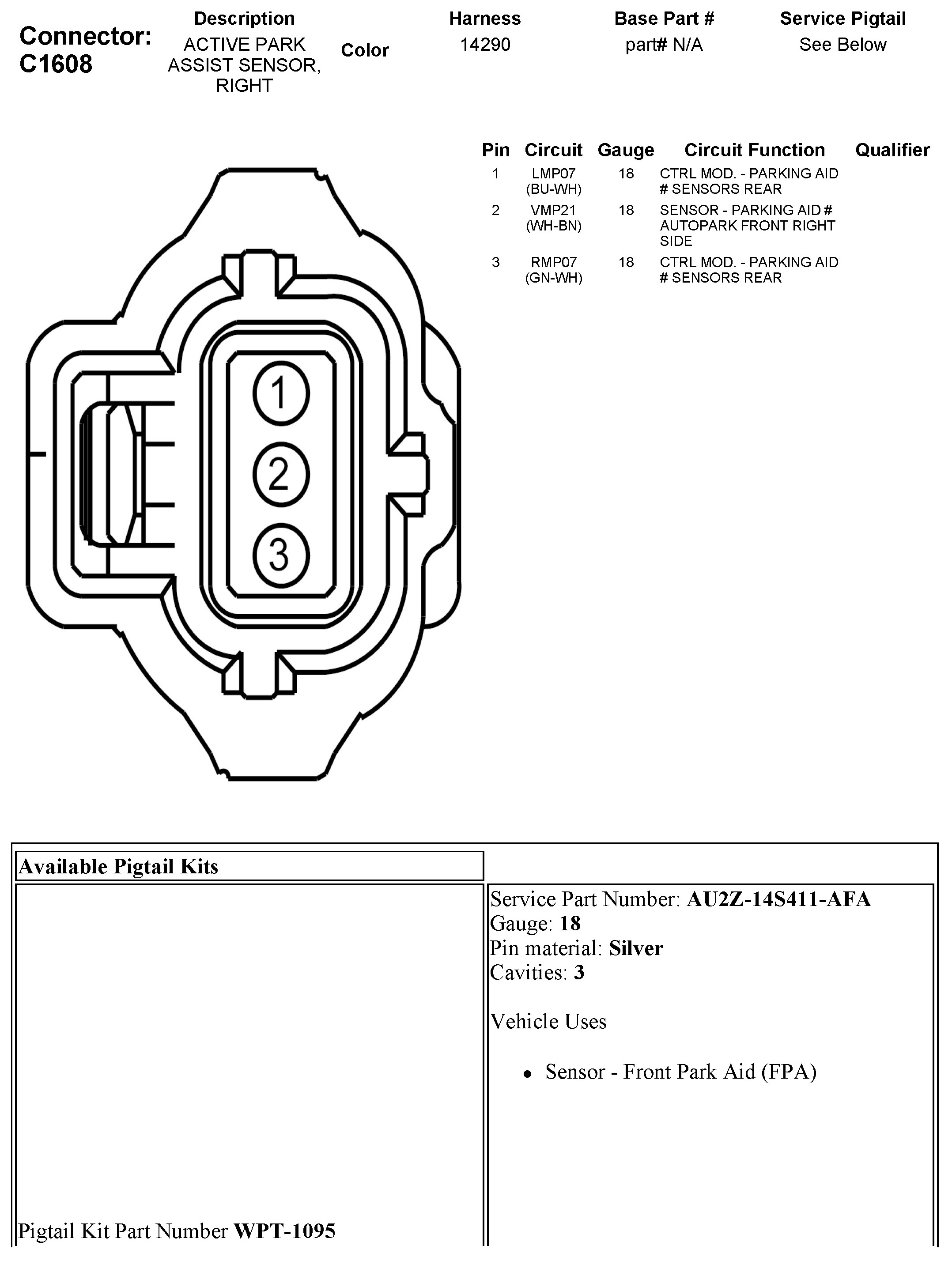

C1608 Active Park Assist Sensor, Right
C1608 Active Park Assist Sensor, Right
