Home
>>
Ford Truck
>>
2012
>>
Expedition 4WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>

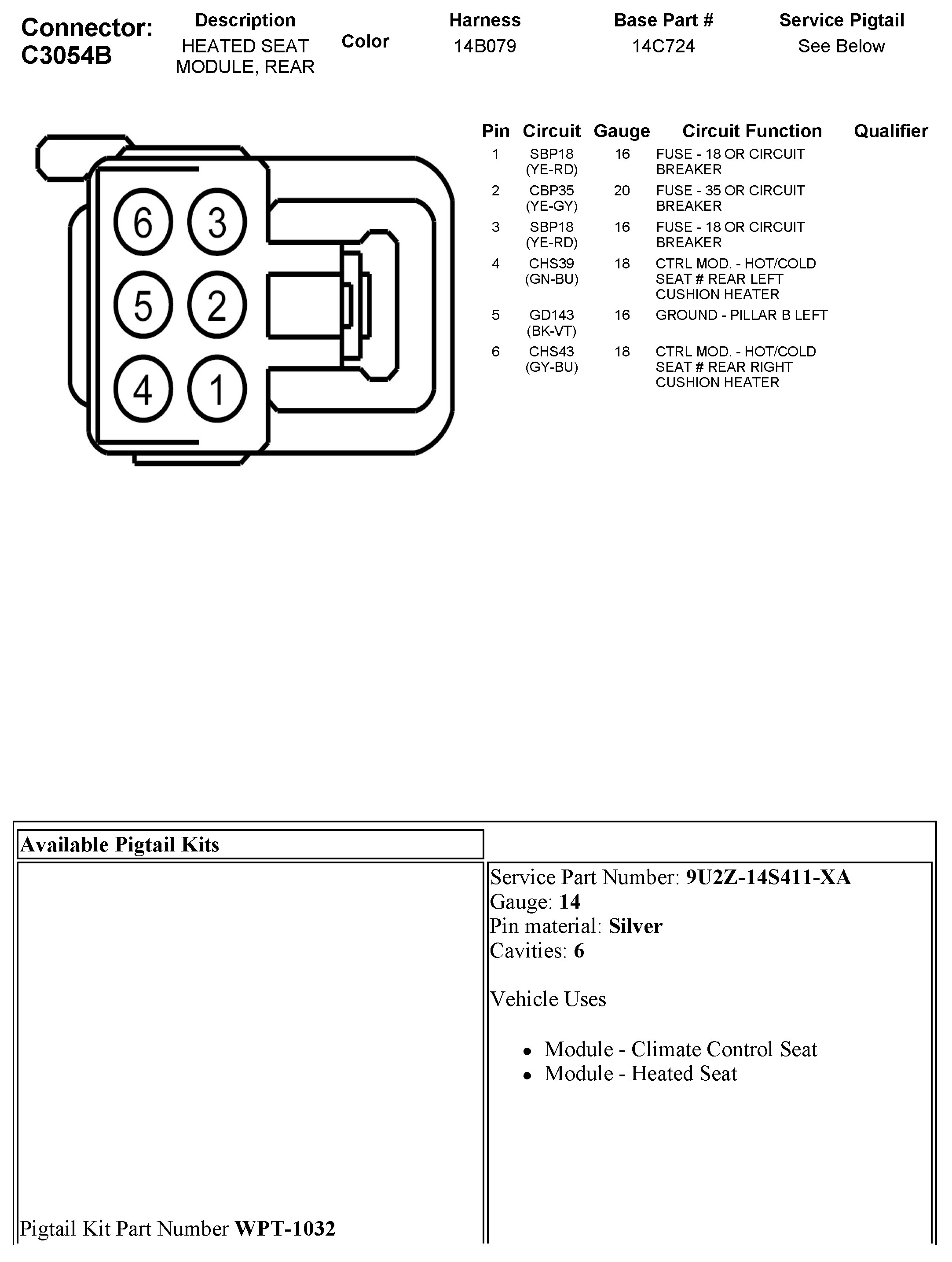

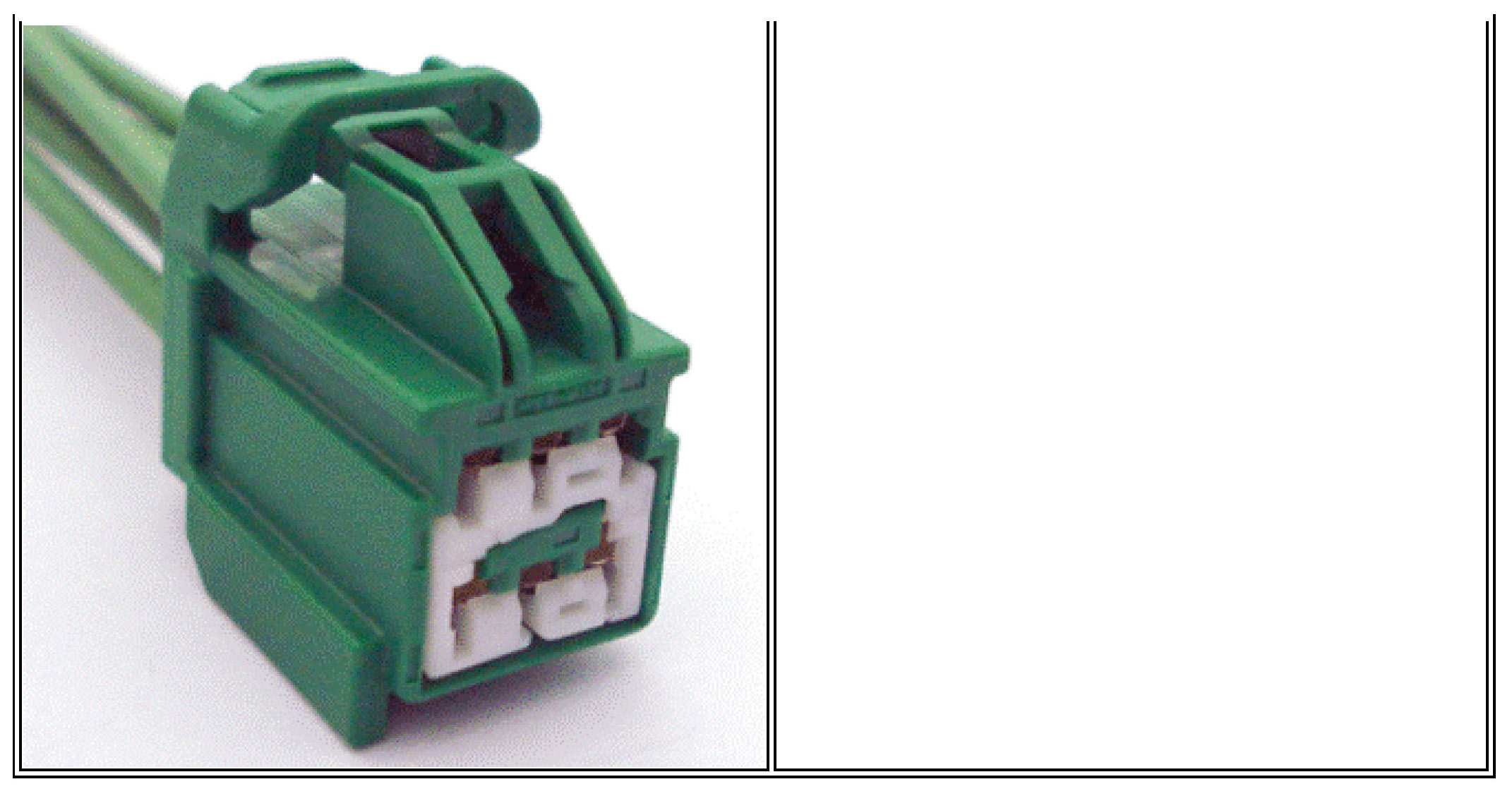

C3054B Heated Seat Module, Rear
C3054B Heated Seat Module, Rear
