Ford Truck
>>
2012
>>
Expedition 4WD V8-5.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>

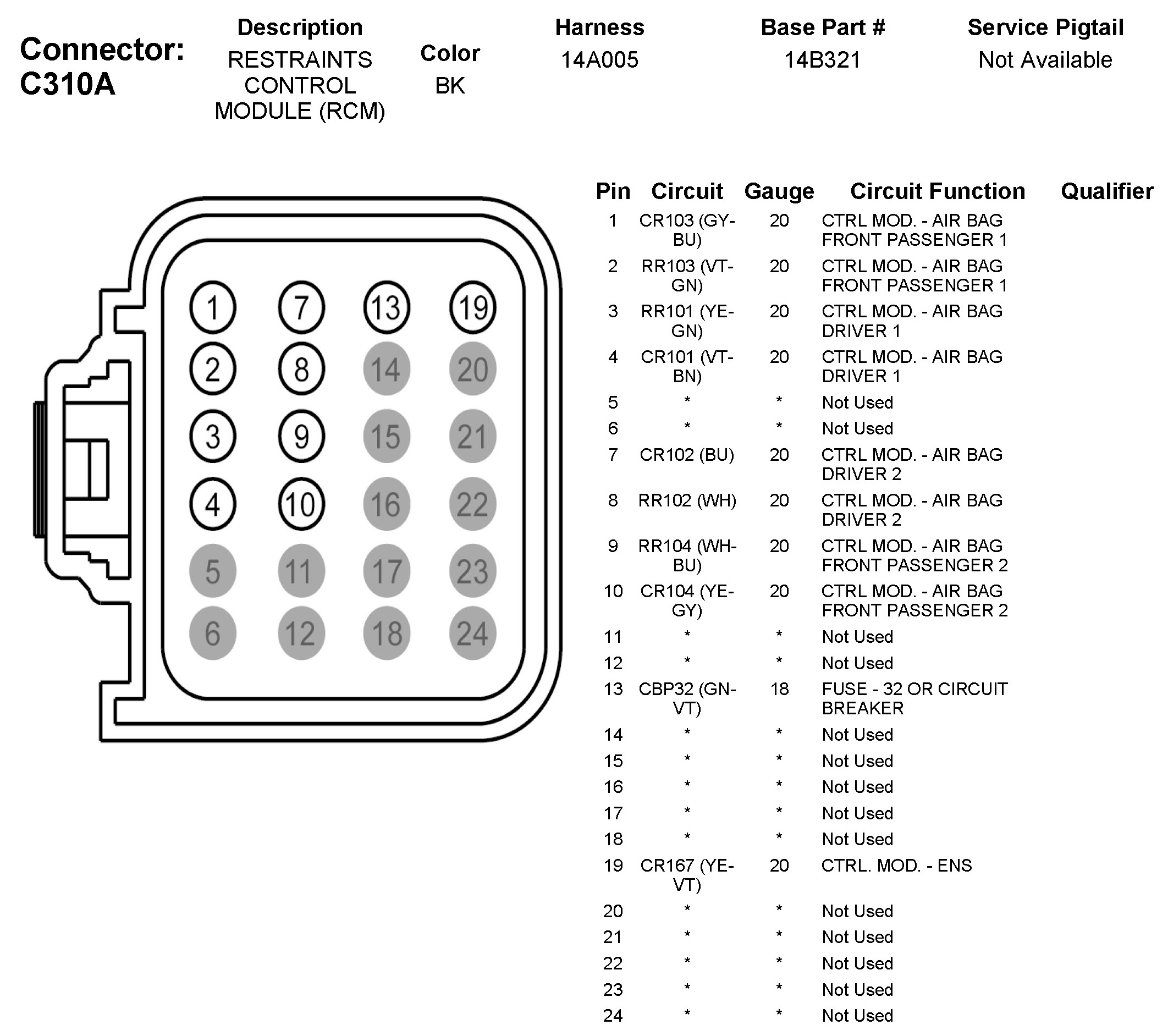

C310A Restraints Control Module (RCM)
C310A Restraints Control Module (RCM)
