Transmission Cooling

Transmission Cooling

The transmission fluid cooling system consists of:

- transmission fluid cooler inlet and outlet tubes.

- an in-tank transmission fluid cooler inlet tube.

- a non-repairable in-tank transmission fluid cooler.

- an auxiliary transmission fluid cooler inlet tube (HD).

- an auxiliary transmission fluid cooler (HD).

- an auxiliary transmission fluid cooler outlet tube (HD).

The transmission fluid flows from the transmission to the in-tank transmission fluid cooler, to the auxiliary transmission fluid cooler and returns to the transmission.

For Transmission Fluid Cooler Backflushing and Cleaning, refer to Automatic Transmission/Transaxle &/or Transmission Control Systems.

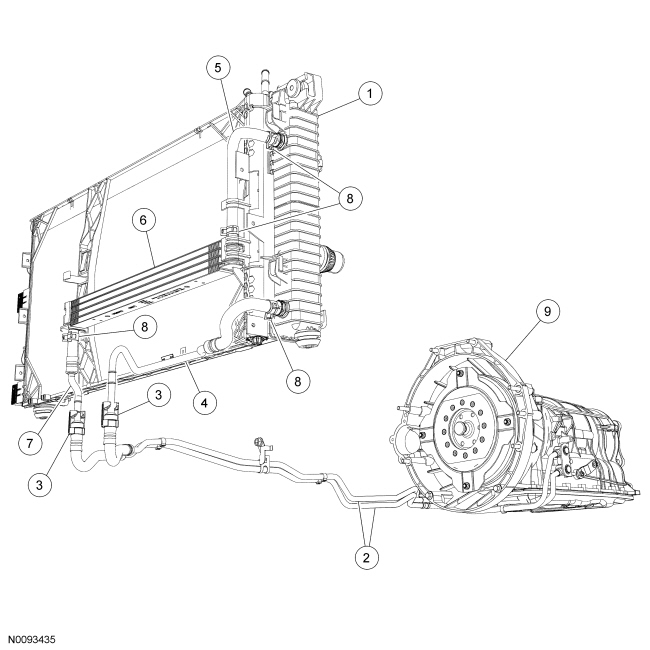

6R80 HD with Towing Package

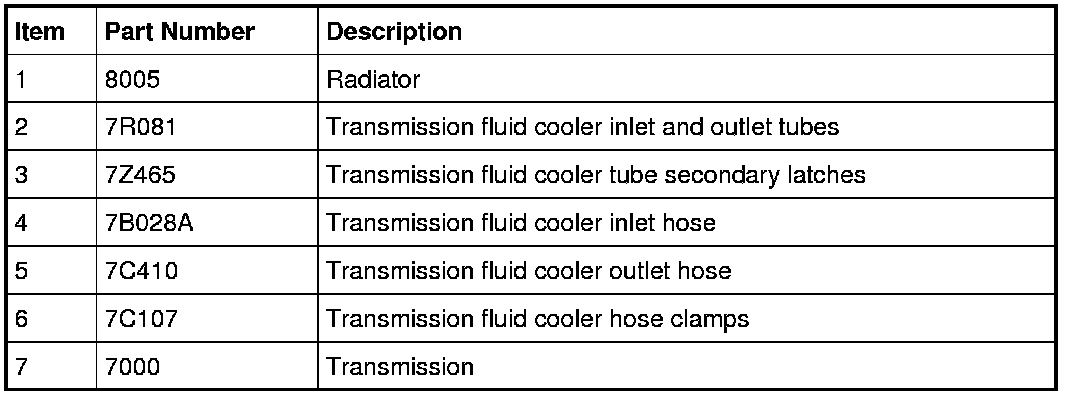

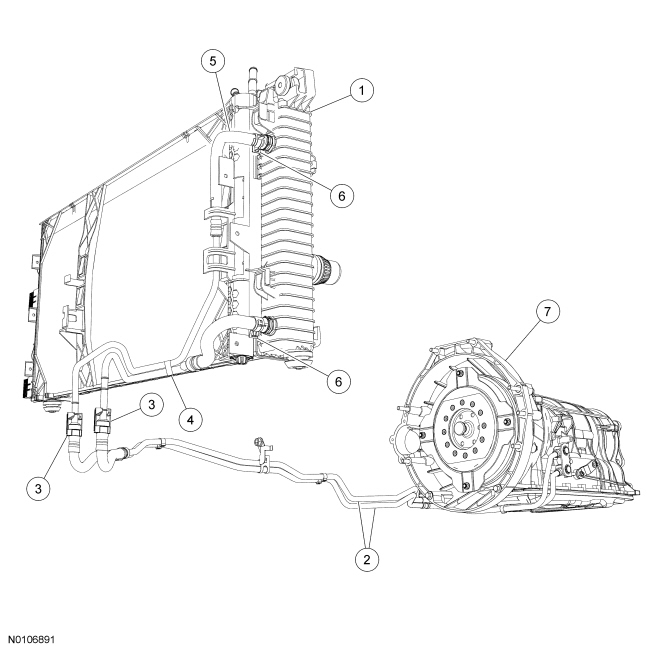

6R80 Base Package
