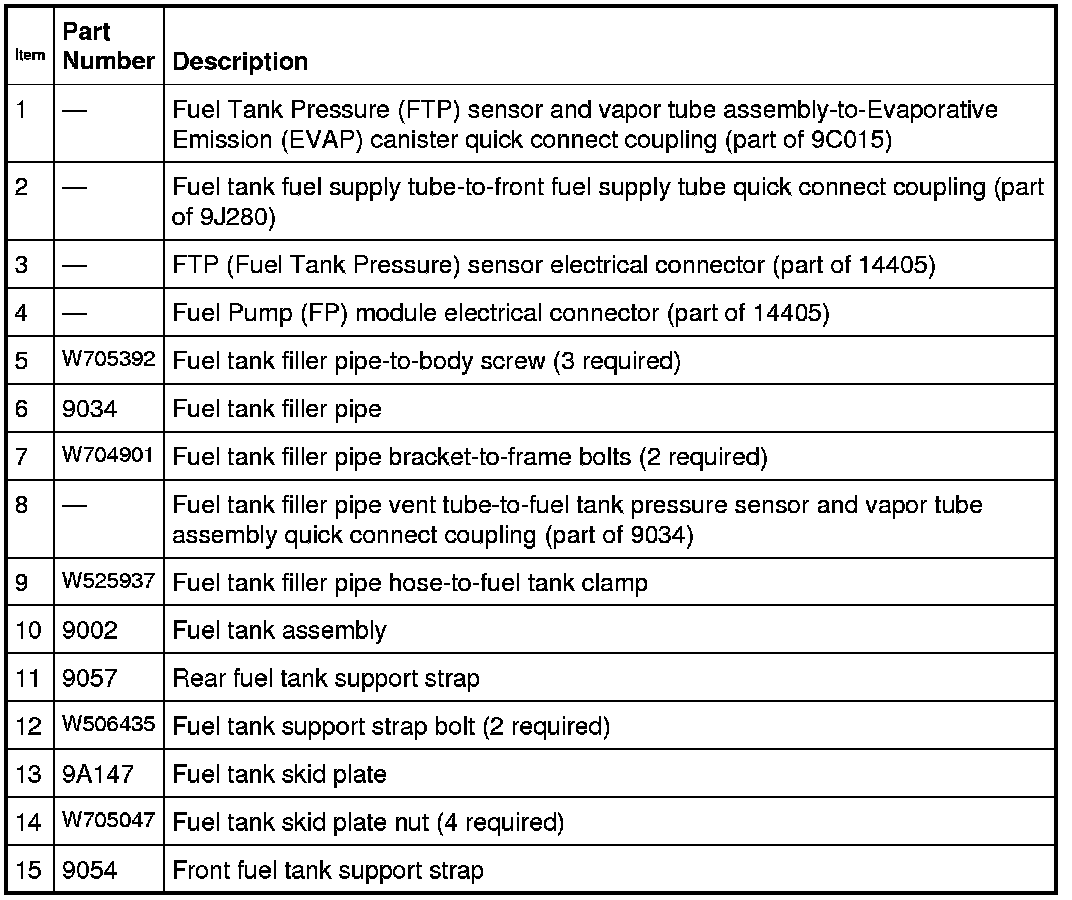

Fuel Tank and Filler Pipe - Exploded View
Fuel Tank and Filler Pipe - Exploded View
Fuel Tank
and Filler Pipe - Exploded View

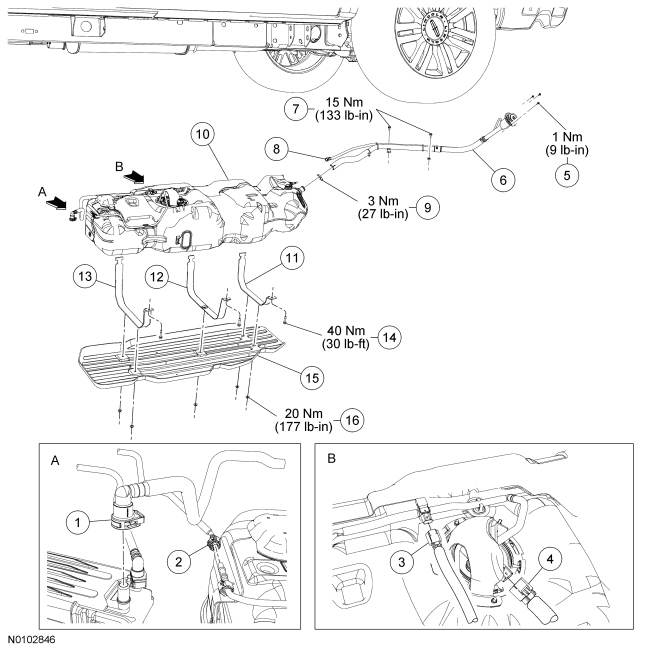

106L (28 Gal)
Fuel Tank

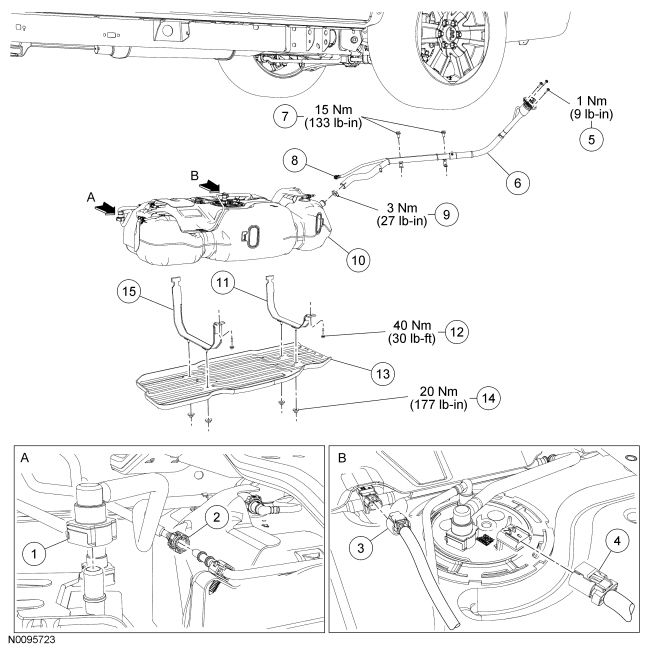

127L (33.5 Gal)
Fuel Tank
