Air Temperature Sensor ( Ambient / Intake )
>>
Diagrams
>>

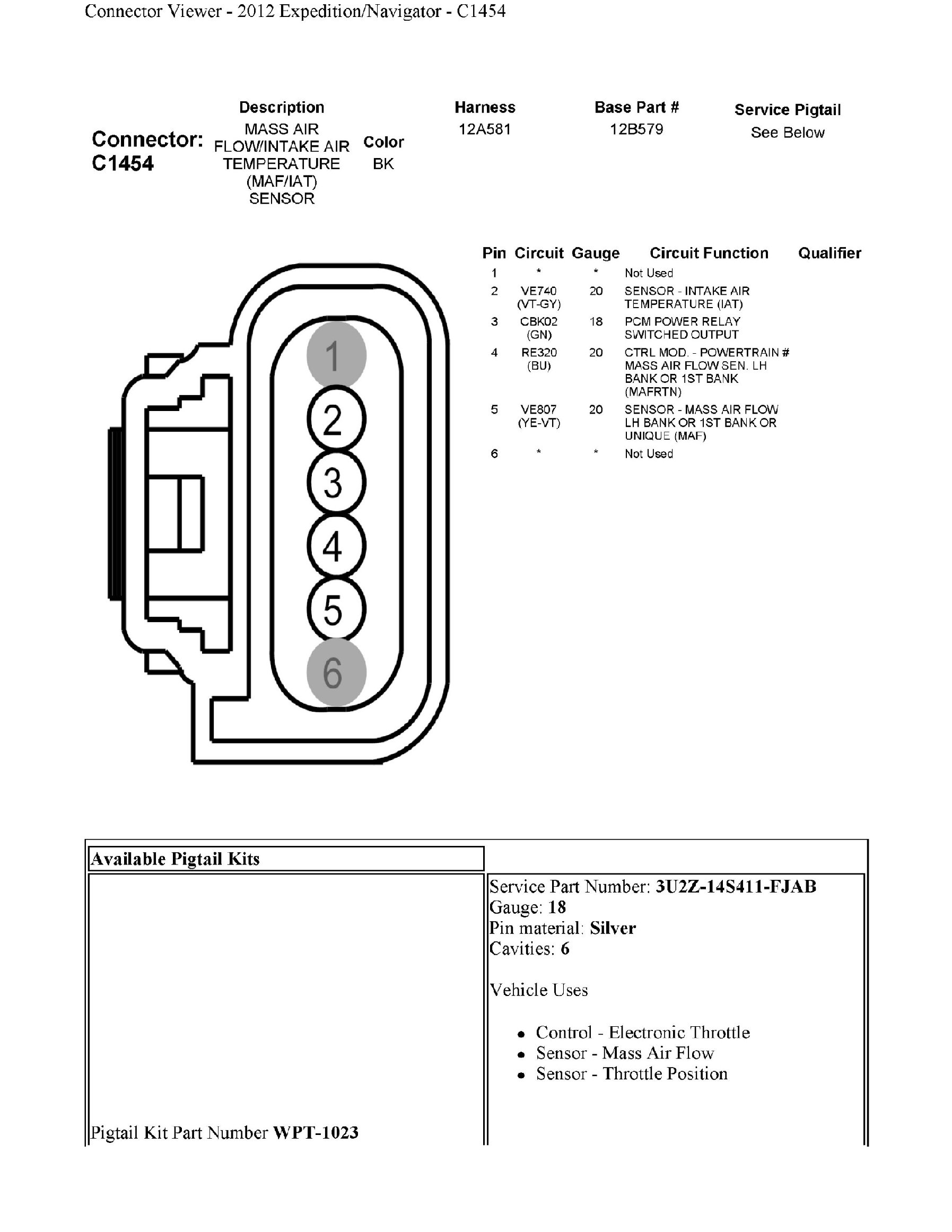

C1454 Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor

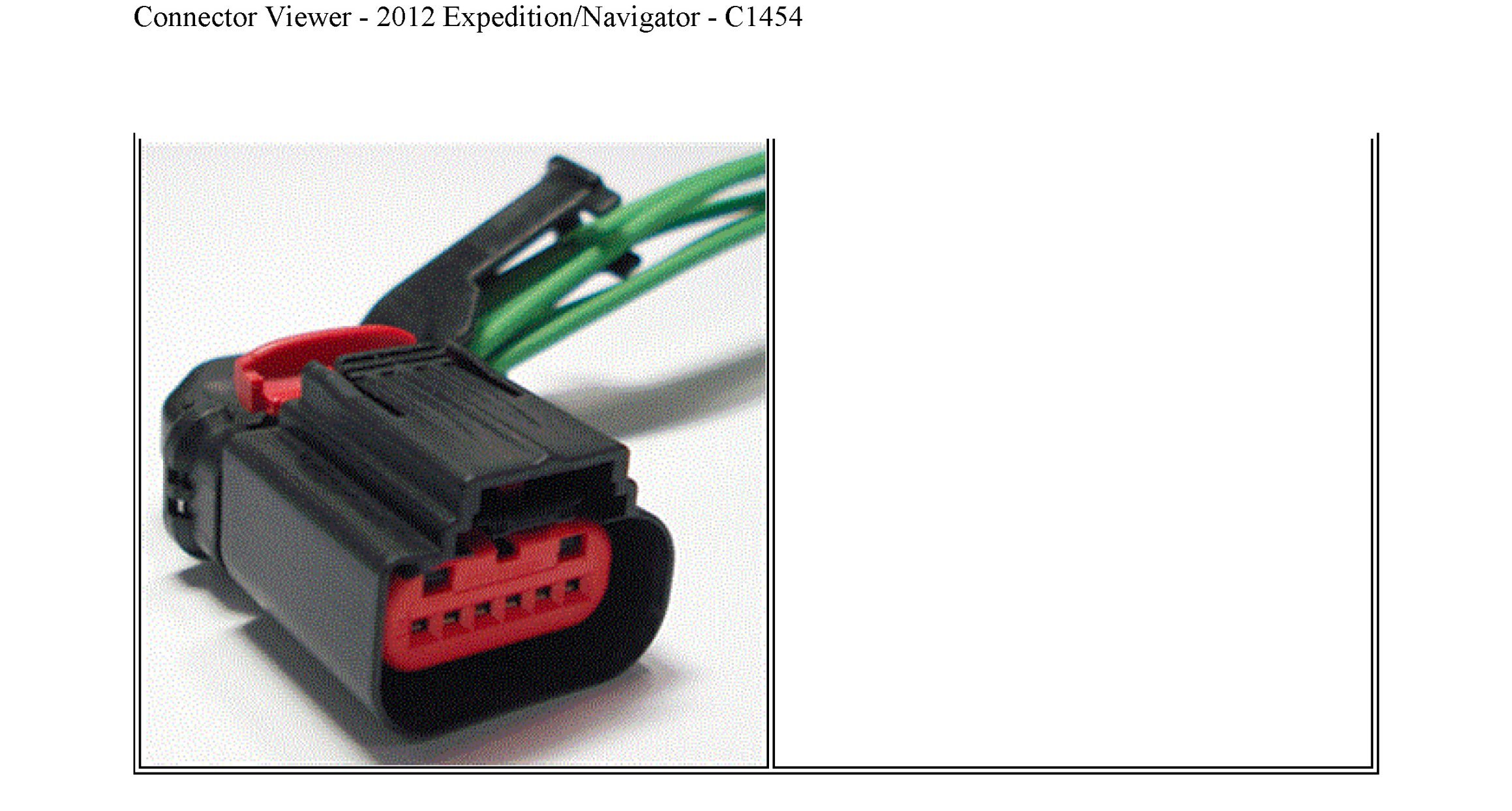

C1454 Mass Air Flow/Intake Air Temperature (MAF/IAT) Sensor
