Removal and Replacement

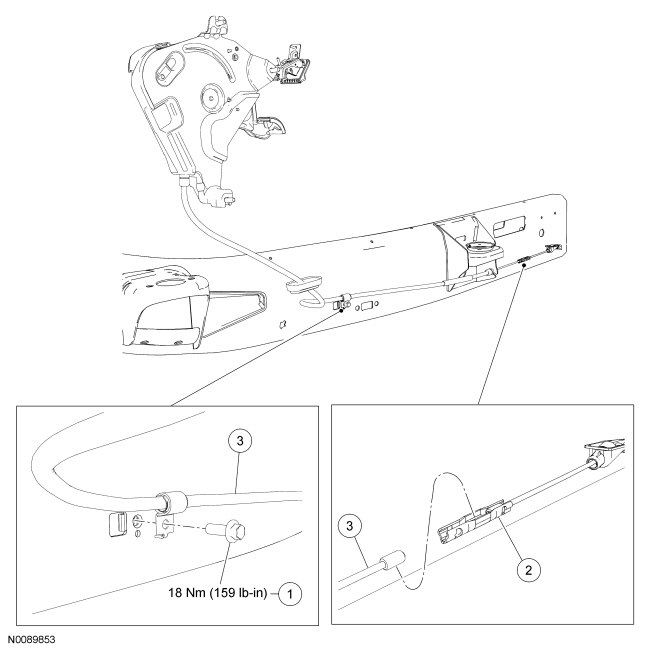

Parking Brake Cable - Front









Removal and Installation

1. Remove the parking brake control. For additional information, refer to Parking Brake Control .

2. With the vehicle in NEUTRAL, position it on a hoist.

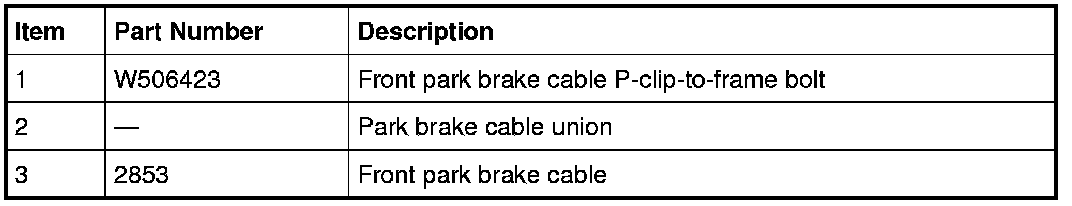

3. Remove the front park brake cable P-clip-to-frame bolt.
- To install, tighten to 18 Nm (159 lb-in).


4. Remove the front parking brake cable and conduit.
- Pry the rubber seal from the front floor pan.

- Compress the retainer and release the conduit from the bracket.

- Remove the front cable and conduit from the cable union.


5. To install, reverse the removal procedure.
