Clutch Pedal Assembly: Service and Repair

Clutch Pedal

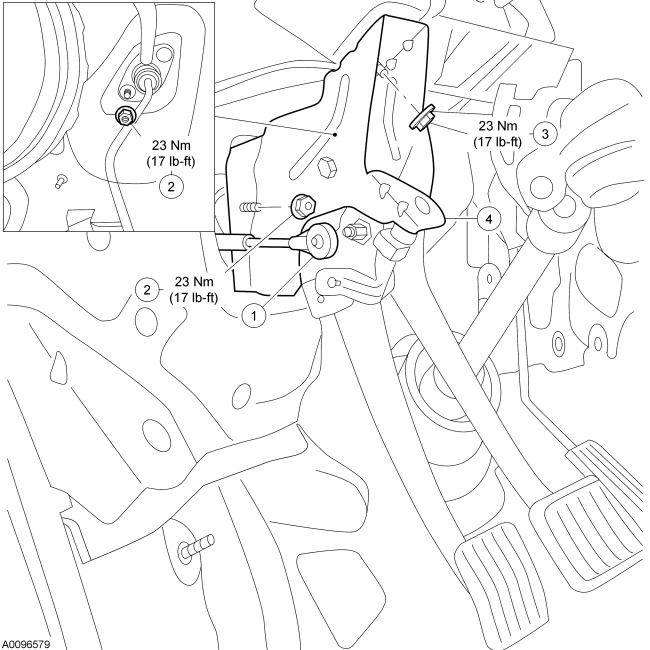

Removal and Installation

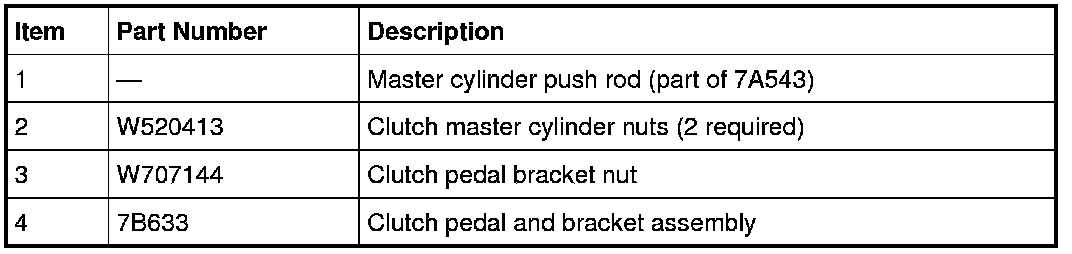

1. Disconnect the master cylinder push rod.

2. Remove the 2 clutch master cylinder nuts.
- To install, tighten to 23 Nm (17 lb-ft).


3. Remove the clutch pedal and bracket assembly nut.
- To install, tighten to 23 Nm (17 lb-ft).


4. Remove the clutch pedal and bracket assembly.

5. To install, reverse the removal procedure.
