All Others

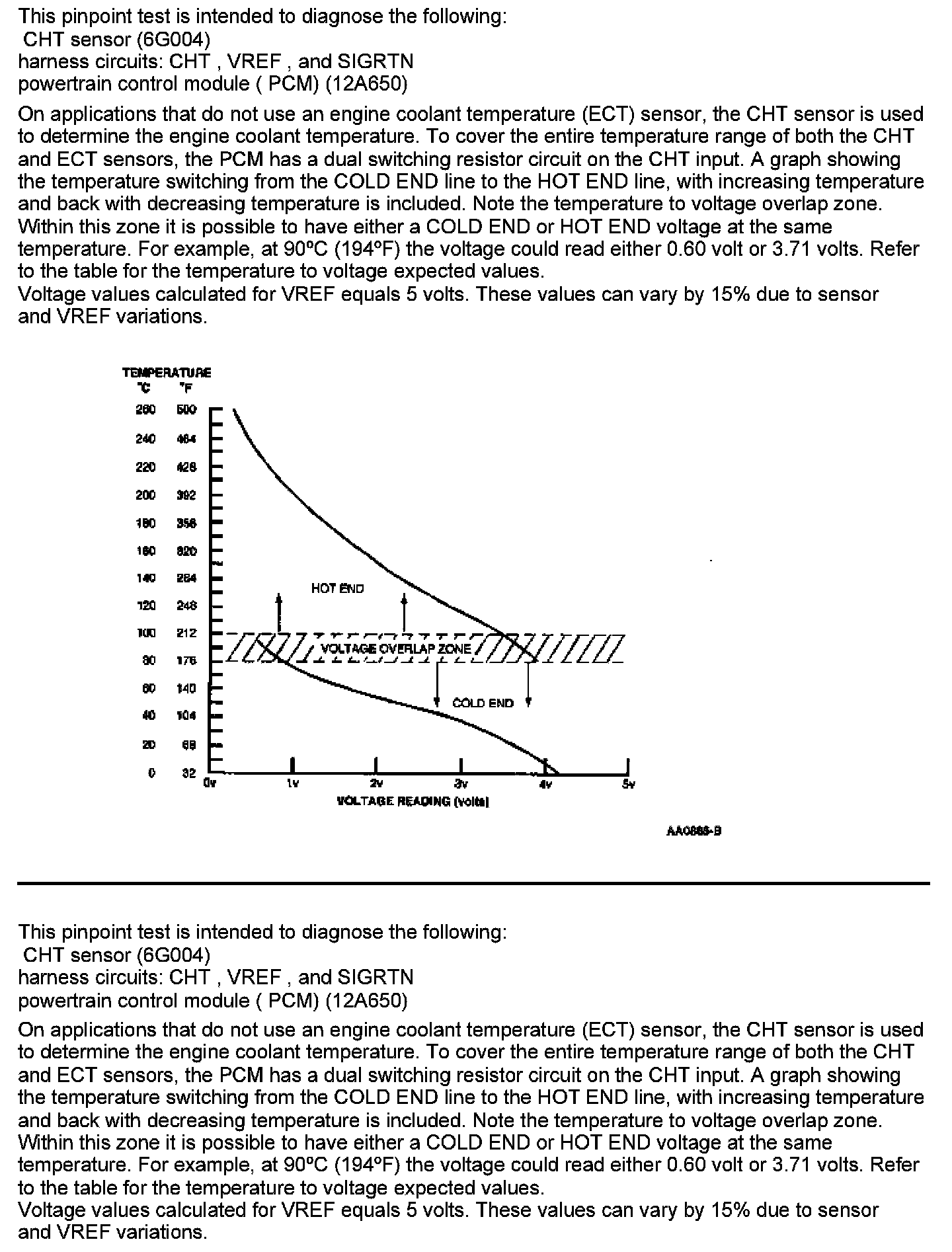

Cylinder Head Temperature (CHT) Sensor - All Others

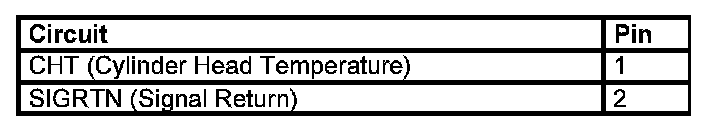

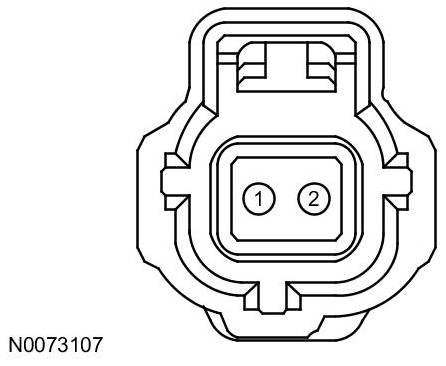

Cylinder Head Temperature (CHT) Sensor Connector





Harness Side
