Ford Truck
>>
2012
>>
Escape 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Courtesy Lamp
>>
System Diagram
>>

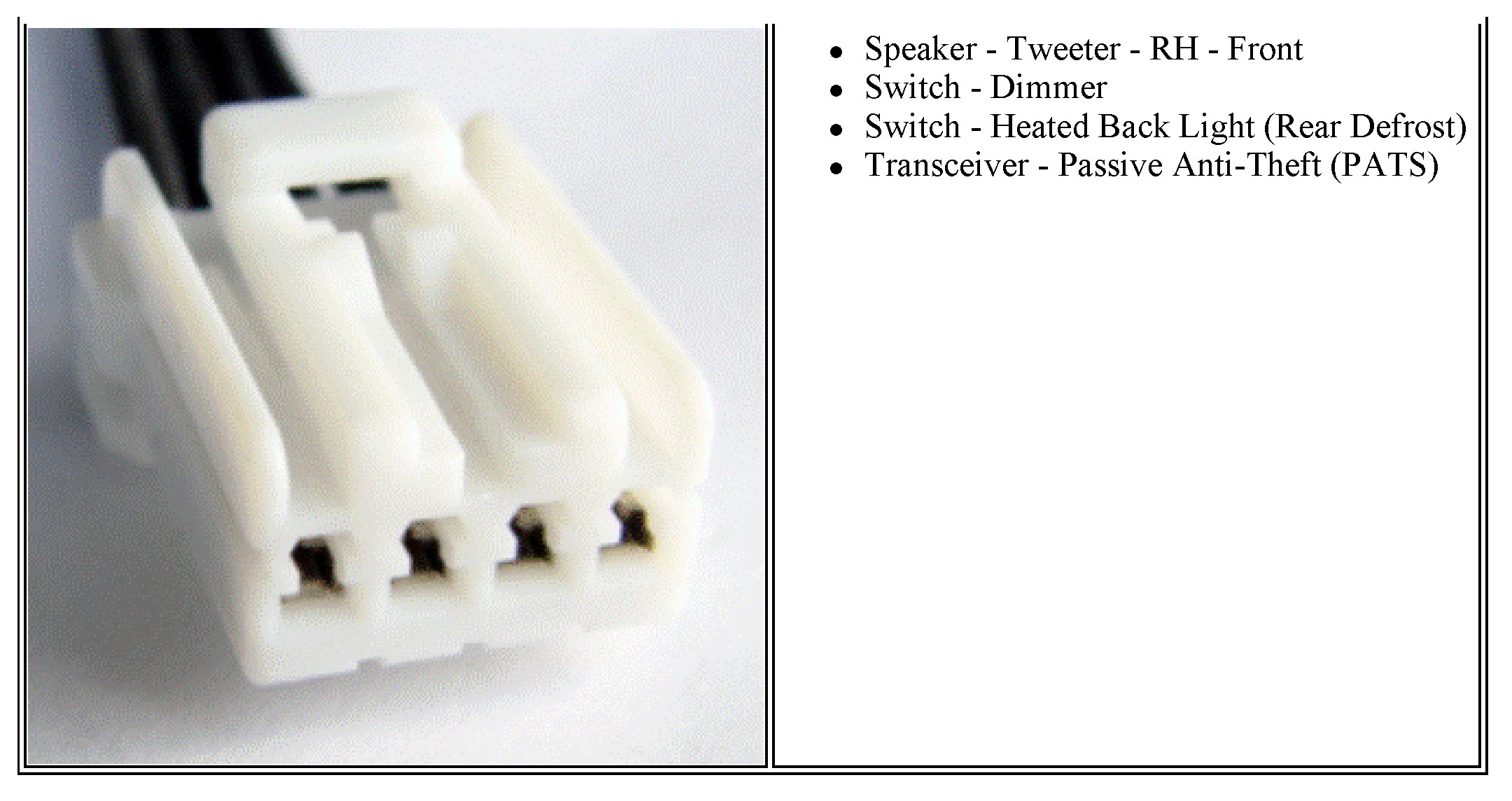

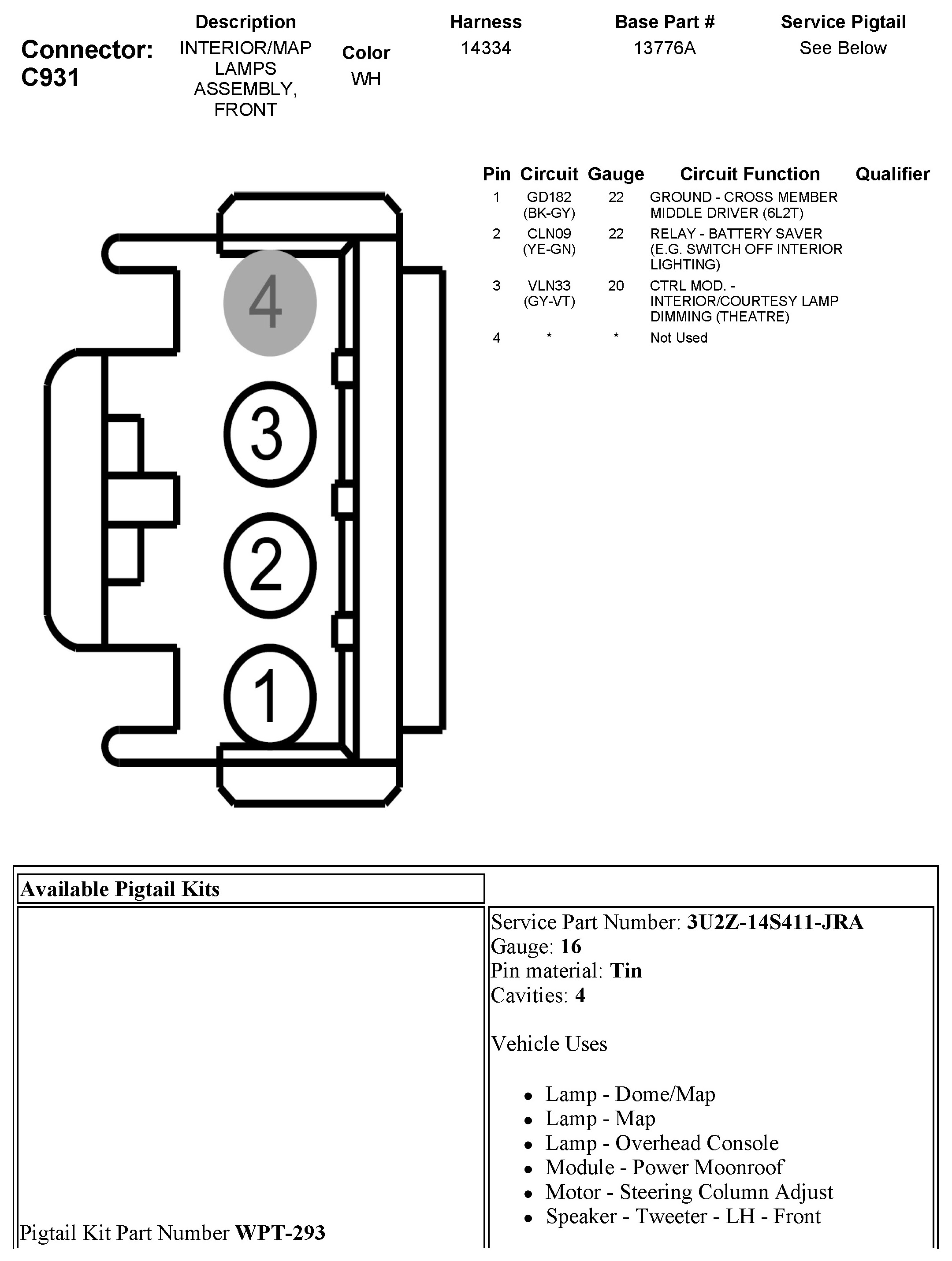

C931 Interior/MAP Lamps Assembly, Front
C931 Interior/MAP Lamps Assembly, Front
