Ford Truck
>>
2012
>>
Escape 2WD L4-2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>

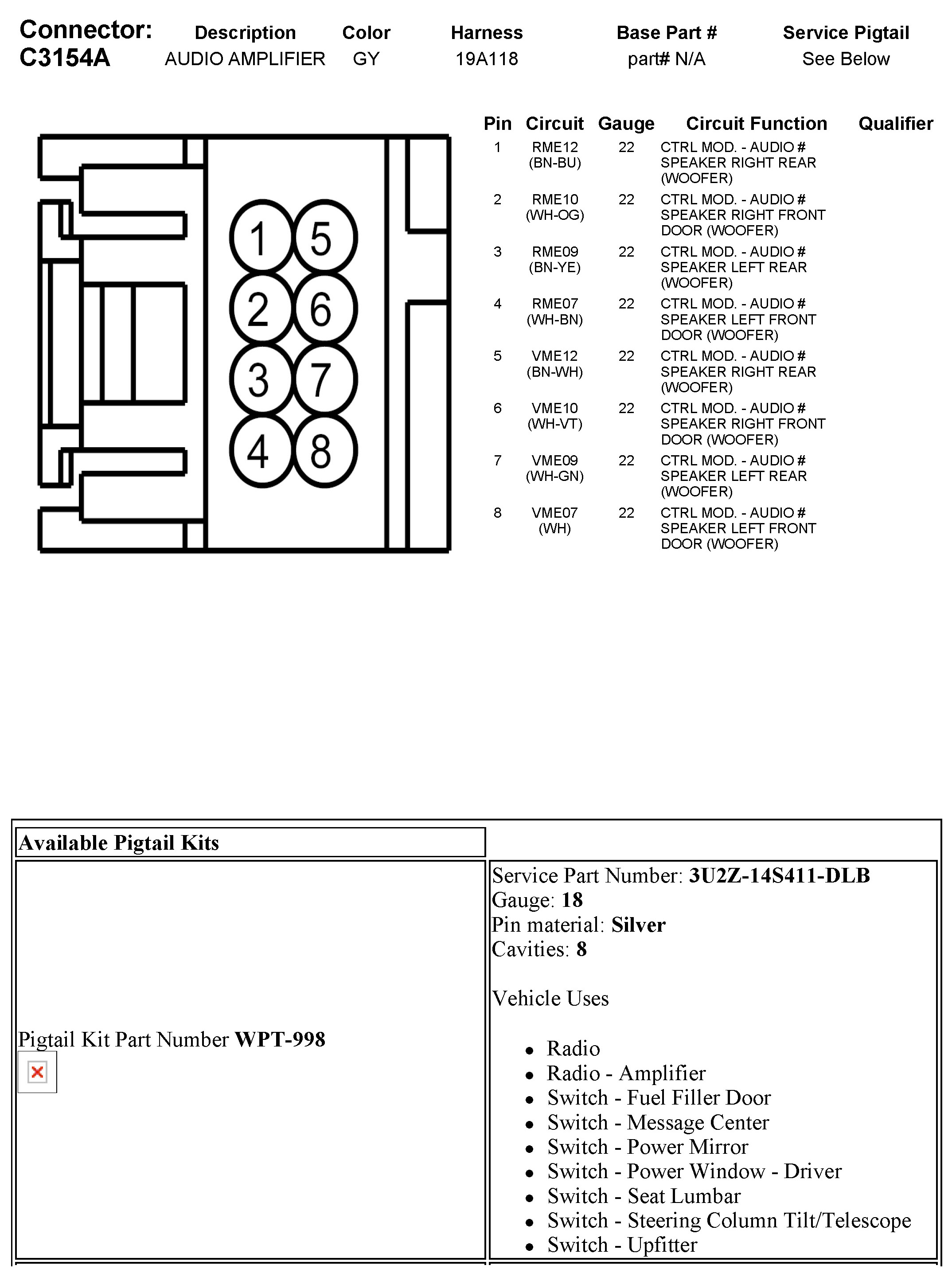

C3154A Audio Amplifier
C3154A Audio Amplifier
