Temperature Control Valve - Transmission Fluid Warmer

Temperature Control Valve - Transmission Fluid Warmer

Removal and Installation

1. Drain the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding Service and Repair.

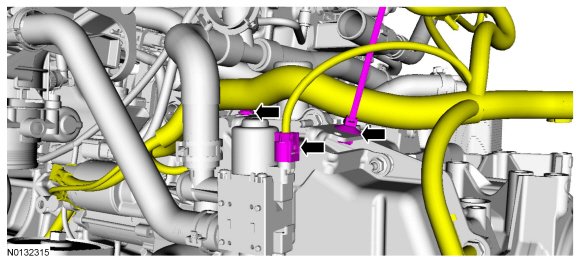

2. Disconnect the temperature control valve electrical connector and detach the 2 wiring harness retainers from the temperature control valve bracket.

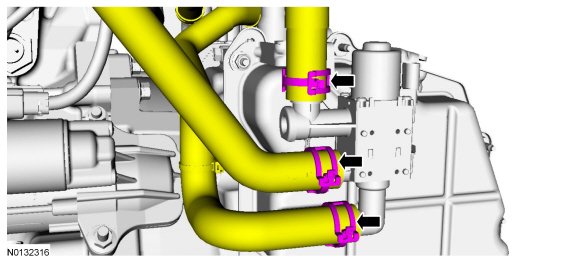

3. Release the 3 clamps and detach the 3 coolant hoses from the temperature control valve.

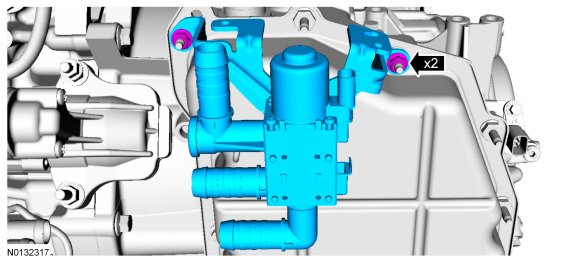

4. Remove the 2 nuts and the temperature control valve.
- To install, tighten to 9 Nm (80 lb-in).






5. To install, reverse the removal procedure.

6. Fill and bleed the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding Service and Repair.
