Power Steering Pump: Service and Repair

Power Steering Pump - 2.0L GTDI

Removal

NOTICE: While repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result.

NOTE: Removal steps in this procedure may contain installation details.

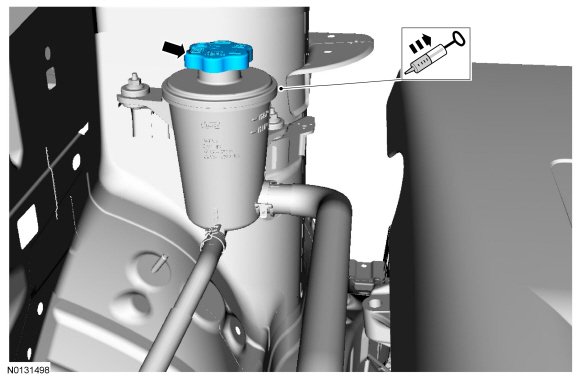

1. Extract the fluid with a syringe.

4. Discard the specified component. Follow local disposal regulations.
- To install, tighten the new bolt to 26 Nm (19 lb-ft).

5.
- To install, tighten to 25 Nm (18 lb-ft).

Installation

1. To install, reverse the removal procedure.
- Fill the power steering system.
