Oil Pick Up/Strainer: Service and Repair

Oil Pump Screen and Pickup Tube

Removal and Installation

NOTE: Removal steps in this procedure may contain installation details.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the oil pan. For additional information, refer to Oil Pan Service and Repair.

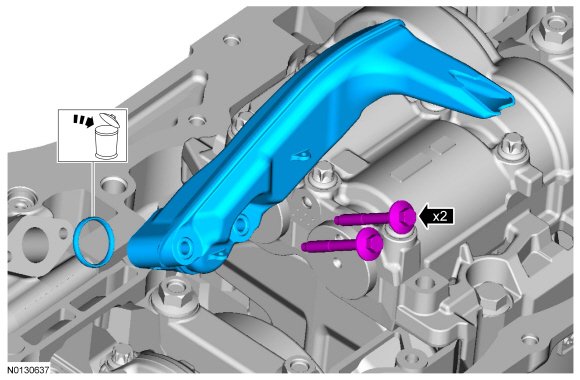

3. NOTE: A new gasket must be installed.
Remove the 2 bolts and the oil pump screen and pickup tube.

- Discard the gasket.

- To install, tighten to 10 Nm (89 lb-In).






4. To install, reverse the removal procedure.
