Removal and Replacement

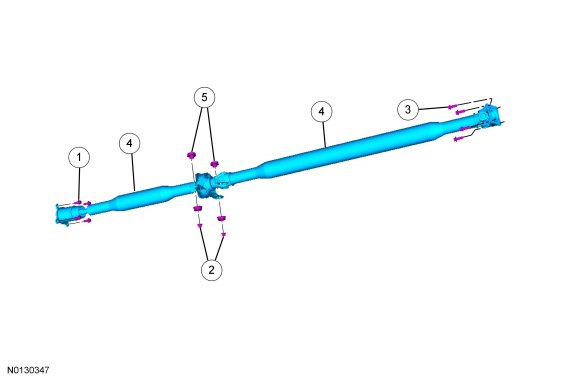

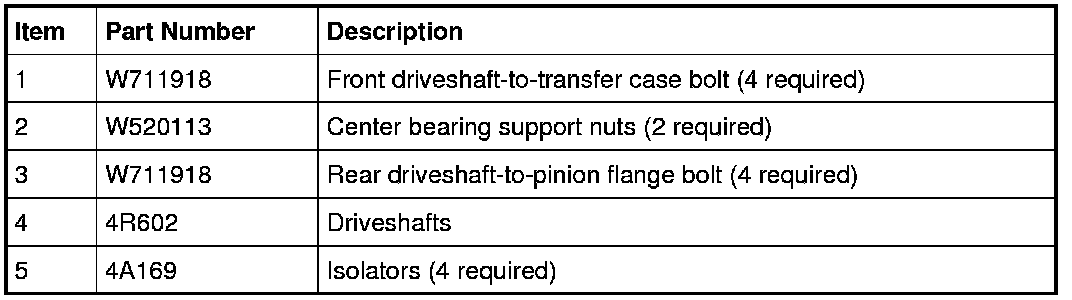

Driveshaft









Removal and Installation

NOTE: Index-mark both driveshaft flanges.

1. With the vehicle in NEUTRAL, position it on a hoist.

2. NOTICE: Do not reuse the Constant Velocity (CV) joint bolts. Install new bolts or damage to the vehicle may occur.

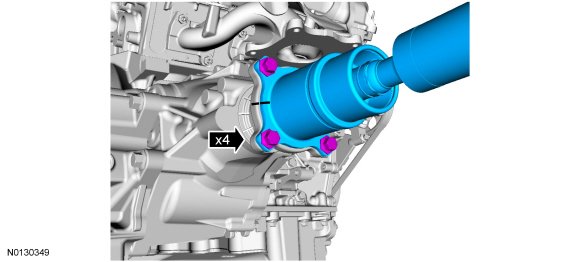

Remove and discard the 4 front driveshaft-to-transfer case bolts.
- To install, tighten to 70 Nm (52 lb-ft).






3. NOTICE: Do not reuse the bolts for the rear U-joint flange or damage to the component may occur. Install new bolts.

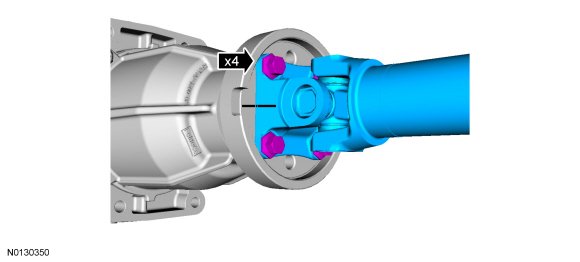

Remove and discard the 4 rear driveshaft-to-pinion flange bolts.
- To install, tighten to 70 Nm (52 lb-ft).

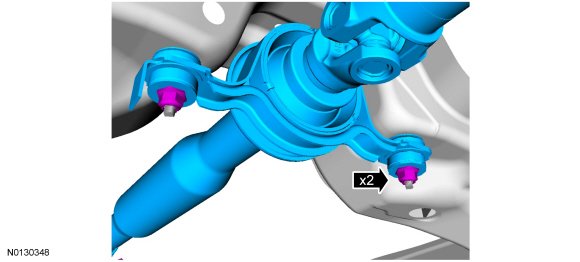

4. With the help of an assistant, remove the 2 center bearing support nuts and the driveshaft.
- To install, tighten to 40 Nm (30 lb-ft).






5. NOTE: If a driveshaft is installed and driveshaft vibration is encountered after installation, index the driveshaft.
To install, reverse the removal procedure.
