Power Steering Fluid Reservoir: Service and Repair

Power Steering Fluid Reservoir

Removal

NOTICE: When repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result.

NOTE: Removal steps in this procedure may contain installation details.

1. Extract the fluid with a syringe.

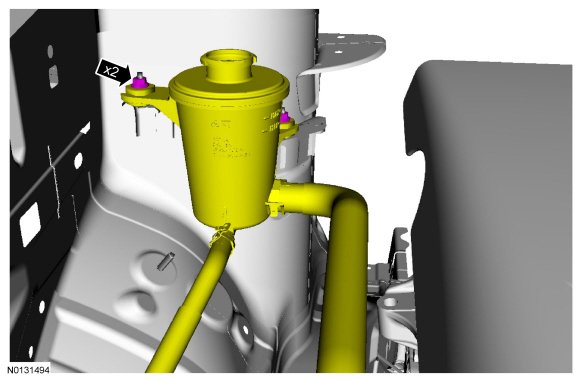

2.
- To install, tighten to 8 Nm (71 lb-in).

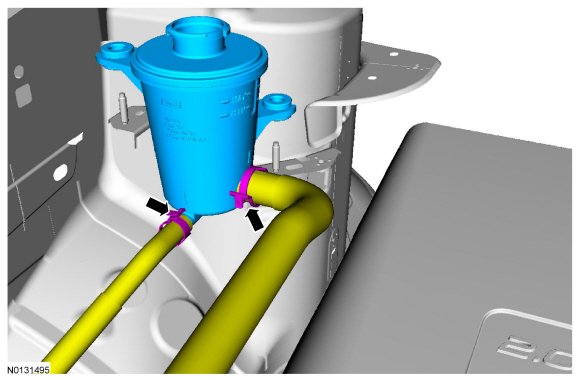

3.





Installation

1. To install, reverse the removal procedure.
- Fill the power steering system.
