Positive Crankcase Ventilation (PCV) Valve

Positive Crankcase Ventilation (PCV) Valve













Removal and Installation

1. Remove the upper intake manifold.

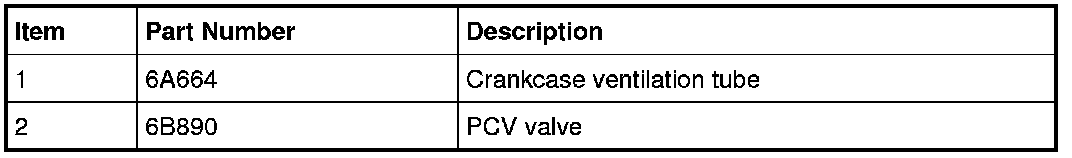

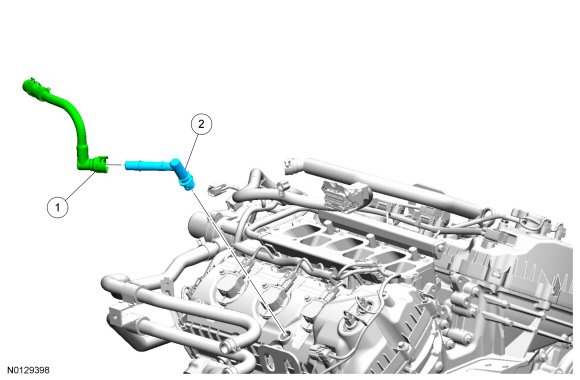

2. Disconnect the crankcase ventilation tube-to-PCV valve quick connect coupling.

3. NOTICE: A new positive crankcase ventilation (PCV) valve must be installed if removed from the valve cover. During removal, damage will occur to the locking mechanism on the PCV valve.

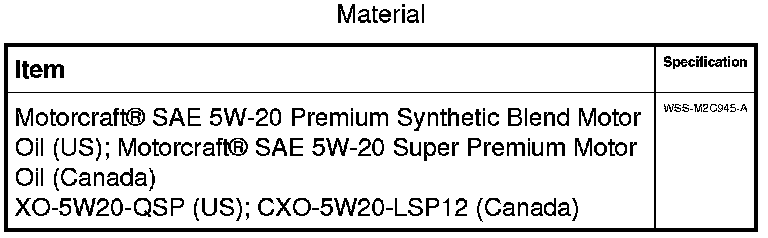

NOTE: To install, apply clean engine oil to the O-ring seal.

Rotate the PCV valve counterclockwise and remove it from the valve cover.
- Discard the PCV valve.


4. To install, reverse the removal procedure.
- Install a new PCV valve.
